Single Bipolar Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KSC2383OBUTRANS NPN 160V 1A TO-92-3 |
2,451 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body | Bulk | Obsolete | NPN | 1 A | 160 V | 1.5V @ 50mA, 500mA | 1µA (ICBO) | 100 @ 200mA, 5V | 900 mW | 100MHz | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
KSC2383YBUTRANS NPN 160V 1A TO-92-3 |
4,008 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body | Bulk | Obsolete | NPN | 1 A | 160 V | 1.5V @ 50mA, 500mA | 1µA (ICBO) | 160 @ 200mA, 5V | 900 mW | 100MHz | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
KSA1013OBUTRANS PNP 160V 1A TO-92-3 |
2,687 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body | Bulk | Obsolete | PNP | 1 A | 160 V | 1.5V @ 50mA, 500mA | 1µA (ICBO) | 100 @ 200mA, 5V | 900 mW | 50MHz | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
KSA1625KTATRANS PNP 400V 0.5A TO-92-3 |
7,412 |
|
- |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | PNP | 500 mA | 400 V | 1V @ 10mA, 100mA | 1µA (ICBO) | 100 @ 50mA, 5V | 750 mW | 10MHz | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
FJN3303BUTRANS NPN 400V 1.5A TO-92-3 |
2,998 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | NPN | 1.5 A | 400 V | 3V @ 500mA, 1.5A | 10µA (ICBO) | 14 @ 500mA, 2V | 1.1 W | 4MHz | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
FJN3303TATRANS NPN 400V 1.5A TO-92-3 |
6,758 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Cut Tape (CT) | Obsolete | NPN | 1.5 A | 400 V | 3V @ 500mA, 1.5A | 10µA (ICBO) | 14 @ 500mA, 2V | 1.1 W | 4MHz | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
KSB798YTFTRANS PNP 25V 1A SOT-89-3 |
6,793 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | PNP | 1 A | 25 V | 400mV @ 100mA, 1A | 100nA (ICBO) | 135 @ 100mA, 1V | 2 W | 110MHz | 150°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
TN2219ATRANS NPN 40V 1A TO-226-3 |
3,693 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | NPN | 1 A | 40 V | 1V @ 50mA, 500mA | 10nA (ICBO) | 100 @ 150mA, 10V | 1 W | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-226-3 |
|
|
KSB798GTFTRANS PNP 25V 1A SOT-89-3 |
4,087 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | PNP | 1 A | 25 V | 400mV @ 100mA, 1A | 100nA (ICBO) | 200 @ 100mA, 1V | 2 W | 110MHz | 150°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
KSC2883YTFTRANS NPN 30V 1.5A SOT-89-3 |
7,357 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | NPN | 1.5 A | 30 V | 2V @ 30mA, 1.5A | 100nA (ICBO) | 160 @ 500mA, 2V | 1 W | 120MHz | 150°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
KSC2883OTFTRANS NPN 30V 1.5A SOT-89-3 |
6,524 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | NPN | 1.5 A | 30 V | 2V @ 30mA, 1.5A | 100nA (ICBO) | 100 @ 500mA, 2V | 1 W | 120MHz | 150°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
TN2907ATRANS PNP 60V 0.8A TO-226-3 |
8,550 |
|
- |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | PNP | 800 mA | 60 V | 1.6V @ 50mA, 500mA | 10nA (ICBO) | 100 @ 150mA, 10V | 625 mW | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-226-3 |
|

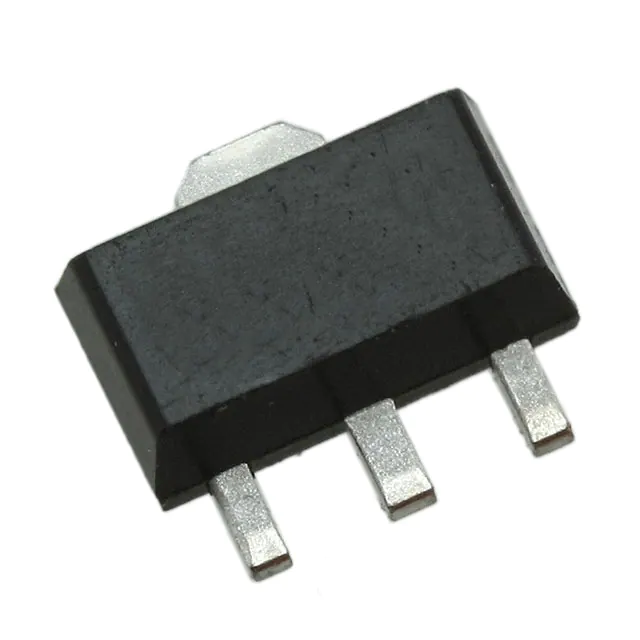

KSB1121TTFTRANS PNP 25V 2A SOT-89-3 |
5,178 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | PNP | 2 A | 25 V | 600mV @ 75mA, 1.5A | 100nA (ICBO) | 200 @ 100mA, 2V | 1.3 W | 150MHz | 150°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
KSB1121STFTRANS PNP 25V 2A SOT-89-3 |
6,241 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | PNP | 2 A | 25 V | 600mV @ 75mA, 1.5A | 100nA (ICBO) | 140 @ 100mA, 2V | 1.3 W | 150MHz | 150°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
FJC1963STFTRANS NPN 30V 3A SOT-89-3 |
5,672 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | NPN | 3 A | 30 V | 450mV @ 150mA, 1.5A | 500nA | 280 @ 500mA, 2V | 500 mW | - | 150°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
FJC1963QTFTRANS NPN 30V 3A SOT-89-3 |
7,636 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | NPN | 3 A | 30 V | 450mV @ 150mA, 1.5A | 500nA | 120 @ 500mA, 2V | 500 mW | - | 150°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
FJC1963RTFTRANS NPN 30V 3A SOT-89-3 |
3,163 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | NPN | 3 A | 30 V | 450mV @ 150mA, 1.5A | 500nA | 180 @ 500mA, 2V | 500 mW | - | 150°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
KSC2881OTFTRANS NPN 120V 0.8A SOT-89-3 |
6,911 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | NPN | 800 mA | 120 V | 1V @ 50mA, 500mA | 100nA (ICBO) | 80 @ 100mA, 5V | 1 W | 120MHz | 150°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
KSC2982DTFTRANS NPN 10V 2A SOT-89-3 |
7,065 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | NPN | 2 A | 10 V | 500mV @ 50mA, 2A | 100nA (ICBO) | 420 @ 500mA, 1V | 500 mW | 150MHz | 150°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
KSC2982BTFTRANS NPN 10V 2A SOT-89-3 |
4,592 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | NPN | 2 A | 10 V | 500mV @ 50mA, 2A | 100nA (ICBO) | 200 @ 500mA, 1V | 500 mW | 150MHz | 150°C (TJ) | - | - | Surface Mount | SOT-89-3 |
