Single Bipolar Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2SD1535TRANS NPN DARL 400V 7A TO220F-A1 |
5,748 |
|
Datasheet |
- | TO-220-3 Full Pack | Bulk | Obsolete | NPN - Darlington | 7 A | 400 V | 2V @ 70mA, 7A | 100µA | 500 @ 2A, 2V | 2 W | 20MHz | 150°C (TJ) | - | - | Through Hole | TO-220F-A1 |
|
|
2SD16330PTRANS NPN DARL 100V 5A TO220F-A1 |
3,243 |
|
Datasheet |
- | TO-220-3 Full Pack | Bulk | Obsolete | NPN - Darlington | 5 A | 100 V | 1.5V @ 3mA, 3A | 100µA | 5000 @ 3A, 3V | 2 W | 15MHz | 150°C (TJ) | - | - | Through Hole | TO-220F-A1 |
|

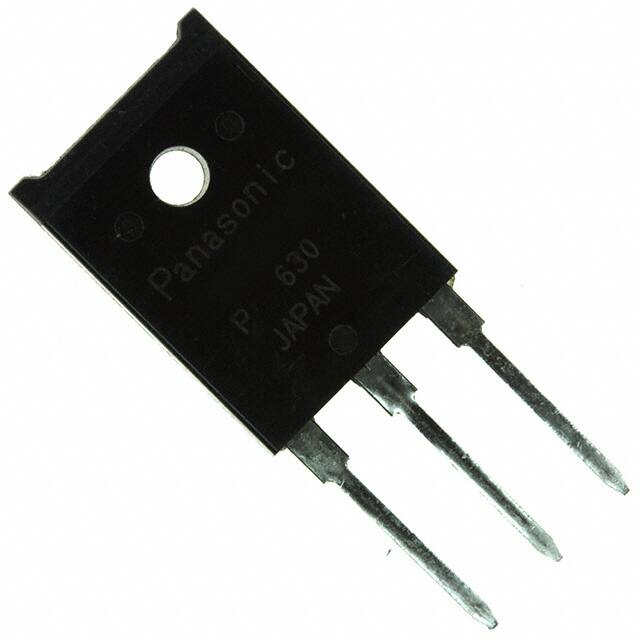

2SD17050PTRANS NPN 80V 10A TOP-3F-A1 |
4,973 |
|
Datasheet |
- | TOP-3F | Bulk | Obsolete | NPN | 10 A | 80 V | 1.5V @ 1A, 10A | 10µA (ICBO) | 130 @ 3A, 2V | 3 W | 20MHz | 150°C (TJ) | - | - | Through Hole | TOP-3F-A1 |
|
2SD18230RLTRANS NPN 40V 0.05A SMINI3-G1 |
5,138 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | NPN | 50 mA | 40 V | 200mV @ 1mA, 10mA | 1µA | 400 @ 2mA, 10V | 150 mW | 120MHz | 150°C (TJ) | - | - | Surface Mount | SMini3-G1 |
|
2SD20670RATRANS NPN DARL 100V 2A MT-2-A1 |
8,772 |
|
Datasheet |
- | 3-SIP | Tape & Box (TB) | Obsolete | NPN - Darlington | 2 A | 100 V | 1.5V @ 1mA, 1A | 100nA (ICBO) | 8000 @ 1A, 10V | 1 W | - | 150°C (TJ) | - | - | Through Hole | MT-2-A1 |
|
2SD2138APATRANS NPN DARL 80V 2A MT-4-A1 |
2,445 |
|
Datasheet |
- | 3-SIP | Tape & Box (TB) | Obsolete | NPN - Darlington | 2 A | 80 V | 2.5V @ 8mA, 2A | 100µA | 4000 @ 2A, 4V | 15 W | 20MHz | 150°C (TJ) | - | - | Through Hole | MT-4-A1 |
|
|
2SD21840RATRANS NPN 150V 1A MT-2-A1 |
7,908 |
|
Datasheet |
- | 3-SIP | Tape & Box (TB) | Obsolete | NPN | 1 A | 150 V | 300mV @ 25mA, 500mA | 100nA (ICBO) | 120 @ 100mA, 2V | 1 W | 90MHz | 150°C (TJ) | - | - | Through Hole | MT-2-A1 |
|
|
2SD225900ATRANS NPN 20V 0.7A MT-2-A1 |
6,206 |
|
Datasheet |
- | 3-SIP | Tape & Box (TB) | Obsolete | NPN | 700 mA | 20 V | 400mV @ 50mA, 500mA | 10µA | 1000 @ 150mA, 10V | 1 W | 55MHz | 150°C (TJ) | - | - | Through Hole | MT-2-A1 |
|
2SD23210RATRANS NPN 20V 5A NS-B1 |
5,306 |
|
Datasheet |
- | 3-SIP | Tape & Box (TB) | Obsolete | NPN | 5 A | 20 V | 1V @ 100mA, 3A | 1µA | 340 @ 500mA, 2V | 400 mW | 150MHz | 150°C (TJ) | - | - | Through Hole | NS-B1 |
|
2SD2345JSLTRANS NPN 40V 0.05A SSMINI3-F1 |
5,913 |
|
Datasheet |
- | SC-89, SOT-490 | Tape & Reel (TR) | Obsolete | NPN | 50 mA | 40 V | 200mV @ 1mA, 10mA | 1µA | 600 @ 2mA, 10V | 125 mW | 120MHz | 125°C (TJ) | - | - | Surface Mount | SSMini3-F1 |
|
|
2SD235800ATRANS NPN 10V 1A MT-2-A1 |
3,647 |
|
Datasheet |
- | 3-SIP | Tape & Box (TB) | Obsolete | NPN | 1 A | 10 V | 150mV @ 20mA, 500mA | 1µA (ICBO) | 200 @ 100mA, 2V | 1 W | 120MHz | 150°C (TJ) | - | - | Through Hole | MT-2-A1 |
|
|
2SD2420APTRANS NPN DARL 80V 4A TO-220D-A1 |
6,497 |
|
Datasheet |
- | TO-220-3 Full Pack | Bulk | Obsolete | NPN - Darlington | 4 A | 80 V | 4V @ 20mA, 5A | 500µA | 4000 @ 3A, 3V | 2 W | 20MHz | 150°C (TJ) | - | - | Through Hole | TO-220D-A1 |
|
2SD245300LTRANS NPN 60V 2A U-G2 |
3,545 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | NPN | 2 A | 60 V | 1V @ 50mA, 2A | 100µA | 500 @ 500mA, 4V | 1 W | 50MHz | 150°C (TJ) | - | - | Surface Mount | U-G2 |
,TO-226_straightlead.jpg)
|
2SD250400ATRANS NPN 10V 5A TO-92-B1 |
4,233 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | NPN | 5 A | 10 V | 500mV @ 100mA, 3A | 1µA | 300 @ 500mA, 2V | 750 mW | 170MHz | 150°C (TJ) | - | - | Through Hole | TO-92-B1 |
|
2SD25730QATRANS NPN 60V 3A MT-3-A1 |
8,531 |
|
Datasheet |
- | 3-SIP | Tape & Box (TB) | Obsolete | NPN | 3 A | 60 V | 1V @ 50mA, 2A | 100µA | 800 @ 500mA, 4V | 1.5 W | 50MHz | 150°C (TJ) | - | - | Through Hole | MT-3-A1 |
|
2N3416_D26ZTRANS NPN 50V 0.5A TO-92-3 |
3,957 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Obsolete | NPN | 500 mA | 50 V | 300mV @ 3mA, 50mA | 100nA (ICBO) | 75 @ 2mA, 4.5V | 625 mW | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
2N3904_J05ZTRANS NPN 40V 0.2A TO-92-3 |
8,194 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | NPN | 200 mA | 40 V | 300mV @ 5mA, 50mA | - | 100 @ 10mA, 1V | 625 mW | 300MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
2N5088_J61ZTRANS NPN 30V 0.1A TO-92-3 |
3,096 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Bulk | Obsolete | NPN | 100 mA | 30 V | 500mV @ 1mA, 10mA | 50nA (ICBO) | 300 @ 100µA, 5V | 625 mW | 50MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
2N5210TFTRANS NPN 50V 0.1A TO-92-3 |
4,901 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Obsolete | NPN | 100 mA | 50 V | 700mV @ 1mA, 10mA | 50nA (ICBO) | 200 @ 100µA, 5V | 625 mW | 30MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
2N5401TATRANS PNP 150V 0.6A TO-92-3 |
5,219 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | PNP | 600 mA | 150 V | 500mV @ 5mA, 50mA | 50nA (ICBO) | 60 @ 10mA, 5V | 625 mW | 400MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
Single Bipolar Transistors Electronic Components
Explore Single Bipolar Transistors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
