Single Bipolar Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KSC2258STUTRANS NPN 250V 0.1A TO-126-3 |
4,013 |
|
Datasheet |
- | TO-225AA, TO-126-3 | Tube | Obsolete | NPN | 100 mA | 250 V | 1.2V @ 5mA, 50mA | - | 40 @ 40mA, 20V | 4 W | 100MHz | 150°C (TJ) | - | - | Through Hole | TO-126-3 |
|
BCP68-25-TPTRANS NPN 20V 1A SOT-223 |
4,089 |
|
Datasheet |
- | TO-261-4, TO-261AA | Bulk | Last Time Buy | NPN | 1 A | 20 V | 500mV @ 100mA, 1A | 100nA (ICBO) | 160 @ 500mA, 1V | 1 W | 40MHz | -55°C ~ 150°C | - | - | Surface Mount | SOT-223 |
|
DSC2501R0LTRANS NPN 20V 0.5A MINI3-G3-B-B |
6,408 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Discontinued at Digi-Key | NPN | 500 mA | 20 V | 400mV @ 20mA, 500mA | 100nA (ICBO) | 200 @ 500mA, 2V | 200 mW | 150MHz | 150°C (TJ) | - | - | Surface Mount | Mini3-G3-B-B |
|
|
DSC250100LTRANS NPN 20V 0.5A MINI3-G3-B-B |
9,774 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Discontinued at Digi-Key | NPN | 500 mA | 20 V | 400mV @ 20mA, 500mA | 100nA (ICBO) | 200 @ 500mA, 2V | 200 mW | 150MHz | 150°C (TJ) | - | - | Surface Mount | Mini3-G3-B-B |
|
|
DSC2501T0LTRANS NPN 20V 0.5A MINI3-G3-B-B |
3,644 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Discontinued at Digi-Key | NPN | 500 mA | 20 V | 400mV @ 20mA, 500mA | 100nA (ICBO) | 200 @ 500mA, 2V | 200 mW | 150MHz | 150°C (TJ) | - | - | Surface Mount | Mini3-G3-B-B |
|
|
BCV27-TPTRANS NPN DARL 30V 0.5A SOT-23 |
2,898 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | NPN - Darlington | 500 mA | 30 V | 1V @ 100µA, 100mA | 100nA (ICBO) | 20000 @ 100mA, 5V | 300 mW | 170MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
BSR33PASXBSR33PAS/SOT1061/HUSON3 |
9,560 |
|
- |
- | 3-UDFN Exposed Pad | Tape & Reel (TR) | Active | PNP | 1 A | 80 V | 500mV @ 50mA, 500mA | 100nA (ICBO) | 100 @ 100mA, 5V | 480 mW | 100MHz | 150°C (TJ) | - | - | Surface Mount | DFN2020D-3 |
,TO-226_straightlead.jpg)
|
MPS6561TRANS NPN 20V 0.6A TO-92-3 |
5,106 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | NPN | 600 mA | 20 V | 500mV @ 35mA, 350mA | 100nA | 50 @ 350mA, 1V | 625 mW | 60MHz | - | - | - | Through Hole | TO-92-3 |
|
|
BC547B_S00ZTRANS NPN 50V 0.1A TO-92-3 |
2,851 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | NPN | 100 mA | 50 V | 600mV @ 5mA, 100mA | 15nA (ICBO) | 110 @ 2mA, 5V | 500 mW | 300MHz | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
KSB1116ALTATRANS PNP 60V 1A TO-92-3 |
4,935 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | PNP | 1 A | 60 V | 300mV @ 50mA, 1A | 100nA (ICBO) | 300 @ 100mA, 2V | 750 mW | 120MHz | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
BC68PA-QXTRANS PNP 20V 2A 3HUSON |
6,126 |
|
Datasheet |
- | 3-PowerUDFN | Tape & Reel (TR) | Active | PNP | 2 A | 20 V | 600mV @ 200mA, 2A | 100nA (ICBO) | 85 @ 500mA, 1V | 420 mW | 170MHz | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 3-HUSON (2x2) |
|
|
BC68-25PA-QXTRANS PNP 20V 2A 3HUSON |
5,824 |
|
Datasheet |
- | 3-PowerUDFN | Tape & Reel (TR) | Active | PNP | 2 A | 20 V | 600mV @ 200mA, 2A | 100nA (ICBO) | 160 @ 500mA, 1V | 420 mW | 170MHz | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 3-HUSON (2x2) |
|
|
MMBT589-TPTRANS PNP 30V 1A SOT-23 |
8,741 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Last Time Buy | PNP | 1 A | 30 V | 650mV @ 200mA, 2A | 100nA (ICBO) | 100 @ 500mA, 2V | 310 mW | 100MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
PBSS5350Z-QFTRANS PNP 50V 3A SOT-223 |
8,234 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | PNP | 3 A | 50 V | 300mV @ 200mA, 2A | 100nA (ICBO) | 200 @ 2A, 2V | 650 mW | 100MHz | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-223 |
|
|
2STX2220TRANS PNP 20V 1.5A TO-92-3 |
4,946 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bag | Obsolete | PNP | 1.5 A | 20 V | 450mV @ 150mA, 1.5A | 100nA (ICBO) | 200 @ 100mA, 2V | 900 mW | - | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
2SC5865TLQTRANS NPN 60V 1A TSMT3 |
6,031 |
|
Datasheet |
- | SC-96 | Tape & Reel (TR) | Last Time Buy | NPN | 1 A | 60 V | 500mV @ 50mA, 500mA | 1µA (ICBO) | 120 @ 100mA, 2V | 500 mW | 250MHz | 150°C (TJ) | - | - | Surface Mount | TSMT3 |
|
|
2SC5865TLRTRANS NPN 60V 1A TSMT3 |
5,317 |
|
Datasheet |
- | SC-96 | Tape & Reel (TR) | Last Time Buy | NPN | 1 A | 60 V | 500mV @ 50mA, 500mA | 1µA (ICBO) | 180 @ 100mA, 2V | 500 mW | 250MHz | 150°C (TJ) | - | - | Surface Mount | TSMT3 |
|
|
BCX71K_S00ZTRANS PNP 45V 0.5A SOT-23-3 |
6,494 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | PNP | 500 mA | 45 V | 550mV @ 1.25mA, 50mA | 20nA | 380 @ 2mA, 5V | 350 mW | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
MMST5088T146TRANS PNP SMT3 |
6,518 |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SMT3 |
|

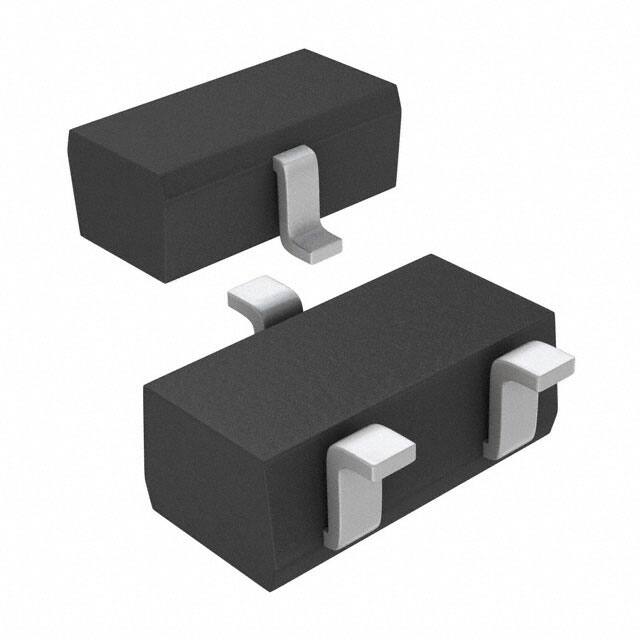

PBSS4350SA_R1_00001TRANS NPN 50V 3A SC-59 |
3,108 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Not For New Designs | NPN | 3 A | 50 V | 370mV @ 300mA, 3A | 100nA | 300 @ 1A, 2V | 1.25 W | 100MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-59 |
