Single Bipolar Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SJ83180BIP T03 NPN SPECIAL |
1,175 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
2SB955KTRANS PNP DARL 120V 10A TO-220AB |
3,326 |
|
Datasheet |
- | TO-220-3 | Bulk | Active | PNP - Darlington | 10 A | 120 V | 3V @ 100mA, 10A | 10µA | 1000 @ 5A, 3V | 50 W | - | 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
2SB955K-ETRANS PNP DARL 120V 10A TO-220AB |
1,750 |
|
Datasheet |
- | TO-220-3 | Bulk | Active | PNP - Darlington | 10 A | 120 V | 3V @ 100mA, 10A | 10µA | 1000 @ 5A, 3V | 50 W | - | 150°C (TJ) | - | - | Through Hole | TO-220AB |
|

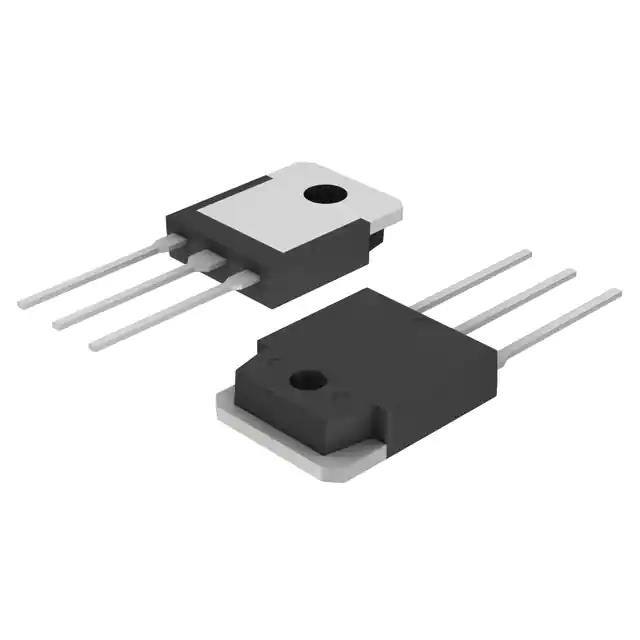

FJA4213RTUTRANS PNP 250V 17A TO-3P |
6,614 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Obsolete | PNP | 17 A | 250 V | 3V @ 800mA, 8A | 5µA (ICBO) | 55 @ 1A, 5V | 130 W | 30MHz | 150°C (TJ) | - | - | Through Hole | TO-3P |
|
2SD2016TRANS NPN DARL 200V 3A TO-220F |
708 |
|
Datasheet |
- | TO-220-3 Full Pack | Bulk | Active | NPN - Darlington | 3 A | 200 V | 1.5V @ 1.5mA, 1A | 10µA (ICBO) | 1000 @ 1A, 4V | 25 W | 90MHz | 150°C (TJ) | - | - | Through Hole | TO-220F |
|
2SC5200RTUTRANS NPN 250V 17A TO-264-3 |
252 |
|
Datasheet |
- | TO-264-3, TO-264AA | Bulk | Active | NPN | 17 A | 250 V | 3V @ 800mA, 8A | 5µA (ICBO) | 55 @ 7A, 5V | 150 W | 30MHz | -50°C ~ 150°C (TJ) | - | - | Through Hole | TO-264-3 |
|
2STA1694TRANS PNP 120V 8A TO-3P |
644 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Obsolete | PNP | 8 A | 120 V | 1.5V @ 300mA, 3A | 10µA (ICBO) | 70 @ 3A, 4V | 80 W | 20MHz | 150°C (TJ) | - | - | Through Hole | TO-3P |
|
|
2SC3568-AZTRANS NPN 100V 10A TO-220F |
5,270 |
|
Datasheet |
- | TO-220-3 Full Pack | Bulk | Active | NPN | 10 A | 100 V | 600mV @ 500mA, 5A | 10µA | 40 @ 3A, 5V | 30 W | - | 150°C (TJ) | - | - | Through Hole | TO-220F |
|
|
2SD1590(2)-S6NPN BIPOLAR TRANSISTOR |
1,634 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2SC5196TRANS NPN 80V 6A TO-3PS |
210 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Active | NPN | 6 A | 80 V | 2V @ 500mA, 5A | 5µA (ICBO) | 55 @ 1A, 5V | 60 W | 30MHz | 150°C (TJ) | - | - | Through Hole | TO-3PS |
|
|
2SA1939TRANS PNP 80V 6A TO-3PS |
210 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Active | PNP | 6 A | 80 V | 2V @ 500mA, 5A | 5µA (ICBO) | 55 @ 1A, 5V | 60 W | 30MHz | 150°C (TJ) | - | - | Through Hole | TO-3PS |
|
|
2SA1940TRANS PNP 120V 8A TO-3PS |
209 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Active | PNP | 8 A | 120 V | 2V @ 600mA, 6A | 5µA (ICBO) | 55 @ 1A, 5V | 80 W | 30MHz | 150°C (TJ) | - | - | Through Hole | TO-3PS |
|
|
2SC5197TRANS NPN 120V 8A TO-3PS |
205 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Active | NPN | 8 A | 120 V | 2V @ 600mA, 6A | 5µA (ICBO) | 55 @ 1A, 5V | 80 W | 30MHz | 150°C (TJ) | - | - | Through Hole | TO-3PS |
|
|
2SD718TRANS NPN 120V 8A TO-3PS |
202 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Active | NPN | 8 A | 120 V | 2.5V @ 500mA, 5A | 5µA (ICBO) | 55 @ 1A, 5V | 80 W | 10MHz | 150°C (TJ) | - | - | Through Hole | TO-3PS |
|
|
2SB688TRANS PNP 120V 8A TO-3PS |
198 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Active | PNP | 8 A | 120 V | 2.5V @ 500mA, 5A | 5µA (ICBO) | 55 @ 1A, 5V | 80 W | 10MHz | 150°C (TJ) | - | - | Through Hole | TO-3PS |
|
|
2SB817CTRANS PNP 140V 12A TO-3P-3 |
17,513 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Bulk | Obsolete | PNP | 12 A | 140 V | 2V @ 500mA, 5A | 100µA (ICBO) | 100 @ 1A, 5V | 2.5 W | 10MHz | 150°C (TJ) | - | - | Through Hole | TO-3P-3 |
|
FJPF3305H1TUTRANS NPN 400V 4A TO-220F-3 |
127 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Obsolete | NPN | 4 A | 400 V | 1V @ 1A, 4A | 1µA (ICBO) | 19 @ 1A, 5V | 30 W | 4MHz | 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
|
2SC3568(8)-AZPOWER BIPOLAR TRANSISTOR NPN |
9,976 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2SC3568(1)-S6-AZPOWER BIPOLAR TRANSISTOR NPN |
771 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2SC3568(2)-S6-AZPOWER BIPOLAR TRANSISTOR NPN |
652 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
Single Bipolar Transistors Electronic Components
Frequently Asked Questions
Q1: What products are included in Single Bipolar Transistors?
This category includes related Single Bipolar Transistors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Single Bipolar Transistors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Single Bipolar Transistors and other electronic components.
