Single Bipolar Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG00721SS TO39 GP NPN XSTR |
44,506 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2SD1622T-TD-EBIP NPN 1A 50V |
41,769 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BC557BZL1GTRANS PNP 45V 0.1A TO92 |
8,556 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Cut Tape (CT) | Obsolete | PNP | 100 mA | 45 V | 650mV @ 5mA, 100mA | 100nA | 180 @ 2mA, 5V | 625 mW | 320MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|

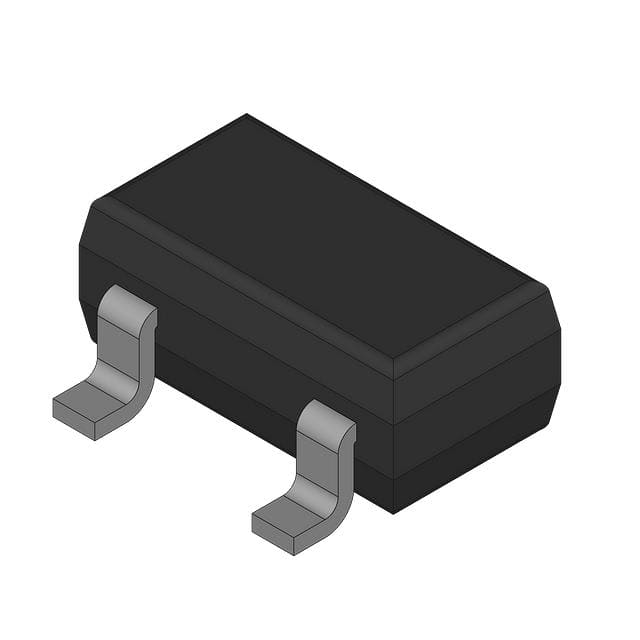

CPH3249A-TL-ETRANS NPN 400V 1A 3-CPH |
36,000 |
|
Datasheet |
- | SC-96 | Bulk | Active | NPN | 1 A | 400 V | 800mV @ 100mA, 500mA | 10µA (ICBO) | 50 @ 100mA, 5V | 900 mW | 20MHz | 150°C (TJ) | - | - | Surface Mount | 3-CPH |
|
|
2SC4412-5-TB-EBIP NPN 50MA 300V |
33,000 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NSF2250WT1GSS SC70 UHF XSTR NPN TR |
32,950 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PZTA14T3TRANS NPN DARL 30V 0.3A TO-261A |
30,960 |
|
Datasheet |
- | TO-261-4, TO-261AA | Bulk | Active | NPN - Darlington | 300 mA | 30 V | 1.5V @ 100µA, 100mA | 100nA (ICBO) | 20000 @ 100mA, 5V | 1.5 W | 125MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | TO-261A |
|
|
PCP1204-TD-HBIP NPN 1.5A 50V |
30,758 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TN6726ATRANS PNP 30V 1.5A TO-92-3 |
30,616 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body | Bulk | Active | PNP | 1.5 A | 30 V | 500mV @ 100mA, 1A | 100nA (ICBO) | 60 @ 100mA, 1V | 1 W | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
FDC630CSMALL SIGNAL FIELD-EFFECT TRANSI |
30,000 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2SA1253T-SPA-ONPNP EPITAXIAL PLANAR SILICON |
28,396 |
|
- |
- | 3-SSIP | Bulk | Active | PNP | - | - | 500mV @ 5mA, 50mA | - | 300 @ 10mA, 5V | - | 250MHz | - | - | - | Through Hole | 3-SPA |
|
BCX5516H6327XTSA1TRANS NPN 60V 1A PG-SOT89 |
4,979 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Last Time Buy | NPN | 1 A | 60 V | 500mV @ 50mA, 500mA | 100nA (ICBO) | 100 @ 150mA, 2V | 2 W | 100MHz | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-SOT89 |
|
CPH3215-TL-HTRANS NPN 30V 1.5A 3-CP |
5,229 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 1.5 A | 30 V | 225mV @ 15mA, 750mA | 100nA (ICBO) | 200 @ 100mA, 2V | 900 mW | 500MHz | 150°C (TJ) | - | - | Surface Mount | 3-CP |
|
MCH6124-TL-ETRANS PNP 20V 3A 6-MCPH |
9,209 |
|
Datasheet |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | PNP | 3 A | 20 V | 195mV @ 75mA, 1.5A | 100nA (ICBO) | 200 @ 100mA, 2V | 1 W | 400MHz | 150°C (TJ) | - | - | Surface Mount | 6-MCPH |
|
|
CPH3110-TL-EPNP EPITAXIAL PLANAR SILICON |
24,000 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GSBC847BMTRANS NPN 45V 0.1A SOT-883 |
19,940 |
|
Datasheet |
- | SC-101, SOT-883 | Tape & Reel (TR) | Active | NPN | 100 mA | 45 V | 400mV @ 5mA, 100mA | 15nA (ICBO) | 200 @ 2mA, 5V | 250 mW | 100MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-883 |
|
FHR1200TRANS NPN 100V 0.05A SC88 |
4,357 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | NPN + Zener Diode (Isolated) | 50 mA | 100 V | - | - | - | 227 mW | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-88 (SC-70-6) |
|
2SA1052MCTR-ETRANS PNP 30V 0.1A 3-MPAK |
19,045 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | PNP | 100 mA | 30 V | 200mV @ 10mA, 1mA | 500nA (ICBO) | 160 @ 2mA, 12V | 150 mW | - | 150°C (TJ) | - | - | Surface Mount | 3-MPAK |
|
2SD1619T-TD-ENPN EPITAXIAL PLANAR SILICON |
19,000 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
,TO-226_straightlead.jpg)
|
BC557BGTRANS PNP 45V 0.1A TO92 |
8,159 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body | Bulk | Obsolete | PNP | 100 mA | 45 V | 650mV @ 5mA, 100mA | 100nA | 180 @ 2mA, 5V | 625 mW | 320MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
