Bipolar Transistor Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANKCA2N2920TRANS 2NPN 60V 50MA TO-78-6 |
5,307 |
|
- |
- | TO-78-6 Metal Can | Tape & Reel (TR) | Active | 2 NPN (Dual) | 50mA | 60V | 300mV @ 100µA, 1mA | 10µA (ICBO) | 300 @ 1mA, 5V | 350mW | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/355 | Through Hole | TO-78-6 |
|
JANTX2N6988TRANS 4PNP 60V 600MA 14FLATPACK |
2,877 |
|
Datasheet |
- | 14-Flatpack | Bulk | Discontinued at Digi-Key | 4 PNP (Quad) | 600mA | 60V | 1.6V @ 50mA, 500mA | 10µA (ICBO) | 100 @ 150mA, 10V | 400mW | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/558 | Surface Mount | 14-Flatpack |
|
2N2920U/TRTRANS 2NPN DUAL 60V 30MA 6-SMD |
4,467 |
|
Datasheet |
- | 6-SMD, No Lead | Tape & Reel (TR) | Active | 2 NPN (Dual) | 30mA | 60V | 300mV @ 100µA, 1mA | 10µA (ICBO) | 300 @ 1mA, 5V | 350mW | - | -65°C ~ 200°C (TJ) | - | - | Surface Mount | 6-SMD |
|

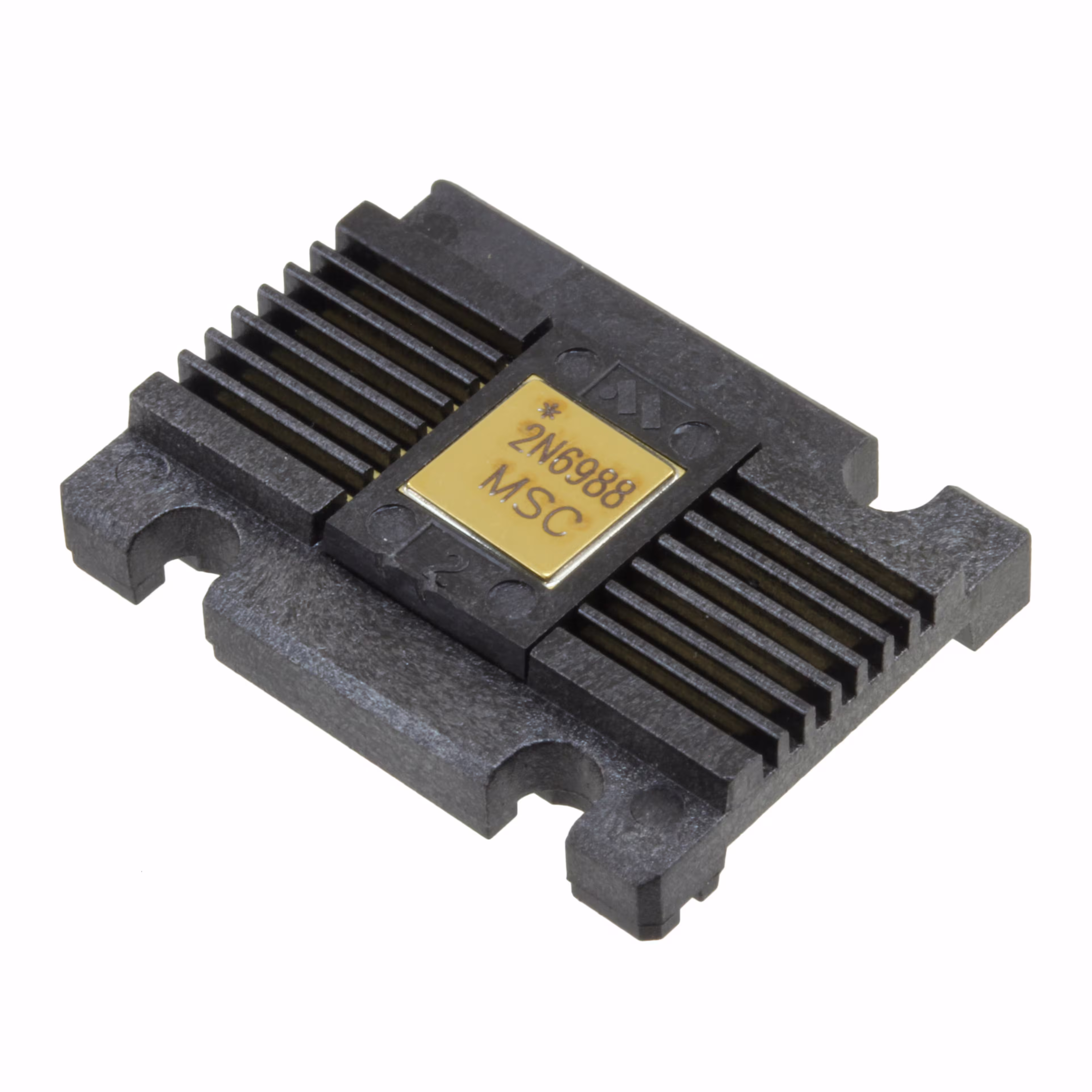

2N6988TRANS 4PNP 60V 600MA 14FLATPACK |
3,702 |
|
Datasheet |
- | 14-Flatpack | Bulk | Active | 4 PNP (Quad) | 600mA | 60V | 1.6V @ 50mA, 500mA | 10µA (ICBO) | 100 @ 150mA, 10V | 400mW | - | -65°C ~ 200°C (TJ) | - | - | Surface Mount | 14-Flatpack |
|
|
JAN2N6987TRANS 4PNP QUAD 60V 600MA |
3,112 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Bulk | Active | 4 PNP (Quad) | 600mA | 60V | 1.6V @ 50mA, 500mA | 10µA (ICBO) | 100 @ 150mA, 10V | 1.5W | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/558 | Through Hole | - |
|
|
2N2919UTRANS 2NPN DUAL 60V 30MA U |
2,455 |
|
- |
- | 6-SMD, No Lead | Bulk | Active | 2 NPN (Dual) | 30mA | 60V | 300mV @ 100µA, 1mA | 10µA (ICBO) | 150 @ 1mA, 5V | 350mW | - | 200°C (TJ) | - | - | Surface Mount | U |
|
2N2919U/TRTRANS 2NPN DUAL 60V 30MA U |
8,937 |
|
Datasheet |
- | 6-SMD, No Lead | Tape & Reel (TR) | Active | 2 NPN (Dual) | 30mA | 60V | 300mV @ 100µA, 1mA | 10µA (ICBO) | 150 @ 1mA, 5V | 350mW | - | 200°C (TJ) | - | - | Surface Mount | U |
|
|
JANTXV2N6987TRANS 4PNP QUAD 60V 600MA |
3,322 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Bulk | Active | 4 PNP (Quad) | 600mA | 60V | 1.6V @ 50mA, 500mA | 10µA (ICBO) | 100 @ 150mA, 10V | 1.5W | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/558 | Through Hole | - |
|
|
2N3838TRANS NPN/PNP 40V 600MA 6FLATPCK |
3,797 |
|
Datasheet |
- | 6-FlatPack | Bulk | Active | 1 NPN, 1 PNP | 600mA | 40V | 400mV @ 15mA, 150mA | 10µA (ICBO) | 100 @ 150mA, 10V | 350mW | - | -65°C ~ 200°C (TJ) | - | - | Surface Mount | 6-Flatpack |
|
|
2N3838/TRTRANS NPN/PNP 40V 600MA 6FLATPCK |
7,022 |
|
- |
- | 6-FlatPack | Tape & Reel (TR) | Active | 1 NPN, 1 PNP | 600mA | 40V | 400mV @ 15mA, 150mA | 10µA (ICBO) | 100 @ 150mA, 10V | 350mW | - | -65°C ~ 200°C (TJ) | - | - | Surface Mount | 6-Flatpack |
|
|
MNS2N3810UPTRANS 2PNP 60V 50MA TO-78-6 |
5,718 |
|
- |
- | TO-78-6 Metal Can | Bulk | Active | 2 PNP (Dual) | 50mA | 60V | 250mV @ 100µA, 1mA | 10µA (ICBO) | 150 @ 1mA, 5V | 350mW | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/336 | Through Hole | TO-78-6 |
|
|
MNS2N3810UP/TRTRANS 2PNP 60V 50MA TO-78-6 |
5,523 |
|
- |
- | TO-78-6 Metal Can | Bulk | Active | 2 PNP (Dual) | 50mA | 60V | 250mV @ 100µA, 1mA | 10µA (ICBO) | 150 @ 1mA, 5V | 350mW | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/336 | Through Hole | TO-78-6 |
|
|
JANTXV2N6988TRANS 4PNP 60V 600MA 14FLATPACK |
8,465 |
|
Datasheet |
- | 14-Flatpack | Bulk | Active | 4 PNP (Quad) | 600mA | 60V | 1.6V @ 50mA, 500mA | 10µA (ICBO) | 100 @ 150mA, 10V | 400mW | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/558 | Surface Mount | 14-Flatpack |
|
JANTXV2N6989TRANS 4NPN QUAD 50V 800MA TO-116 |
7,753 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Bulk | Active | 4 NPN (Quad) | 800mA | 50V | 1V @ 50mA, 500mA | 10µA (ICBO) | 100 @ 150mA, 10V | 1.5W | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/559 | Through Hole | TO-116 |
|

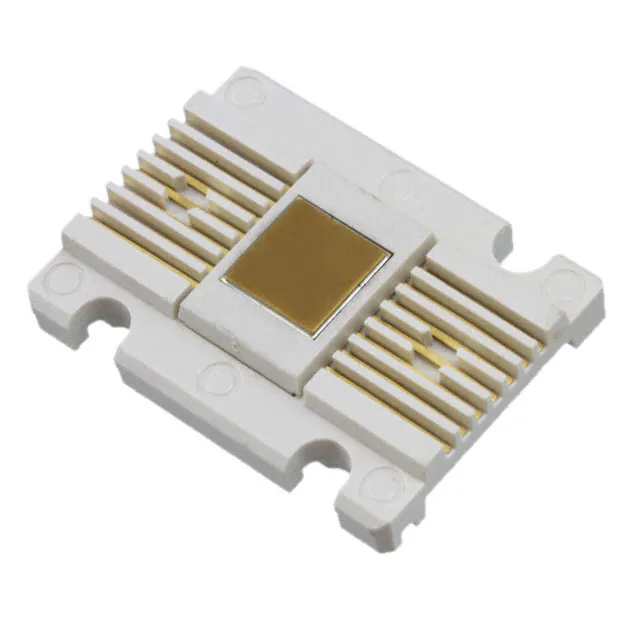

JANTXV2N6990TRANS 4NPN 50V 800MA 14FLATPACK |
3,373 |
|
Datasheet |
- | 14-Flatpack | Bulk | Active | 4 NPN (Quad) | 800mA | 50V | 1V @ 50mA, 500mA | 10µA (ICBO) | 100 @ 150mA, 10V | 400mW | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/559 | Surface Mount | 14-Flatpack |
|
|
JANTX2N2919UTRANS 2NPN DUAL 60V 30MA U |
7,606 |
|
- |
- | 6-SMD, No Lead | Bulk | Active | 2 NPN (Dual) | 30mA | 60V | 300mV @ 100µA, 1mA | 10µA (ICBO) | 150 @ 1mA, 5V | 350mW | - | 200°C (TJ) | Military | MIL-PRF-19500/355 | Surface Mount | U |
|
JANTX2N2919U/TRTRANS 2NPN DUAL 60V 30MA U |
9,911 |
|
- |
- | 6-SMD, No Lead | Tape & Reel (TR) | Active | 2 NPN (Dual) | 30mA | 60V | 300mV @ 100µA, 1mA | 10µA (ICBO) | 150 @ 1mA, 5V | 350mW | - | 200°C (TJ) | Military | MIL-PRF-19500/355 | Surface Mount | U |
|
|
JANTX2N2920UTRANS 2NPN DUAL 60V 30MA 6-SMD |
8,739 |
|
- |
- | 6-SMD, No Lead | Bulk | Active | 2 NPN (Dual) | 30mA | 60V | 300mV @ 100µA, 1mA | 10µA (ICBO) | 300 @ 1mA, 5V | 350mW | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/355 | Surface Mount | 6-SMD |
|
|
JANTX2N2920U/TRTRANS 2NPN DUAL 60V 30MA U |
3,962 |
|
- |
- | 6-SMD, No Lead | Tape & Reel (TR) | Active | 2 NPN (Dual) | 30mA | 60V | 300mV @ 100µA, 1mA | 10µA (ICBO) | 300 @ 1mA, 5V | 350mW | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/355 | Surface Mount | U |
|
JANTXV2N3810TRANS 2PNP 60V 50MA TO-78-6 |
7,592 |
|
Datasheet |
- | TO-78-6 Metal Can | Bulk | Active | 2 PNP (Dual) | 50mA | 60V | 250mV @ 100µA, 1mA | 10µA (ICBO) | 150 @ 1mA, 5V | 350mW | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/336 | Through Hole | TO-78-6 |
