Bipolar Transistor Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMPQ3906 TR13TRANS 4PNP QUAD 40V 200MA 16SOIC |
4,334 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 4 PNP (Quad) | 200mA | 40V | 400mV @ 5mA, 50mA | - | 100 @ 10mA, 1V | 1W | 450MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
SMA4033TRANS 4NPN DARL 100V 2A 12-SIP |
9,884 |
|
Datasheet |
- | 12-SIP | Tube | Active | 4 NPN Darlington (Quad) | 2A | 100V | 1.5V @ 2mA, 1A | 10µA (ICBO) | 2000 @ 1A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
L6221CDTRANS 4NPN DARL 60V 1.2A 20-SO |
2,419 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | 4 NPN Darlington (Quad) | 1.2A | 60V | - | - | - | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-SO |
|
|
L6221CD013TRTRANS 4NPN DARL 60V 1.2A 20-SO |
4,444 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | 4 NPN Darlington (Quad) | 1.2A | 60V | - | - | - | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-SO |
|
STA322ATRANS 3PNP 50V 3A 8-SIP |
4,965 |
|
Datasheet |
- | 8-SIP | Bulk | Obsolete | 3 PNP | 3A | 50V | 1V @ 40mA, 2A | 100µA (ICBO) | 100 @ 1A, 4V | 3W, 15W | - | 150°C (TJ) | - | - | Through Hole | 8-SIP |
|
|
SMA4020TRANS 4PNP DARL 60V 4A 12SIP |
9,493 |
|
Datasheet |
- | 12-SIP | Tube | Active | 4 PNP Darlington (Quad) | 4A | 60V | 1.5V @ 6mA, 3A | 10µA (ICBO) | 2000 @ 3A, 4V | 4W, 20W | - | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
SLA4030TRANS 4NPN DARL 100V 4A 12-SIP |
6,569 |
|
Datasheet |
- | 12-SIP Exposed Tab | Tube | Active | 4 NPN Darlington (Quad) | 4A | 100V | 1.5V @ 10mA, 2A | 10µA (ICBO) | 2000 @ 2A, 4V | 5W | - | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
|
L6221AD013TRTRANS 4NPN DARL 50V 1.8A 20-SO |
2,369 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | 4 NPN Darlington (Quad) | 1.8A | 50V | 1.6V @ 1.8A | - | - | 1W | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-SO |
|
|
L6221ADTRANS 4NPN DARL 50V 1.8A 20-SO |
6,137 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | 4 NPN Darlington (Quad) | 1.8A | 50V | 1.6V @ 1.8A | - | - | 1W | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-SO |
|
|
MMPQ3904 TR13TRANS 4NPN QUAD 40V 200MA 16SOIC |
5,579 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 4 NPN (Quad) | 200mA | 40V | 300mV @ 5mA, 50mA | - | 100 @ 10mA, 1V | 1W | 450MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
MPQ2222A PBFREETRANS 4NPN QUAD 40V 500MA TO-116 |
7,486 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Tube | Active | 4 NPN (Quad) | 500mA | 40V | 1V @ 50mA, 500mA | 10nA (ICBO) | 100 @ 150mA, 10V | 650mW | 200MHz | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-116 |
|
|
SLA4031TRANS 4NPN DARL 120V 4A 12-SIP |
2,694 |
|
Datasheet |
- | 12-SIP Exposed Tab | Tube | Active | 4 NPN Darlington (Quad) | 4A | 120V | 1.5V @ 2mA, 2A | 10µA (ICBO) | 2000 @ 2A, 2V | 5W | - | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|

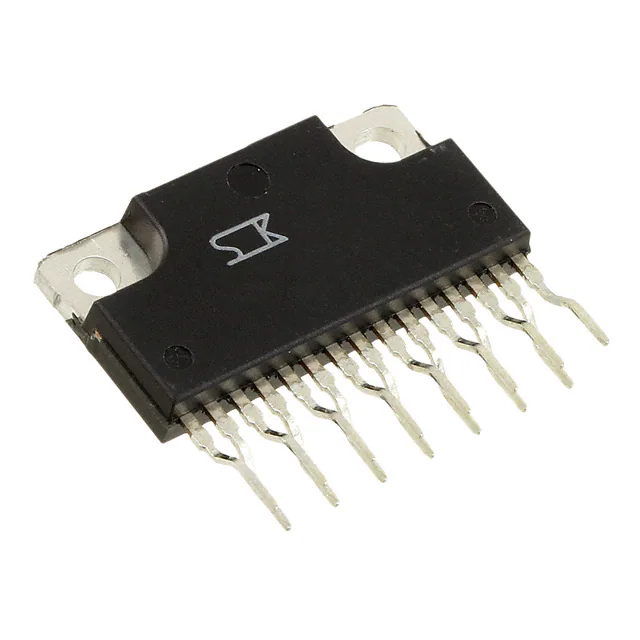

SMA4036TRANS 6 NPN DARL 120V 2A 15-SIP |
5,011 |
|
Datasheet |
- | 15-SIP Exposed Tab, Formed Leads | Tube | Active | 6 NPN Darlington | 2A | 120V | 1.5V @ 2mA, 1A | 10µA (ICBO) | 2000 @ 1A, 4V | 4W | 50MHz | 150°C (TJ) | - | - | Through Hole | 15-SIP |
|
|
E-L6221ADTRANS 4NPN DARL 50V 1.8A 20-SO |
6,974 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | 4 NPN Darlington (Quad) | 1.8A | 50V | 1.6V @ 1.8A | - | - | 1W | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-SO |
|
|
MPQ3904 PBFREETRANS 4NPN QUAD 40V 200MA TO-116 |
9,839 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Tube | Active | 4 NPN (Quad) | 200mA | 40V | 200mV @ 1mA, 10mA | 50nA (ICBO) | 75 @ 10mA, 1V | 500mW | 250MHz | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-116 |
|
STA403ATRANS 4NPN DARL 100V 4A 10-SIP |
2,273 |
|
Datasheet |
- | 10-SIP | Bulk | Active | 4 NPN Darlington (Quad) | 4A | 100V | 100V @ 10mA | 100µA (ICBO) | 1000 @ 2A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
SLA4036TRANS 120V 2A 15-ZIP |
3,848 |
|
Datasheet |
- | 15-SIP Exposed Tab, Formed Leads | Bulk | Active | - | 2A | 120V | - | - | - | - | - | 150°C (TJ) | - | - | Through Hole | 15-ZIP |
|
|
STA406ATRANS 4NPN DARL 60V 6A 10-SIP |
2,422 |
|
Datasheet |
- | 10-SIP | Bulk | Active | 4 NPN Darlington (Quad) | 6A | 60V | 1.5V @ 10mA, 3A | 100µA (ICBO) | 2000 @ 3A, 2V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
SMA4038TRANS 6 NPN DARL 120V 3A 15-SIP |
1 |
|
Datasheet |
- | 15-SIP Exposed Tab, Formed Leads | Tube | Active | 6 NPN Darlington | 3A | 120V | 1.5V @ 3mA, 1.5A | 10µA (ICBO) | 2000 @ 1.5A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 15-SIP |
|
|
SLA4051TRANS 9 NPN DARL 120V 2A 21-SIP |
6,568 |
|
Datasheet |
- | 21-SSIP Exposed Tab | Tube | Active | 9 NPN Darlington | 2A | 120V | - | - | - | - | - | 150°C (TJ) | - | - | Through Hole | 21-SIP w/fin |
Bipolar Transistor Arrays Electronic Components
Explore Bipolar Transistor Arrays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
