Bipolar Transistor Arrays, Pre-Biased
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Resistor - Base (R1) | Resistor - Emitter Base (R2) | DC Current Gain (hFE) (Min) @ Ic, Vce | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | Frequency - Transition | Power - Max | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PUMD2/DG/B3,115TRANS PREBIAS 1NPN 1PNP 6TSSOP |
4,921 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 22kOhms | 60 @ 5mA, 5V | 150mV @ 500µA, 10mA | 100nA | 230MHz, 180MHz | 300mW | - | - | Surface Mount | 6-TSSOP |
|
|
PUMD2/DG/B3,135TRANS PREBIAS 1NPN 1PNP 6TSSOP |
7,815 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 22kOhms | 60 @ 5mA, 5V | 150mV @ 500µA, 10mA | 100nA | 230MHz, 180MHz | 300mW | - | - | Surface Mount | 6-TSSOP |
|
|
PUMH1/DG/B3,115TRANS PREBIAS 2NPN 50V 6TSSOP |
6,312 |
|
- |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 22kOhms | 60 @ 5mA, 5V | 150mV @ 500µA, 10mA | 100nA | 230MHz | 300mW | - | - | Surface Mount | 6-TSSOP |
|
|
PUMH2/DG/B3,115TRANS PREBIAS 2NPN 50V 6TSSOP |
6,113 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 80 @ 5mA, 5V | 150mV @ 500µA, 10mA | 1µA | 230MHz | 300mW | - | - | Surface Mount | 6-TSSOP |
|
HD1A3M(0)-T1-AZTRANSISTOR NPN SC62-3 |
9,632 |
|
Datasheet |
HD1 | TO-243AA | Tape & Reel (TR) | Obsolete | 1 NPN Pre-Biased, 1 NPN | 1A | 60V | 1kOhms | 1kOhms | 200 @ 1A, 2V | - | 100nA (ICBO) | - | 2W | - | - | Surface Mount | SC-62 |
|
|
UMG3N-TPTRANS PREBIAS 2NPN 50V SOT353 |
3,821 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | - | 100 @ 100mA, 5V | 300mV @ 250µA, 5mA | - | 250MHz | 150mW | - | - | Surface Mount | SOT-353 |
|
RN2714,LFPNPX2 BRT Q1BSR1KOHM Q1BER10KOHM |
4,210 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 1kOhms | 10kOhms | 50 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | - | 200mW | - | - | Surface Mount | USV |
|
RN49A1FE(TE85L,F)PNP + NPN BRT Q1BSR=2.2KOHM Q1BE |
7,586 |
|
- |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 2.2kOhms, 22kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 200MHz, 250MHz | 100mW | - | - | Surface Mount | ES6 |
|
|
FMC2T148TRANS DGTL BJT NPN/PNP SMT5 |
7,300 |
|
Datasheet |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MUN5113DW1T1TRANS 2PNP PREBIAS 0.25W SOT363 |
3,743 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhm | 47kOhm | 80 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | - | 187mW | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
|
PUMB10,115NOW NEXPERIA PUMB10 - SMALL SIGN |
2,815 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 2.2kOhms | 47kOhms | 100 @ 10mA, 5V | 100mV @ 250µA, 5mA | 100nA | 180MHz | 300mW | Automotive | AEC-Q101 | Surface Mount | SOT-363 |
|

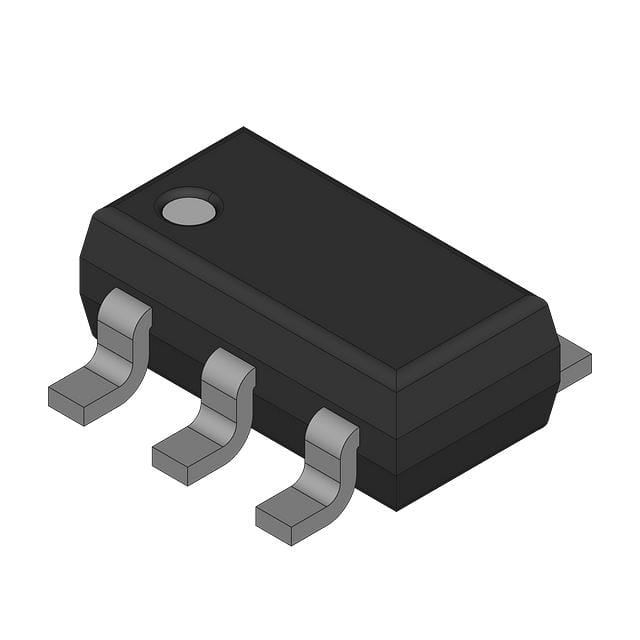

PBLS2024D115NOW NEXPERIA PBLS2024D - SMALL S |
8,846 |
|
Datasheet |
- | SC-74, SOT-457 | Bulk | Active | 1 PNP Pre-Biased, 1 PNP | 100mA, 1.8A | 50V, 20V | 22kOhms | 22kOhms | 60 @ 5mA, 5V / 200 @ 1A, 2V | 150mV @ 500µA, 10mA / 210mV @ 100mA, 1.8A | 1µA, 100nA | 130MHz | 760mW | - | - | Surface Mount | 6-TSOP |
|
|
DMC2640F0RTRANS PREBIAS NPN SMD |
9,785 |
|
- |
- | SOT-23-6 | Tape & Reel (TR) | Obsolete | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 10kOhms | 30 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 300mW | - | - | Surface Mount | Mini6-G4-B |
|
|
DMMT3904W-7-F-79IC TRANSISTOR ARRAY SMD |
4,388 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DMMT3906W-7-F-79IC TRANSISTOR ARRAY SMD |
6,584 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
UMG8N-TPTRANSISTOR |
9,759 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 150mW | - | - | Surface Mount | SOT-353 |
|
|
UMC4N-TPTRANSISTOR |
3,043 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms, 10kOhms | 47kOhms | 68 @ 5mA, 5V | 300mV @ 500µA, 10mA | 500nA | 250MHz | 150mW | - | - | Surface Mount | SOT-353 |
|
|
UMG2N-TPTRANSISTOR |
7,940 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 68 @ 5mA, 5V | 300mV @ 500µA, 10mA | 500nA | 250MHz | 150mW | - | - | Surface Mount | SOT-353 |
|
NSVBC143JPDXV6T5GSS SOT563 RSTR XSTR TR |
4,571 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 2.2kOhms, 47kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | - | 357mW | Automotive | AEC-Q101 | Surface Mount | SOT-563 |
|
|
NSVBC123JDXV6T5GSS SOT563 SRF MT RST XSTR |
5,035 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 2.2kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 1mA, 10mA | 500nA | - | 500mW | Automotive | AEC-Q101 | Surface Mount | SOT-563 |
