Bipolar RF Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Voltage - Collector Emitter Breakdown (Max) | Frequency - Transition | Noise Figure (dB Typ @ f) | Gain | Power - Max | DC Current Gain (hFE) (Min) @ Ic, Vce | Current - Collector (Ic) (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFP490E6327SMALL SIGNAL BIPOLAR TRANSISTOR |
3,998 |
|
Datasheet |
- | SC-80 | Bulk | Active | NPN | 4.5V | 17.5GHz | 3.3dB @ 1.8GHz | 8.5dB | 1W | 50 @ 200mA, 3V | 600mA | 150°C (TJ) | - | - | Surface Mount | PG-SCD80-2 |
|
2SC5536A-TL-HRF TRANS NPN 12V 1.7GHZ 3SSFP |
12,620 |
|
Datasheet |
- | SC-81 | Tape & Reel (TR) | Obsolete | NPN | 12V | 1.7GHz | 1.8dB @ 150MHz | 16dB | 100mW | 80 @ 3mA, 2V | 50mA | 150°C (TJ) | - | - | Surface Mount | 3-SSFP |
|
MCH4014-TL-HRF TRANS NPN 12V 10GHZ 4MCPH |
2,827 |
|
Datasheet |
- | SOT-343F | Tape & Reel (TR) | Obsolete | NPN | 12V | 10GHz | 1.2dB @ 1GHz | 18dB | 350mW | 60 @ 5mA, 5V | 30mA | 150°C (TJ) | - | - | Surface Mount | 4-MCPH |
|
EC4H09C-TL-HRF TRANS NPN 3.5V 26GHZ ECSP1008 |
6,096 |
|
Datasheet |
- | 4-UFDFN | Tape & Reel (TR) | Obsolete | NPN | 3.5V | 26GHz | 1.3dB @ 2GHz | 15dB | 120mW | 70 @ 5mA, 1V | 40mA | 150°C (TJ) | - | - | Surface Mount | 4-ECSP1008 |
|
2SC5752-T1-ASMALL SIGNAL BIPOLAR TRANSISTOR |
24,000 |
|
Datasheet |
- | SC-82A, SOT-343 | Bulk | Obsolete | NPN | 6V | 12GHz | 1.7dB @ 2GHz | 13dB | 200mW | 75 @ 30mA, 3V | 100mA | 150°C (TJ) | - | - | Surface Mount | SOT-343 |
|
2SC4725TLPRF TRANS NPN 20V 0.05A EMT3 |
2,877 |
|
Datasheet |
- | SC-75, SOT-416 | Tape & Reel (TR) | Last Time Buy | NPN | 20V | 1.5GHz | 4.5dB @ 200MHz | - | 150mW | 82 @ 10mA, 10V | 50mA | 150°C (TJ) | - | - | Surface Mount | EMT3 |
|
NSVF5490SKT3GRF-TR 10V 30MA FT=8G NPN |
4,319 |
|
Datasheet |
- | SOT-623F | Tape & Reel (TR) | Obsolete | NPN | 10V | 8GHz | 1.4dB @ 1.5GHz | 10dB | 100mW | 90 @ 10mA, 5V | 30mA | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-623/SSFP |
|
|
UPA901TU-T3-ARF SMALL SIGNAL TRANSISTOR |
30,000 |
|
Datasheet |
- | 8-SMD, Flat Lead Exposed Pad | Bulk | Obsolete | 2 NPN (Dual) | 4.5V | - | - | - | 410mW | 80 @ 6mA, 3V / 80 @ 20mA, 3V | 75mA, 250mA | - | - | - | Surface Mount | 8-MINIMOLD |
|
|
MCH4009-TL-HRF TRANS NPN 3.5V 25GHZ 4MCPH |
5,893 |
|
Datasheet |
- | SOT-343F | Tape & Reel (TR) | Active | NPN | 3.5V | 25GHz | 1.1dB @ 2GHz | 13.5dB | 120mW | 50 @ 5mA, 1V | 40mA | 150°C (TJ) | - | - | Surface Mount | 4-MCPH |
|
BFM505,115RF TRANS 2 NPN 8V 9GHZ 6TSSOP |
9,307 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | 2 NPN (Dual) | 8V | 9GHz | 1.1dB ~ 1.9dB @ 900MHz ~ 2GHz | - | 500mW | 60 @ 5mA, 6V | 18mA | 175°C (TJ) | - | - | Surface Mount | 6-TSSOP |
|
|
NSVF3007SG3T1GRF TRANS NPN 12V 8GHZ 3MCPH |
7,580 |
|
Datasheet |
- | 3-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | NPN | 12V | 8GHz | 1.8dB @ 1GHz | 12dB | 350mW | 60 @ 5mA, 5V | 30mA | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SC-70FL/MCPH3 |
|

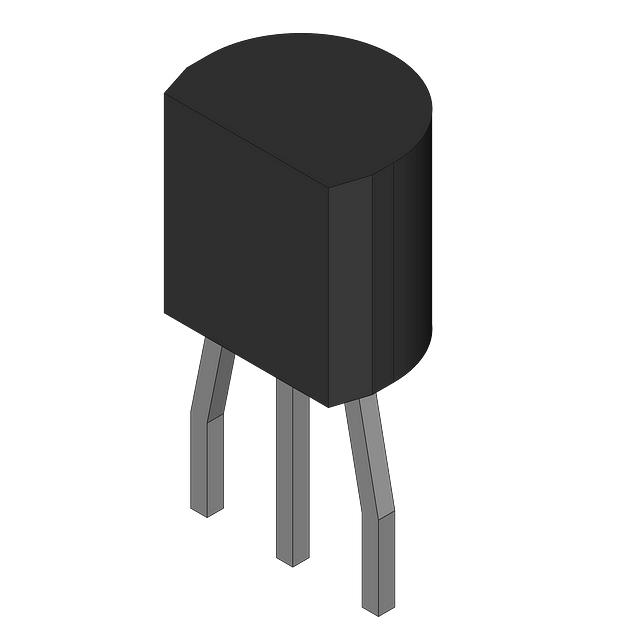

LC945PSS T092 GP XSTR NPN SPCL |
59,500 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2SC5265LS-1HXTRANSISTOR RF |
7,979 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NSVF4015SG4T1GRF TRANS NPN 12V 10GHZ SC82FL/ |
1,318 |
|
Datasheet |
- | 4-SMD, Flat Leads | Tape & Reel (TR) | Active | NPN | 12V | 10GHz | 1.2dB @ 1GHz | 17dB | 450mW | 60 @ 50mA, 5V | 100mA | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SC-82FL/MCPH4 |
|
BFU710F,115RF TRANS NPN 2.8V 43GHZ 4DFP |
9,240 |
|
Datasheet |
- | SOT-343F | Tape & Reel (TR) | Last Time Buy | NPN | 2.8V | 43GHz | 0.85dB ~ 1.45dB @ 5.8GHz ~ 12GHz | - | 136mW | 200 @ 1mA, 2V | 10mA | 150°C (TJ) | - | - | Surface Mount | 4-DFP |
|
|
2SC3772-4-TB-EBIP NPN 70MA 16V FT=3G |
47,724 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFU610F,115RF TRANS NPN 5.5V 15GHZ 4DFP |
5,773 |
|
Datasheet |
- | SOT-343F | Tape & Reel (TR) | Last Time Buy | NPN | 5.5V | 15GHz | 0.9dB ~ 1.7dB @ 1.5GHz ~ 5.8GHz | 13.5dB ~ 23.5dB | 136mW | 90 @ 1mA, 2V | 10mA | 150°C (TJ) | - | - | Surface Mount | 4-DFP |
|
|
BFU660F,115RF TRANS NPN 5.5V 21GHZ 4DFP |
4,400 |
|
Datasheet |
- | SOT-343F | Tape & Reel (TR) | Last Time Buy | NPN | 5.5V | 21GHz | 0.6dB ~ 1.2dB @ 1.5GHz ~ 5.8GHz | 12dB ~ 21dB | 225mW | 90 @ 10mA, 2V | 60mA | 150°C (TJ) | - | - | Surface Mount | 4-DFP |
|
|
NSVF4020SG4T1GRF TRANS NPN 8V 16GHZ SC82FL/MCP |
1,411 |
|
Datasheet |
- | 4-SMD, Flat Leads | Tape & Reel (TR) | Active | NPN | 8V | 16GHz | 1.8dB @ 1GHz | 17.5dB | 400mW | 60 @ 50mA, 5V | 150mA | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SC-82FL/MCPH4 |
|
NSVF6001SB6T1GRF TRANS NPN 0.1A 12V MCPH6 |
2,817 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | NPN | 12V | 6.7GHz | 1.1dB @ 1GHz | 11dB | 800mW | 90 @ 30mA, 5V | 100mA | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-CPH |
Bipolar RF Transistors Electronic Components
Explore Bipolar RF Transistors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
