Arrays, Signal Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM620-04-RCINDUCT ARRAY 6 COIL 63.2UH SMD |
0 |
|
Datasheet |
PM620 | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 6 | 63.2 µH | 2.27 mH | ±20% | 9.24 A | 1.54 A | 720 mA | 120 mA | 11mOhm | 390mOhm | Unshielded | - | -40°C ~ 105°C | Surface Mount | 0.669" L x 0.843" W (17.00mm x 21.40mm) | 0.331" (8.40mm) |
|
|
PM620-08-RCINDUCT ARRAY 6 COIL 6.8UH SMD |
0 |
|
Datasheet |
PM620 | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 6 | 6.8 µH | 244.8 µH | ±10% | 9.24 A | 1.54 A | 6.6 A | 1.1 A | 11mOhm | 390mOhm | Unshielded | - | -40°C ~ 105°C | Surface Mount | 0.669" L x 0.843" W (17.00mm x 21.40mm) | 0.331" (8.40mm) |
|
|
PM620-10-RCINDUCT ARRAY 6 COIL 4.5UH SMD |
0 |
|
Datasheet |
PM620 | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 6 | 4.5 µH | 162 µH | ±10% | 9.24 A | 1.54 A | 9.6 A | 1.6 A | 11mOhm | 390mOhm | Unshielded | - | -40°C ~ 105°C | Surface Mount | 0.669" L x 0.843" W (17.00mm x 21.40mm) | 0.331" (8.40mm) |
|
|
PM620-11-RCINDUCT ARRAY 6 COIL 7.9UH SMD |
0 |
|
Datasheet |
PM620 | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 6 | 7.9 µH | 284.4 µH | ±10% | 7.68 A | 1.28 A | 8.4 A | 1.4 A | 16mOhm | 564mOhm | Unshielded | - | -40°C ~ 105°C | Surface Mount | 0.669" L x 0.843" W (17.00mm x 21.40mm) | 0.331" (8.40mm) |
|
|
7001-RCINDUCT ARRAY 2 COIL T/H |
0 |
|
Datasheet |
7000 | Radial, Vertical, 4 Leads | Bulk | Obsolete | 2 | - | 2.5 µH | ±15% | - | 11 A | - | - | - | 4mOhm Max | Unshielded | - | -55°C ~ 105°C | Through Hole | 0.875" L x 0.425" W (22.22mm x 10.80mm) | 1.000" (25.40mm) |
|
SDF-0.63-500INDUCT ARRAY 2 COIL T/H |
0 |
|
Datasheet |
SD | Radial | Tray | Active | 2 | - | - | - | - | - | - | - | - | - | Unshielded | - | -40°C ~ 125°C | Through Hole | 0.689" L x 0.610" W (17.50mm x 15.50mm) | 0.433" (11.00mm) |
|
|
CMT4545-02MINDUCT ARRAY 2 COIL 870NH SMD |
0 |
|
Datasheet |
CMT4545 | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 870 nH | 3.5 µH | ±20% | 7.8 A | 3.9 A | - | - | 5mOhm | 20mOhm | Unshielded | - | - | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.250" (6.35mm) |
|
|
CMT4545-18MINDUCT ARRAY 2 COIL 27UH SMD |
0 |
|
Datasheet |
CMT4545 | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 27 µH | 105 µH | ±20% | 2.5 A | 1.2 A | - | - | 49mOhm | 196mOhm | Unshielded | - | - | Surface Mount | 0.594" L x 0.594" W (15.09mm x 15.09mm) | 0.250" (6.35mm) |
|
|
CMT4545-22MINDUCT ARRAY 2 COIL 50UH SMD |
0 |
|
Datasheet |
CMT4545 | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 50 µH | 208 µH | ±20% | 1.9 A | 940 mA | - | - | 86mOhm | 344mOhm | Unshielded | - | - | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.250" (6.35mm) |
|
IHCL4040DZER330M5AINDUCT ARRAY 2 COIL 33UH SMD |
0 |
|
Datasheet |
IHCL | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | - | - | ±20% | - | - | - | - | - | - | Shielded | AEC-Q200 | -55°C ~ 155°C | Surface Mount | 0.420" L x 0.400" W (10.67mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHCL4040DZER470M5AINDUCT ARRAY 2 COIL 47UH SMD |
0 |
|
Datasheet |
IHCL | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | - | - | ±20% | - | - | - | - | - | - | Shielded | AEC-Q200 | -55°C ~ 155°C | Surface Mount | 0.420" L x 0.400" W (10.67mm x 10.16mm) | 0.157" (4.00mm) |
|
|
PM600-08-RCFIXED IND 4.9UH 710MA 137MOHM SM |
0 |
|
Datasheet |
PM600 | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 6 | 4.9 µH | 176.4 µH | ±10% | 4.26 A | 710 mA | 3.48 A | 580 mA | 23mOhm | 822mOhm | Unshielded | - | -40°C ~ 105°C | Surface Mount | 0.500" L x 0.480" W (12.70mm x 12.20mm) | 0.244" (6.20mm) |
|
|
PA2493HLINDUCT ARRAY 3 COIL SMD |
0 |
|
Datasheet |
PA249XHL | Nonstandard | Tray | Active | 3 | - | - | - | - | - | - | - | - | - | Unshielded | - | -40°C ~ 130°C | Surface Mount | 1.339" L x 0.433" W (34.00mm x 11.00mm) | 0.197" (5.00mm) |
|
PA2494HLINDUCT ARRAY 4 COIL SMD |
0 |
|
Datasheet |
PA249HL | Nonstandard | Tray | Active | 4 | - | - | - | - | - | - | - | - | - | Shielded | - | -40°C ~ 130°C | Surface Mount | 0.925" L x 0.492" W (23.50mm x 12.50mm) | 0.197" (5.00mm) |
|
PA3144HLINDUCT ARRAY 4 COIL SMD |
0 |
|
Datasheet |
PA314HL | 8-SMD, No Lead | Tray | Obsolete | 4 | - | - | - | - | - | - | - | - | - | Shielded | - | -40°C ~ 130°C | Surface Mount | 1.417" L x 0.433" W (36.00mm x 11.00mm) | 0.315" (8.00mm) |
|
PF0553.103NLINDUCT ARRAY 2 COIL 10.5UH SMD |
0 |
|
Datasheet |
PF0553NL | Nonstandard | Tray | Active | 2 | 10.5 µH | 42 µH | ±20% | 6 A | 3 A | 11 A | 5.6 A | 17mOhm Max | 67mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.343" (8.71mm) |
|

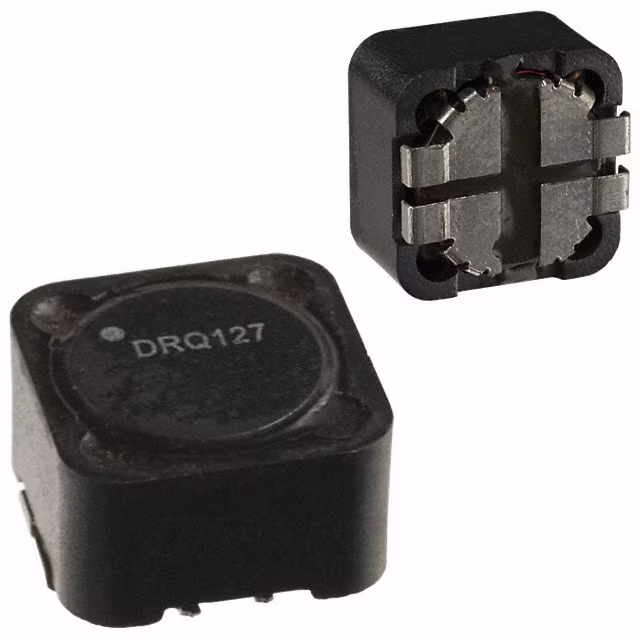

DRQ127-2R2-GINDUCT ARRAY 2 COIL 2.027UH SMD |
0 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.027 µH | 8.108 µH | ±20% | 12.5 A | 6.23 A | 25.5 A | 12.7 A | 3.73mOhm | 16.1mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

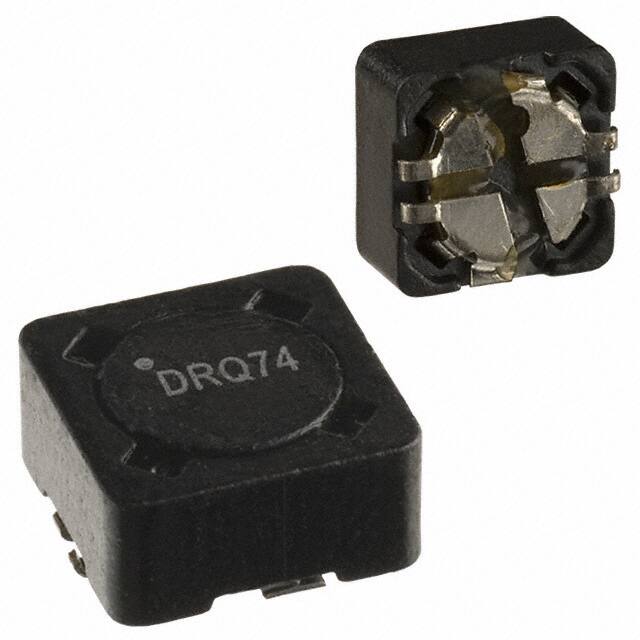

DRQ74-470-TRWINDUCT ARRAY 2 COIL 49.64UH SMD |
0 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 49.64 µH | 198.6 µH | ±20% | 1.15 A | 573 mA | 1.41 A | 710 mA | 216mOhm | 865mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.175" (4.45mm) |
|
|
IHCL4040DZEB2R7M5AINDUCT ARRAY 2 COIL 2.7UH SMD |
0 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IHCL4040DZEB4R7M5AINDUCT ARRAY 2 COIL 4.7UH SMD |
0 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
