Angle, Linear Position Measuring
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
981HE3B5WA8H00THROTTLE POSITION SENSOR |
0 |
|
- |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TSP-L-1000-203-3%-RHSENSOR LINEAR 1000MM CONN |
0 |
|
Datasheet |
Sensor Strip | ThinPot | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 1000.00mm (0 ~ 40.00") | Resistive | - | Flexible Membrane - Linear | ±3% | 20 kOhms | ±20% | - | Custom | Connector | -40°C ~ 50°C | - | - | - |
|
SP-L-0750-203-1%-RHSENSOR LINEAR 750MM CONNECTOR |
0 |
|
Datasheet |
Sensor Strip | SoftPot | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 750.00mm (0 ~ 29.53") | Resistive | - | Flexible Membrane - Linear | ±1% | 20 kOhms | ±20% | - | Custom | Connector | -40°C ~ 50°C | - | - | - |
|
|
981HE0A2WB1F16SENSOR HALL EFFECT PANEL MNT |
0 |
|
- |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
981HE2B1WA8H01981 HE 2 B 1 W A 8H01 E1 |
0 |
|
Datasheet |
Module | - | Bulk | Active | - | Angle, Rotary Position | Hall Effect | 0° ~ 90°, Continuous | - | Analog Voltage | Clockwise Increase | Hole for Shaft | ±0.5% | 1 kOhms | - | 4.5V ~ 5.5V | Panel Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
|
|
981HE2B5WA8H00981 HE 2 B 5 W A 8H00 E1 |
0 |
|
Datasheet |
Module | - | Bulk | Active | - | Angle, Rotary Position | Hall Effect | 0° ~ 120°, Continuous | - | Analog Voltage | Clockwise Increase | Hole for Shaft | ±0.5% | 1 kOhms | - | 4.5V ~ 5.5V | Panel Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
|
|
981HE3B5WA8H01981 HE 3 B 5 W A 8H01 E1 |
0 |
|
Datasheet |
Module | - | Bulk | Active | - | Angle, Rotary Position | Hall Effect | 0° ~ 120°, Continuous | - | Analog Voltage | Clockwise Increase | Hole for Shaft | ±0.5% | 1 kOhms | - | 4.5V ~ 5.5V | Panel Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
|
|
981HE3B1WB8H01981 HE 3 B 1 W B 8H01 E1 |
0 |
|
Datasheet |
Module | - | Bulk | Active | - | Angle, Rotary Position | Hall Effect | 0° ~ 90°, Continuous | - | Analog Voltage | Counterclockwise Increase | Hole for Shaft | ±0.5% | 1 kOhms | - | 4.5V ~ 5.5V | Panel Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
|
|
981HE2B5WA8H01981 HE 2 B 5 W A 8H01 E1 |
0 |
|
Datasheet |
Module | - | Bulk | Active | - | Angle, Rotary Position | Hall Effect | 0° ~ 120°, Continuous | - | Analog Voltage | Clockwise Increase | Hole for Shaft | ±0.5% | 1 kOhms | - | 4.5V ~ 5.5V | Panel Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
|
|
981HE2B5WB8H01981 HE 2 B 5 W B 8H01 E1 |
0 |
|
Datasheet |
Module | - | Bulk | Active | - | Angle, Rotary Position | Hall Effect | 0° ~ 120°, Continuous | - | Analog Voltage | Counterclockwise Increase | Hole for Shaft | ±0.5% | 1 kOhms | - | 4.5V ~ 5.5V | Panel Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
|
RTP350LVNAASENSOR ROTARY 350DEG CONNECTOR |
0 |
|
Datasheet |
Box with Connector | RTP | Bulk | Obsolete | - | Rotary Position | Hall Effect | 350° (±175°) | - | Analog Voltage | Clockwise Increase | External Magnet, Included | ±1% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
RTY090LVEBASENSOR ROTARY 90DEG CONNECTOR |
0 |
|
Datasheet |
Box with Connector | RTY | Bulk | Obsolete | - | Rotary Position | Hall Effect | 90° (±45°), Continuous | - | Analog Voltage | Counterclockwise Increase | Flatted Shaft | ±1% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|

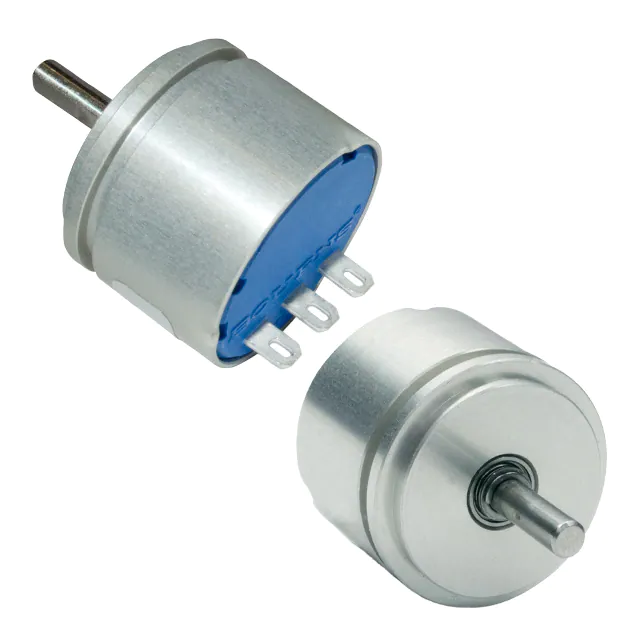

AMS22U5A1BHARL108SINGLE TURN NON-CONTACT MAGNETIC |
0 |
|
Datasheet |
Module, Round Shaft | AMS22U | Tray | Active | - | Rotary Position | Hall Effect | 10° ~ 80°, Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.5% | - | - | 5V | Panel Mount | Solder Lug | -40°C ~ 125°C | - | - | - |
|
|
1059749SENSOR LINEAR CABLE |
0 |
|
- |
Module | RZC1 | Bulk | Active | - | Linear Position | Reed Switch | - | - | - | - | C-Slot | - | - | - | 5V ~ 30V | Chassis Mount | Cable | -30°C ~ 80°C (TA) | - | - | - |
|
|
981HE0A5WC1F16981 HE 0 A 5 W C 1F16 E1 |
0 |
|
Datasheet |
Module, Flatted Shaft | - | Bulk | Active | - | Angle, Rotary Position | Hall Effect | 0° ~ 120°, Continuous | - | PWM | Clockwise Increase | Flatted Shaft | ±1% | 1 kOhms | - | 4.5V ~ 5.5V | Panel Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
|
|
981HE0A1WA1F16981 HE 0 A 1 W A 1F16 E1 |
0 |
|
Datasheet |
Module, Flatted Shaft | - | Bulk | Active | - | Angle, Rotary Position | Hall Effect | 0° ~ 90°, Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | 1 kOhms | - | 4.5V ~ 5.5V | Panel Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
|
|
981HE0A2WD1F16981 HE 0 A 2 W D 1F16 E1 |
0 |
|
Datasheet |
Module, Flatted Shaft | - | Bulk | Active | - | Angle, Rotary Position | Hall Effect | 0° ~ 180°, Continuous | - | PWM | Counterclockwise Increase | Flatted Shaft | ±1% | 1 kOhms | - | 4.5V ~ 5.5V | Panel Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
|
|
981HE0A3WA1F16981 HE 0 A 3 W A 1F16 E1 |
0 |
|
Datasheet |
Module, Flatted Shaft | - | Bulk | Active | - | Angle, Rotary Position | Hall Effect | 0° ~ 270°, Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | 1 kOhms | - | 4.5V ~ 5.5V | Panel Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
|
|
981HE0A2WA1F16981 HE 0 A 2 W A 1F16 E1 |
0 |
|
Datasheet |
Module, Flatted Shaft | - | Bulk | Active | - | Angle, Rotary Position | Hall Effect | 0° ~ 180°, Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | 1 kOhms | - | 4.5V ~ 5.5V | Panel Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
|
|
981HE0A2WC1F16981 HE 0 A 2 W C 1F16 E1 |
0 |
|
Datasheet |
Module, Flatted Shaft | - | Bulk | Active | - | Angle, Rotary Position | Hall Effect | 0° ~ 180°, Continuous | - | PWM | Clockwise Increase | Flatted Shaft | ±1% | 1 kOhms | - | 4.5V ~ 5.5V | Panel Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
Angle, Linear Position Measuring Electronic Components
Explore Angle, Linear Position Measuring electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
