Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-V.jpg)
|
HZC227M025F24VT-FCAP ALUMHYB 220UF 20% 25V SMD |
0 |
|
Datasheet |
HZC_V | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 160 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

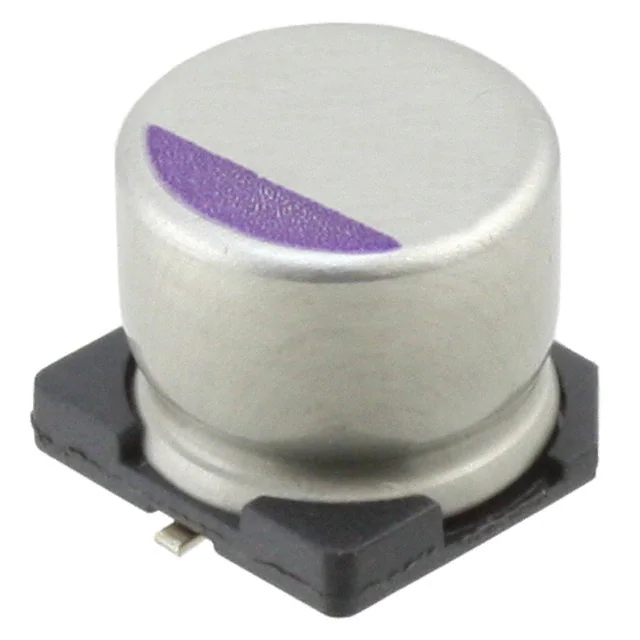

94SVPD396X0025F8CAP ALUM POLY 39UF 20% 25V SMD |
0 |
|
Datasheet |
94SVPD | Tape & Reel (TR) | Last Time Buy | Polymer | 39 µF | ±20% | 25 V | 45mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 33.2 mA @ 120 Hz | 664 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
MAL218397106E3CAP ALUMHYB 120UF 20% 50V SMD |
0 |
|
Datasheet |
183 CPHT | Tape & Reel (TR) | Active | Hybrid | 120 µF | ±20% | 50 V | 28mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Surface Mount |
|
MAL218497903E3CAP ALUM POLY 22UF 20% 100V SMD |
0 |
|
Datasheet |
184 CPNS | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 100 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Automotive | - | - | 2.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Surface Mount |
|
PHA223JML4290ME4CAP ALU HYBRID AXIAL 125C 35V 29 |
0 |
|
Datasheet |
PHA223 | Tray | Active | Hybrid | 2.9 mF | ±20% | 35 V | 56mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | 9.6 A @ 100 Hz | 48 A @ 100 kHz | - | - | 0.795" Dia (20.20mm) | - | - | Through Hole |
|
|
PHA223HML4470ME4CAP ALU HYBRID AXIAL 125C 25V 47 |
0 |
|
Datasheet |
PHA223 | Tray | Active | Hybrid | 4.7 mF | ±20% | 25 V | 54mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | 9.6 A @ 100 Hz | 48 A @ 100 kHz | - | - | 0.795" Dia (20.20mm) | - | - | Through Hole |
|
UGS1C471MNN0816UCAP ALUM POLY 470UF 20% 16V TH |
0 |
|
Datasheet |
UGS | Active | Polymer | 470 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
|
94SVPD476X0025E12CAP ALUM POLY 47UF 20% 25V SMD |
0 |
|
Datasheet |
94SVPD | Tape & Reel (TR) | Last Time Buy | Polymer | 47 µF | ±20% | 25 V | 30mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 47.15 mA @ 120 Hz | 943 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
B40600A5128M001CAP ALUMHYB 1200UF 20% 25V TH |
0 |
|
Datasheet |
B40600 | Cut Tape (CT) | Obsolete | Hybrid | 1200 µF | ±20% | 25 V | 5.1mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 7.4 A @ 20 kHz | - | - | 0.551" Dia x 0.984" L (14.00mm x 25.00mm) | - | - | Through Hole |
|
|
MAL218397005E3CAP ALUMHYB 270UF 20% 35V SMD |
2 |
|
Datasheet |
183 CPHT | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | - | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Surface Mount |
|
|
A759SZ826M2EBAE150CAP ALUM POLY 82UF 20% 250V TH |
0 |
|
Datasheet |
A759 | Bulk | Active | Polymer | 82 µF | ±20% | 250 V | 150mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 160 mA @ 120 Hz | 3.2 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole |
|
|
PHA227JMP4420ME4CAP ALU HYBRID AXIAL 125C 35V 42 |
0 |
|
Datasheet |
PHA227 | Tray | Active | Hybrid | 4.2 mF | ±20% | 35 V | 46mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | 8.72 A @ 100 Hz | 43.6 A @ 100 kHz | - | - | 0.795" Dia (20.20mm) | - | - | Through Hole |
|
|
PHA227HMP4680ME4CAP ALU HYBRID AXIAL 125C 25V 68 |
0 |
|
Datasheet |
PHA227 | Tray | Active | Hybrid | 6.8 mF | ±20% | 25 V | 44mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | 8.72 A @ 100 Hz | 43.6 A @ 100 kHz | - | - | 0.795" Dia (20.20mm) | - | - | Through Hole |
|
94SVP337X0010E12CAP ALUM POLY 330UF 20% 10V SMD |
0 |
|
Datasheet |
94SVP | Tape & Reel (TR) | Last Time Buy | Polymer | 330 µF | ±20% | 10 V | 19mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.74 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
94SVP687X0004F8CAP ALUM POLY 680UF 20% 4V SMD |
0 |
|
Datasheet |
94SVP | Tape & Reel (TR) | Last Time Buy | Polymer | 680 µF | ±20% | 4 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PHA223JMP4420ME4CAP ALU HYBRID AXIAL 125C 35V 42 |
0 |
|
Datasheet |
PHA223 | Tray | Active | Hybrid | 4.2 mF | ±20% | 35 V | 46mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | 9.86 A @ 100 Hz | 49.3 A @ 100 kHz | - | - | 0.795" Dia (20.20mm) | - | - | Through Hole |
|
|
PHA223HMP4680ME4CAP ALU HYBRID AXIAL 125C 25V 68 |
0 |
|
Datasheet |
PHA223 | Tray | Active | Hybrid | 6.8 mF | ±20% | 25 V | 44mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | 9.86 A @ 100 Hz | 49.3 A @ 100 kHz | - | - | 0.795" Dia (20.20mm) | - | - | Through Hole |
|
|
94SVP187X0016E12CAP ALUM POLY 180UF 20% 16V SMD |
0 |
|
Datasheet |
94SVP | Tape & Reel (TR) | Last Time Buy | Polymer | 180 µF | ±20% | 16 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.48 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PHA227JMS4540ME4CAP ALU HYBRID AXIAL 125C 35V 54 |
0 |
|
Datasheet |
PHA227 | Tray | Active | Hybrid | 5.4 mF | ±20% | 35 V | 43mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | 9.12 A @ 100 Hz | 45.6 A @ 100 kHz | - | - | 0.795" Dia (20.20mm) | - | - | Through Hole |
|
|
PHH227HMP4680ME4CAP ALU HYBRID RADIAL 125C 25V 6 |
0 |
|
Datasheet |
PHH227 | Tray | Active | Hybrid | 6.8 mF | ±20% | 25 V | 44mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | 8.72 A @ 100 Hz | 43.6 A @ 100 kHz | - | 0.600" (15.24mm) | 0.795" Dia (20.20mm) | 1.445" (36.70mm) | - | Through Hole |
