Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RAHT1121M4EGL5005ECAP ALUMHYB 120UF 20% 63V SMD |
0 |
|
Datasheet |
HT1 | Tape & Reel (TR) | Active | Hybrid | 120 µF | ±20% | 63 V | 22mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | Anti-Vibration | 300 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount |
|
|
RSHT1561M1GGL5005ECAP ALUMHYB 560UF 20% 35V SMD |
0 |
|
Datasheet |
HT1 | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 35 V | 15mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | Anti-Vibration | 400 mA @ 120 Hz | 4 A @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount |
|
|
RSHT1121M4EGL5005ECAP ALUMHYB 120UF 20% 63V SMD |
0 |
|
Datasheet |
HT1 | Tape & Reel (TR) | Active | Hybrid | 120 µF | ±20% | 63 V | 22mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | Anti-Vibration | 300 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount |
|
|
RAHT1331M1UGL5005ECAP ALUMHYB 330UF 20% 50V SMD |
0 |
|
Datasheet |
HT1 | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 50 V | 20mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | Anti-Vibration | 360 mA @ 120 Hz | 3.6 A @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount |
|
PLS0J821MDO1TDCAP ALUM POLY 820UF 20% 6.3V TH |
0 |
|
Datasheet |
PLS | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 6.3 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
A785MW187M1JLAV015CAP ALUMHYB 180UF 20% 63V SMD |
0 |
|
Datasheet |
A785, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 180 µF | ±20% | 63 V | 15mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | Anti-Vibration | 792 mA @ 100 Hz | 3.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | 0.425" L x 0.406" W (10.80mm x 10.30mm) | Surface Mount |
|
|
HZC566M063G24T-FCAP ALUM HYBRID 56UF 20% 63V SMD |
0 |
|
Datasheet |
HZC | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 140 mA @ 120 Hz | 1.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
2SZE100MCAP ALUM POLY 100UF 20% 2V SMD |
0 |
|
Datasheet |
PC-CON, SZE | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 2 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.055" (1.40mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
A700W227M2R5ATE006CAP ALUM POLY 220UF 20% 2.5V SMD |
0 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 2.5 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.9 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A759PY687M1HBAE026CAP ALUM POLY 680UF 20% 50V TH |
0 |
|
Datasheet |
A759 | Bulk | Active | Polymer | 680 µF | ±20% | 50 V | 26mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 326 mA @ 120 Hz | 6.52 A @ 100 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.866" (22.00mm) | - | Through Hole |
|
URP1C821MNN0811CAP ALUM POLY 820UF 20% 16V TH |
0 |
|
Datasheet |
URP | Active | Polymer | 820 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
ECASD91A107M010K00CAP ALUM POLY 100UF 20% 10V SMD |
0 |
|
Datasheet |
ECAS | Cut Tape (CT) | Obsolete | Polymer | 100 µF | ±20% | 10 V | 10mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
2.5SXB180MCAP ALUM POLY 180UF 20% 2.5V SMD |
0 |
|
Datasheet |
PC-CON, SXB | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 2.5 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
2SXB220MCAP ALUM POLY 220UF 20% 2V SMD |
0 |
|
Datasheet |
PC-CON, SXB | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

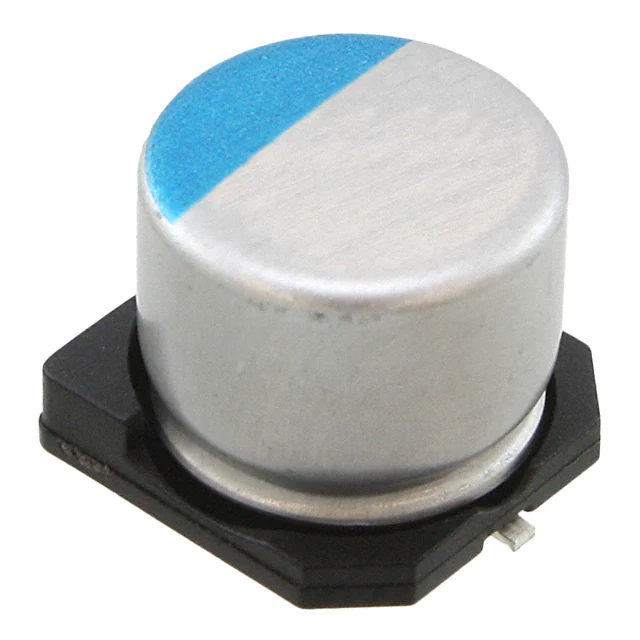

PVM-16V101MG70E-R2CAP ALUM POLY 100UF 20% 16V SMD |
0 |
|
Datasheet |
PVM | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 16 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.01 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|
|
PVM-16V121MG70E-R2CAP ALUM POLY 120UF 20% 16V SMD |
0 |
|
Datasheet |
PVM | Cut Tape (CT) | Obsolete | Polymer | 120 µF | ±20% | 16 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.01 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|
PLG0E272MDO1TDCAP ALUM POLY 2700UF 20% 2.5V TH |
0 |
|
Datasheet |
PLG | Cut Tape (CT) | Active | Polymer | 2700 µF | ±20% | 2.5 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.56 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
A700X107M12RATE018CAP ALUM POLY 100UF 20% 12.5V |
0 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 12.5 V | 18mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A700X107M12RATE025CAP ALUM POLY 100UF 20% 12.5V |
0 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 12.5 V | 25mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
PCR1V331MCS1GSCAP ALUM POLY 270UF 20% 10V TH |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
