Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APXS160ARA820MH70GCAP ALUM POLY 82UF 20% 16V SMD |
0 |
|
Datasheet |
NPCAP™-PXS | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 16 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.76 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
UPE1C102MP51012UCAP ALUM POLY 1000UF 20% 16V TH |
0 |
|
Datasheet |
UPE | Active | Polymer | 1000 µF | ±20% | 16 V | 12mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
|
A700D187M004ATE0157280CAP ALUM POLY 180UF 20% 4V SMD |
0 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 4 V | 15mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A700D686M008ATE0157280CAP ALUM POLY 68UF 20% 8V SMD |
0 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 8 V | 15mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
PCL0G182MCL1GSCAP ALUM POLY 1.8MF 20% 4V SMD |
0 |
|
Datasheet |
PCL | Tape & Reel (TR) | Active | Polymer | 1.8 mF | ±20% | 4 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 275 mA @ 120 Hz | 5.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.476" (12.10mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RNU1E331MDN1CAP ALUM POLY 330UF 20% 25V TH |
0 |
|
Datasheet |
FPCAP, RNU | Bulk | Active | Polymer | 330 µF | ±20% | 25 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
MAL218697103E3CAP ALUM POLY 22UF 20% 50V SMD |
0 |
|
- |
186 CPNT | Box | Active | Polymer | 22 µF | ±20% | 50 V | 50mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 90 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.354" (9.00mm) | - | Surface Mount |
|
|
2SWZ330MDEL-NDCAP ALUM POLY 330UF 20% 2V SMD |
0 |
|
Datasheet |
PC-CON, SWZ | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount |
|
EEF-CD0E101RCAP ALUM POLY 100UF 20% 2.5V SMD |
3 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 2.5 V | 18mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PCF1A100MCL1GBCAP ALUM POLY 10UF 20% 10V SMD |
0 |
|
Datasheet |
PCF | Tape & Reel (TR) | Obsolete | Polymer | 10 µF | ±20% | 10 V | 220mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 700 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
|
|
PCF1A150MCL1GBCAP ALUM POLY 15UF 20% 10V SMD |
0 |
|
Datasheet |
PCF | Tape & Reel (TR) | Obsolete | Polymer | 15 µF | ±20% | 10 V | 200mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 700 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
|

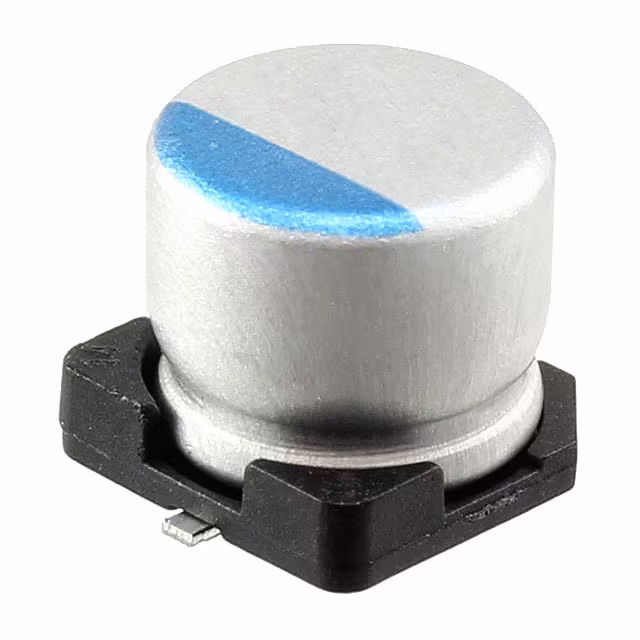

PCR1V470MCL1GSCAP ALUM POLY 47UF 20% 35V SMD |
0 |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | ±20% | 35 V | 48mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
PCF1A6R8MCL1GBCAP ALUM POLY 6.8UF 20% 10V SMD |
0 |
|
Datasheet |
PCF | Tape & Reel (TR) | Obsolete | Polymer | 6.8 µF | ±20% | 10 V | 240mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 670 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
|
|
PCF1C3R3MCL1GBCAP ALUM POLY 3.3UF 20% 16V SMD |
0 |
|
Datasheet |
PCF | Tape & Reel (TR) | Obsolete | Polymer | 3.3 µF | ±20% | 16 V | 260mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 660 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
|
APXG250ARA101MHA0GCAP ALUM POLY 100UF 20% 25V SMD |
0 |
|
Datasheet |
NPCAP™-PXG | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 25 V | 24mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.406" (10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
HVK-25V221MG10E-R2CAP ALUMHYB 220UF 20% 25V SMD |
0 |
|
- |
HVK | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 27mOhm | 6000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 160 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|
|
RNA1D101MDN1PHCAP ALUM POLY 330UF 20% 4V SMD |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
A798D477M002ATE009CAP ALUM POLY 470UF 20% 2V SMD |
0 |
|
Datasheet |
AO-Cap A798 | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 9mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5.27 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | Surface Mount |
|
MAL218097256E3CAP ALUM POLY 680UF 20% 2.5V SMD |
0 |
|
Datasheet |
180 CPS | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 2.5 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.37 A @ 100 kHz | 20 mOhms | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|
|
MAL218097306E3CAP ALUM POLY 390UF 20% 6.3V SMD |
0 |
|
Datasheet |
180 CPS | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.22 A @ 100 kHz | 22 mOhms | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
