Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEF-CD0E121RCAP ALUM POLY 120UF 20% 2.5V SMD |
0 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 2.5 V | 18mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CD0E151RCAP ALUM POLY 150UF 20% 2.5V SMD |
0 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2.5 V | 18mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

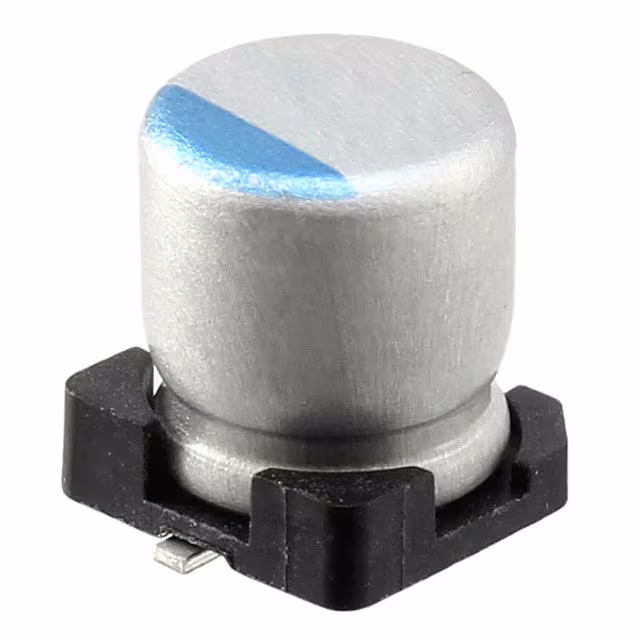

PCR1H120MCL1GSCAP ALUM POLY 12UF 20% 50V SMD |
0 |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 12 µF | ±20% | 50 V | 88mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 600 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
PCR1J6R8MCL1GSCAP ALUM POLY 6.8UF 20% 63V SMD |
0 |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 6.8 µF | ±20% | 63 V | 92mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 600 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
RNU0G821MDN1KXCAP ALUM POLY 820UF 20% 4V TH |
0 |
|
Datasheet |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 4 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
A765KN277M1ALAE020CAP ALUM POLY 270UF 20% 10V SMD |
0 |
|
Datasheet |
A765 | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 10 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 180 mA @ 120 Hz | 3.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
UPR1C471MP26312LCAP ALUM POLY 470UF 20% 16V TH |
0 |
|
Datasheet |
UPR | Active | Polymer | 470 µF | ±20% | 16 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.3 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.531" (13.50mm) | - | Through Hole | |
|
|
UPE1E471MP30812RSCAP ALUM POLY 470UF 20% 25V TH |
0 |
|
Datasheet |
UPE | Active | Polymer | 470 µF | ±20% | 25 V | 16mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
VSE0E561MCB6357CAP ALUM POLY 560UF 20% 2.5V SMD |
0 |
|
Datasheet |
VSE | Active | Polymer | 560 µF | ±20% | 2.5 V | 16mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
A700V227M004PTE015CAP ALUM POLY 220UF 4V SMD |
0 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 4 V | 15mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.24 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A700X187M006ATE0157280CAP ALUM POLY 180UF 20% 6.3V SMD |
0 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 6.3 V | 15mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A700D127M006ATE0187280CAP ALUM POLY 120UF 20% 6.3V SMD |
0 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 6.3 V | 18mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
476ALG050MFBJCAP ALUM POLY 47UF 20% 50V TH |
0 |
|
Datasheet |
ALG | Bulk | Active | Polymer | 47 µF | ±20% | 50 V | 27mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 135 mA @ 120 Hz | 2.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.532" (13.50mm) | - | Through Hole |
|
|
RAHTK220M1REH0002ECAP ALUM HYBRID 22UF 20% 80V SMD |
0 |
|
Datasheet |
HTK | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 80 V | 45mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 110 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|
|
RSHTK220M1REH0002ECAP ALUM HYBRID 22UF 20% 80V SMD |
0 |
|
Datasheet |
HTK | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 80 V | 45mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | Anti-Vibration | 110 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|
|
P295BJ222M500ALW0CCAP ALUM POLY 180UF 20% 4V SMD |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MAL218497362E3CAP ALUM POLY 1200UF 20% 4V SMD |
0 |
|
- |
184 CPNS | Box | Active | Polymer | 1200 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 120 Hz | 5.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
URH1D331MNN6312CAP ALUM POLY 330UF 20% 20V TH |
0 |
|
Datasheet |
URH | Active | Polymer | 330 µF | ±20% | 20 V | 18mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.64 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.531" (13.50mm) | - | Through Hole | |
|
APD0811121M050RCAP ALUM POLY 120UF 20% 50V SMD |
0 |
|
Datasheet |
APD | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 50 V | 27mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 105 mA @ 120 Hz | 2.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXA200ARA220MF60SCAP ALUM POLY 22UF 20% 20V SMD |
0 |
|
Datasheet |
NPCAP™-PXA | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 20 V | 50mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.65 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
