Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

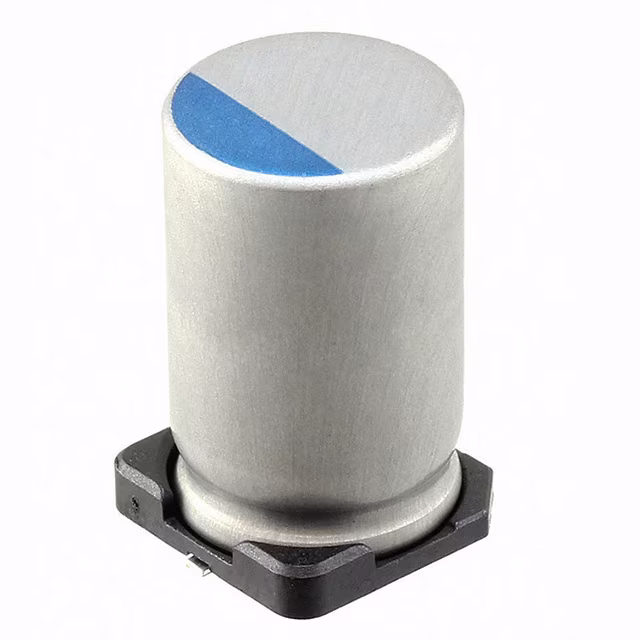

476UVG025MFECAP ALUM POLY 47UF 20% 25V SMD |
0 |
|
Datasheet |
UVG | Bulk | Active | Polymer | 47 µF | ±20% | 25 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Decoupling | - | 80 mA @ 120 Hz | 1.6 A @ 120 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RNS0J151MDN1CAP ALUM POLY 150UF 20% 6.3V TH |
0 |
|
Datasheet |
FPCAP, RNS | Bulk | Active | Polymer | 150 µF | ±20% | 6.3 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 390 mA @ 120 Hz | 3.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
RNS0J221MDN1CAP ALUM POLY 220UF 20% 6.3V TH |
0 |
|
Datasheet |
FPCAP, RNS | Bulk | Active | Polymer | 220 µF | ±20% | 6.3 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 390 mA @ 120 Hz | 3.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RS80E821MCN1CAP ALUM POLY 1.8 MF 20% 16V TH |
0 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RL80J471MDM1CAP ALUM POLY 680UF 20% 10V TH |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RR50E561MDN1CAP ALUM POLY 560UF 20% 2.5V TH |
0 |
|
Datasheet |
FPCAP, RR5 | Bulk | Active | Polymer | 560 µF | ±20% | 2.5 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 663 mA @ 120 Hz | 6.63 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | - | Through Hole |
|
|
APZ0606330M035RCAP ALUM POLY 33UF 20% 35V SMD |
0 |
|
Datasheet |
APZ | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 35 V | 60mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 55 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.256" (6.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
APZ0609101M025RCAP ALUM POLY 100UF 20% 25V SMD |
0 |
|
Datasheet |
APZ | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 25 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 120 mA @ 120 Hz | 2.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.386" (9.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
MAL218497402E3CAP ALUM POLY 22UF 20% 10V SMD |
0 |
|
- |
184 CPNS | Box | Active | Polymer | 22 µF | ±20% | 10 V | 80mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 60 mA @ 120 Hz | 1.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
RKS1H180MCNAFEGSCAP ALUM POLY 18UF 20% 50V SMD |
0 |
|
Datasheet |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 18 µF | ±20% | 50 V | 80mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 160 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
RR50E681MDN1CAP ALUM POLY 680UF 20% 2.5V TH |
0 |
|
Datasheet |
FPCAP, RR5 | Bulk | Active | Polymer | 680 µF | ±20% | 2.5 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 663 mA @ 120 Hz | 6.63 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | - | Through Hole |
|
|
RNS0J391MDN1CAP ALUM POLY 390UF 20% 6.3V TH |
0 |
|
Datasheet |
FPCAP, RNS | Bulk | Active | Polymer | 390 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 523 mA @ 120 Hz | 5.23 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RNU0J681MDN1CAP ALUM POLY 680UF 20% 6.3V TH |
0 |
|
Datasheet |
FPCAP, RNU | Bulk | Active | Polymer | 680 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
A768KS567M1CLAS017CAP ALUM POLY 560UF 20% 16V SMD |
0 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 16 V | 17mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
 R7-Series.jpg)
|
RR70G561MDN1PXCAP ALUM POLY 560UF 20% 4V TH |
0 |
|
Datasheet |
FPCAP, RR7 | Tape & Box (TB) | Active | Polymer | 560 µF | ±20% | 4 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 560 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
RNU1C101MDSASQJXCAP ALUM POLY 100UF 20% 16V TH |
0 |
|
Datasheet |
FPCAP, RNU | Tape & Box (TB) | Active | Polymer | 100 µF | ±20% | 16 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 282 mA @ 120 Hz | 2.82 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole |
|
|
RNU1C101MDSASQPXCAP ALUM POLY 100UF 20% 16V TH |
0 |
|
Datasheet |
FPCAP, RNU | Tape & Box (TB) | Active | Polymer | 100 µF | ±20% | 16 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 282 mA @ 120 Hz | 2.82 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole |
|
PLF0E561MCO1TDCAP ALUM POLY 560UF 20% 2.5V TH |
0 |
|
Datasheet |
PLF | Tape & Box (TB) | Active | Polymer | 560 µF | ±20% | 2.5 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 240 mA @ 120 Hz | 4.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.374" (9.50mm) | - | Through Hole |
|
|
PLF0E681MDL1TDCAP ALUM POLY 1,500UF 20% 10V SM |
0 |
|
- |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PLF0E681MCO1TDCAP ALUM POLY 47UF 20% 20V SMD |
0 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
