Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCR1K680MCL1GSCAP ALUM POLY 68UF 20% 80V SMD |
130 |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 80 V | 28mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

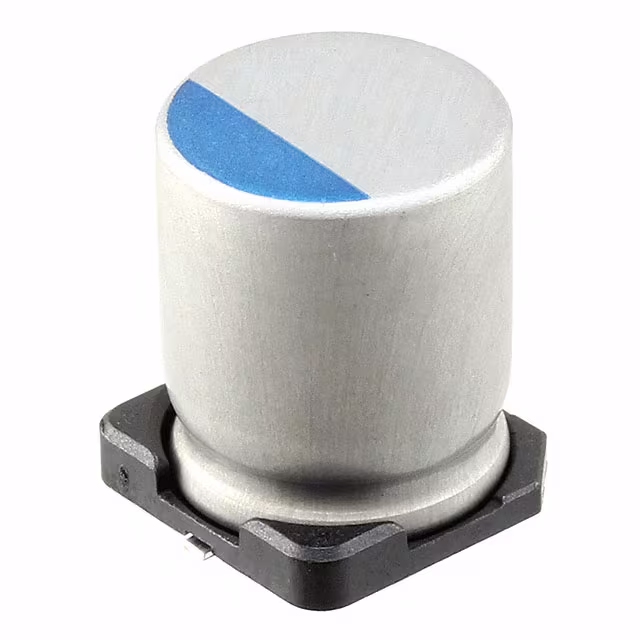

PCR1V331MCL1GSCAP ALUM POLY 330UF 20% 35V SMD |
12,876 |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 35 V | 16mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
A700X107M12RATE015CAP ALUM POLY 100UF 20% 12.5V |
819 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 12.5 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.9 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
PCR1C102MCL1GSCAP ALUM POLY 1000UF 20% 16V SMD |
10,763 |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 16 V | 13mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 4.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCV2B150MCL1GSCAP ALUM POLY 15UF 20% 125V SMD |
5,751 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 15 µF | ±20% | 125 V | 48mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
A759PY337M1JAAE042CAP ALUM POLY 330UF 20% 63V TH |
1,298 |
|
Datasheet |
A759 | Bulk | Active | Polymer | 330 µF | ±20% | 63 V | 42mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 201.5 mA @ 120 Hz | 4.03 A @ 100 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.866" (22.00mm) | - | Through Hole |
|
|
A759PY687M1HAAE026CAP ALUM POLY 680UF 20% 50V TH |
180 |
|
Datasheet |
A759 | Bulk | Active | Polymer | 680 µF | ±20% | 50 V | 26mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 326 mA @ 120 Hz | 6.52 A @ 100 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.866" (22.00mm) | - | Through Hole |
|
MAL218497703E3CAP ALUM POLY 47UF 20% 80V SMD |
8,066 |
|
Datasheet |
184 CPNS | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 80 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Automotive | - | - | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Surface Mount |
|
PHH223MLP4110ME4CAP ALUMHYB 1100UF 20% 63V TH |
988 |
|
Datasheet |
PHH223 | Tray | Active | Hybrid | 1100 µF | ±20% | 63 V | 62mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | High Vibration | 8.8 A @ 100 Hz | 44 A @ 100 kHz | - | 0.600" (15.24mm) | 0.717" Dia (18.20mm) | 1.445" (36.70mm) | - | Through Hole |
|
A759TC227M2EAAE250CAP ALUM POLY 220UF 20% 250V TH |
382 |
|
Datasheet |
A759 | Bulk | Active | Polymer | 220 µF | ±20% | 250 V | 250mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 90 mA @ 120 Hz | 1.8 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole |
|
A766EB226M1DLAE060CAP ALUM POLY 22UF 20% 20V SMD |
2,323 |
|
Datasheet |
A766 | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 20 V | 60mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 72.5 mA @ 120 Hz | 1.45 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A750BG227M0JAAE020CAP ALUM POLY 220UF 20% 6.3V TH |
17,846 |
|
Datasheet |
A750 | Bulk | Active | Polymer | 220 µF | ±20% | 6.3 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
A758BG106M1EDAE070CAP ALUM POLY 10UF 20% 25V TH |
13,379 |
|
Datasheet |
A758 | Cut Tape (CT) | Active | Polymer | 10 µF | ±20% | 25 V | 70mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 37.5 mA @ 120 Hz | 750 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
A758EK107M1CAAE018CAP ALUM POLY 100UF 20% 16V TH |
5,029 |
|
Datasheet |
A758 | Bulk | Active | Polymer | 100 µF | ±20% | 16 V | 18mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 145 mA @ 120 Hz | 2.9 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
A750BK107M1AAAE024CAP ALUM POLY 100UF 20% 10V TH |
6,550 |
|
Datasheet |
A750 | Bulk | Active | Polymer | 100 µF | ±20% | 10 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 124.5 mA @ 120 Hz | 2.49 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
A765BG227M0JLAE020CAP ALUM POLY 220UF 20% 6.3V SMD |
13,581 |
|
Datasheet |
A765 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 135 mA @ 120 Hz | 2.7 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.287" (7.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
875105240001CAP ALUM POLY 10UF 20% 10V SMD |
4,223 |
|
Datasheet |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 10 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 60 mA @ 120 Hz | 1.2 A @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
|
|
875105142001CAP ALUM POLY 47UF 20% 6.3V SMD |
3,949 |
|
Datasheet |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 6.3 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 98.5 mA @ 120 Hz | 1.97 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
A750EK476M1EAAE040CAP ALUM POLY 47UF 20% 25V TH |
30,561 |
|
Datasheet |
A750 | Bulk | Active | Polymer | 47 µF | ±20% | 25 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 145 mA @ 120 Hz | 2.9 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
A768EB107M1ELAE036CAP ALUM POLY 100UF 20% 25V SMD |
16,935 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 25 V | 36mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 62.75 mA @ 120 Hz | 1.255 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
