Aluminum Electrolytic Capacitors

Mfr. Part #	Availability	Quantity	Datasheet	Series	Packaging	Product Status	Capacitance	Tolerance	Voltage - Rated	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Operating Temperature	Polarization	Ratings	Applications	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Impedance	Lead Spacing	Size / Dimension	Height - Seated (Max)	Surface Mount Land Size	Mounting Type
PL2W101MND2225RP CAP ALUM 100UF 20% 450V SNAP TH Chinsan (Elite)	66	RFQ	Datasheet	PL	Bulk	Active	100 µF	±20%	450 V	2.4Ohm @ 120Hz	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	700 mA @ 120 Hz	1.001 A @ 100 kHz	1.36 Ohms	0.394" (10.00mm)	0.866" Dia (22.00mm)	1.063" (27.00mm)	-	Through Hole
VZH102M1VTR-1616S CAP ALUM 1000UF 20% 35V SMD SURGE	800	RFQ	Datasheet	VZH	Tape & Reel (TR)	Active	1000 µF	±20%	35 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	-	1.26 A @ 100 kHz	54 mOhms	-	0.630" Dia (16.00mm)	0.669" (17.00mm)	0.669" L x 0.669" W (17.00mm x 17.00mm)	Surface Mount
UPW1A562MHD6TN CAP ALUM 5600UF 20% 10V RADIAL Nichicon	87	RFQ	Datasheet	UPW	Cut Tape (CT)	Not For New Designs	5600 µF	±20%	10 V	-	8000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	2.117 A @ 120 Hz	2.49 A @ 100 kHz	28 mOhms	0.295" (7.50mm)	0.709" Dia (18.00mm)	0.866" (22.00mm)	-	Through Hole
UCZ1A331MCS1GS CAP ALUM 330UF 20% 10V SMD Nichicon	500	RFQ	Datasheet	UCZ	Tape & Reel (TR)	Active	330 µF	±20%	10 V	150mOhm @ 100kHz	3000 Hrs @ 125°C	-40°C ~ 125°C	Polar	AEC-Q200	General Purpose	250 mA @ 120 Hz	500 mA @ 100 kHz	-	-	0.394" Dia (10.00mm)	0.425" (10.80mm)	0.406" L x 0.406" W (10.30mm x 10.30mm)	Surface Mount
EEV-EB2W100SM CAP ALUM 10UF 20% 450V SMD Panasonic Electronic Components	0	RFQ	Datasheet	EB	Tape & Reel (TR)	Obsolete	10 µF	±20%	450 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	155 mA @ 120 Hz	310 mA @ 100 kHz	-	-	0.709" Dia (18.00mm)	0.669" (17.00mm)	0.748" L x 0.748" W (19.00mm x 19.00mm)	Surface Mount
UAS2G270MHD CAP ALUM 27UF 20% 400V RADIAL TH Nichicon	82	RFQ	Datasheet	UAS	Bulk	Active	27 µF	±20%	400 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	200 mA @ 120 Hz	320 mA @ 10 kHz	-	0.197" (5.00mm)	0.492" Dia (12.50mm)	1.063" (27.00mm)	-	Through Hole
UPJ2V330MHD CAP ALUM 33UF 20% 350V RADIAL TH Nichicon	29	RFQ	Datasheet	UPJ	Bulk	Obsolete	33 µF	±20%	350 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	190 mA @ 120 Hz	304 mA @ 10 kHz	-	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.457" (37.00mm)	-	Through Hole
PV2W680MNN1825RA CAP ALUM 68UF 20% 450V RADIAL TH Chinsan (Elite)	95	RFQ	Datasheet	PV	Bulk	Active	68 µF	±20%	450 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	580 mA @ 120 Hz	870 mA @ 100 kHz	2.39 Ohms	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.043" (26.50mm)	-	Through Hole
UHE0J123MHD6 CAP ALUM 12000UF 20% 6.3V RADIAL Nichicon	88	RFQ	Datasheet	UHE	Bulk	Active	12000 µF	±20%	6.3 V	-	8000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	3.336 A @ 120 Hz	4.17 A @ 100 kHz	15 mOhms	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.240" (31.50mm)	-	Through Hole
PK2H680MND2225RY CAP ALUM 68UF 20% 500V SNAP TH Chinsan (Elite)	80	RFQ	Datasheet	PK	Bulk	Active	68 µF	±20%	500 V	-	3000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	600 mA @ 120 Hz	858 mA @ 50 kHz	-	0.394" (10.00mm)	0.866" Dia (22.00mm)	1.063" (27.00mm)	-	Through Hole
EEV-EB2W3R3Q CAP ALUM 3.3UF 20% 450V SMD Panasonic Electronic Components	72	RFQ	Datasheet	EB	Tape & Reel (TR)	Obsolete	3.3 µF	±20%	450 V	-	4000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	20.5 mA @ 120 Hz	41 mA @ 100 kHz	-	-	0.394" Dia (10.00mm)	0.669" (17.00mm)	0.406" L x 0.406" W (10.30mm x 10.30mm)	Surface Mount
UKT1A682MHD CAP ALUM 6800UF 20% 10V RADIAL Nichicon	50	RFQ	Datasheet	UKT	Bulk	Not For New Designs	6800 µF	±20%	10 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	-	-	Audio	1.57 A @ 120 Hz	1.8055 A @ 10 kHz	-	0.197" (5.00mm)	0.492" Dia (12.50mm)	1.575" (40.00mm)	-	Through Hole
MW2W820MNN1625A4E CAP ALUM 82UF 20% 450V RADIAL TH Chinsan (Elite)	40	RFQ	Datasheet	MW	Bulk	Active	82 µF	±20%	450 V	850mOhm @ 120Hz	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	700 mA @ 120 Hz	1.1 A @ 100 kHz	430 mOhms	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.043" (26.50mm)	-	Through Hole
UPM1A562MHD CAP ALUM 5600UF 20% 10V RADIAL Nichicon	54	RFQ	Datasheet	UPM	Bulk	Not For New Designs	5600 µF	±20%	10 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	2.34 A @ 120 Hz	2.61 A @ 10 kHz	21 mOhms	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.476" (37.50mm)	-	Through Hole
UPZ2G560MND9 CAP ALUM 56UF 20% 400V RADIAL TH Nichicon	57	RFQ	Datasheet	UPZ	Bulk	Last Time Buy	56 µF	±20%	400 V	-	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	520 mA @ 120 Hz	780 mA @ 10 kHz	-	0.197" (5.00mm)	0.394" Dia (10.00mm)	2.047" (52.00mm)	-	Through Hole
EY1H222MNN18P1E CAP ALUM 2200UF 20% 50V RADIAL Chinsan (Elite)	59	RFQ	Datasheet	EY	Bulk	Active	2200 µF	±20%	50 V	-	10000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	2.28 A @ 120 Hz	3.8 A @ 100 kHz	20 mOhms	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.457" (37.00mm)	-	Through Hole

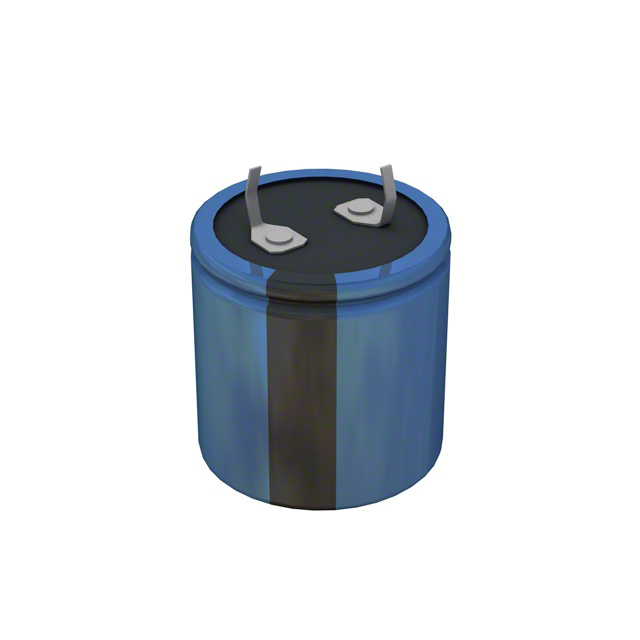

381LX820M400J012 CAP ALUM 82UF 20% 400V SNAP TH Cornell Dubilier Knowles	0	RFQ	Datasheet	381LX	Bulk	Active	82 µF	±20%	400 V	-	3000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	600 mA @ 120 Hz	900 mA @ 20 kHz	-	0.394" (10.00mm)	0.984" Dia (25.00mm)	1.063" (27.00mm)	-	Through Hole
UCYW6560MHD CAP ALUM 56UF 20% 420V RADIAL TH Nichicon	30	RFQ	Datasheet	UCY	Bulk	Active	56 µF	±20%	420 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	AEC-Q200	General Purpose	570 mA @ 120 Hz	1.14 A @ 100 kHz	-	0.197" (5.00mm)	0.492" Dia (12.50mm)	1.634" (41.50mm)	-	Through Hole
UPX1V471MHD CAP ALUM 470UF 20% 35V RADIAL TH Nichicon	67	RFQ	Datasheet	UPX	Bulk	Obsolete	470 µF	±20%	35 V	-	20000 Hrs @ 105°C	-55°C ~ 105°C	-	-	General Purpose	1.26 A @ 120 Hz	1.68 A @ 100 kHz	-	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.299" (33.00mm)	-	Through Hole
SK220M350ST CAP ALUM 22UF 20% 350V RADIAL TH Cornell Dubilier Knowles	45	RFQ	Datasheet	SK	Bulk	Active	22 µF	±20%	350 V	12.06Ohm @ 120Hz	2000 Hrs @ 85°C	-25°C ~ 85°C	Polar	-	General Purpose	110 mA @ 120 Hz	-	-	0.197" (5.00mm)	0.512" Dia (13.00mm)	0.906" (23.00mm)	-	Through Hole

Total 95881 Record«Prev 1... 976 977 978 979980981 982 983...4795 Next»

Aluminum Electrolytic Capacitors Electronic Components

Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.

Frequently Asked Questions

Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.

Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.

Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.

Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
