Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UWJ0J330MCL1GBCAP ALUM 33UF 20% 6.3V SMD |
810 |
|
Datasheet |
UWJ | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 37 mA @ 120 Hz | 55.5 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
6.3MS5100MEFC6.3X5CAP ALUM 100UF 20% 6.3V RADIAL |
798 |
|
Datasheet |
MS5 | Bulk | Obsolete | 100 µF | ±20% | 6.3 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 62 mA @ 120 Hz | 74.4 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.256" (6.50mm) | - | Through Hole | |
|
UVZ2C010MEDCAP ALUM 1UF 20% 160V RADIAL TH |
796 |
|
Datasheet |
UVZ | Bulk | Obsolete | 1 µF | ±20% | 160 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16 mA @ 120 Hz | 25.6 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPM1H4R7MDD1TDCAP ALUM 4.7UF 20% 50V RADIAL TH |
772 |
|
Datasheet |
UPM | Cut Tape (CT) | Obsolete | 4.7 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 40 mA @ 120 Hz | - | 2.2 Ohms | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
ED1J470MP51013ECAP ALUM 47UF 20% 63V RADIAL TH |
757 |
|
Datasheet |
ED | Cut Tape (CT) | Active | 47 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 195 mA @ 120 Hz | 650 mA @ 100 kHz | 280 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole | |
|
|
UVZ1J330MED1TACAP ALUM 33UF 20% 63V RADIAL TH |
756 |
|
Datasheet |
UVZ | Cut Tape (CT) | Obsolete | 33 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 200 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
EL1C681MP51016UCAP ALUM 680UF 20% 16V RADIAL TH |
679 |
|
Datasheet |
EL | Cut Tape (CT) | Active | 680 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.0725 A @ 120 Hz | 1.43 A @ 100 kHz | 65 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
|
EJ1C471MP51012CAP ALUM 470UF 20% 16V RADIAL TH |
665 |
|
Datasheet |
EJ | Cut Tape (CT) | Active | 470 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 478.8 mA @ 120 Hz | 840 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
|
EJ1C681MP51016UCAP ALUM 680UF 20% 16V RADIAL TH |
656 |
|
Datasheet |
EJ | Cut Tape (CT) | Active | 680 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 684 mA @ 120 Hz | 1.2 A @ 100 kHz | 68 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
|
UPM1C470MDD1TDCAP ALUM 47UF 20% 16V RADIAL TH |
613 |
|
Datasheet |
UPM | Cut Tape (CT) | Obsolete | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 92 mA @ 120 Hz | 155 mA @ 10 kHz | 800 mOhms | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
EK1C681MP51012UCAP ALUM 680UF 20% 16V RADIAL TH |
572 |
|
Datasheet |
EK | Cut Tape (CT) | Active | 680 µF | ±20% | 16 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 650 mA @ 120 Hz | 1.3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
|
EJ1H101MP51016CAP ALUM 100UF 20% 50V RADIAL TH |
563 |
|
Datasheet |
EJ | Cut Tape (CT) | Active | 100 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 212.1 mA @ 120 Hz | 707 mA @ 100 kHz | 900 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
|
UVZ0J331MEDCAP ALUM 330UF 20% 6.3V RADIAL |
501 |
|
Datasheet |
UVZ | Bulk | Obsolete | 330 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 195 mA @ 120 Hz | 292.5 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
860010475014CAP ALUM 560UF 20% 25V RADIAL TH |
483 |
|
Datasheet |
WCAP-ATG8 | Cut Tape (CT) | Active | 560 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 693 mA @ 120 Hz | 956.34 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|

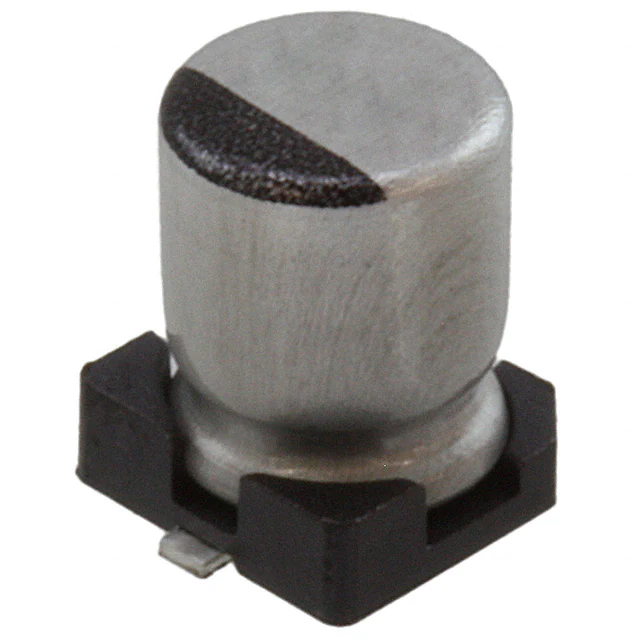

16SEV10M4X5.5CAP ALUM 10UF 20% 16V SMD |
467 |
|
Datasheet |
SEV | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 25 mA @ 120 Hz | 37.5 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
EJ1V331MP51016F4UCAP ALUM 330UF 20% 35V RADIAL TH |
402 |
|
Datasheet |
EJ | Cut Tape (CT) | Active | 330 µF | ±20% | 35 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 689.7 mA @ 120 Hz | 1.21 A @ 100 kHz | 60 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
|
EV1V331MP51012EUCAP ALUM 330UF 20% 35V RADIAL TH |
385 |
|
Datasheet |
EV | Cut Tape (CT) | Active | 330 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 680 mA @ 120 Hz | 1.36 A @ 100 kHz | 53 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
|
EL1V331MP51016UCAP ALUM 330UF 20% 35V RADIAL TH |
362 |
|
Datasheet |
EL | Cut Tape (CT) | Active | 330 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 886.6 mA @ 120 Hz | 1.43 A @ 100 kHz | 38 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
UVR2C4R7MEDCAP ALUM 4.7UF 20% 160V RADIAL |
341 |
|
Datasheet |
UVR | Bulk | Obsolete | 4.7 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 80 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UHE1C560MDDCAP ALUM 56UF 20% 16V RADIAL TH |
333 |
|
Datasheet |
UHE | Bulk | Obsolete | 56 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 147 mA @ 120 Hz | 210 mA @ 100 kHz | 580 mOhms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
