Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNK2W682MSEHCAP ALUM 6800UF 20% 450V SCREW |
3 |
|
Datasheet |
LNK | Bulk | Active | 6800 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 20.7 A @ 120 Hz | 28.98 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 6.102" (155.00mm) | - | Chassis Mount | |
|
LNT1K154MSECAP ALUM 150000UF 20% 80V SCREW |
8 |
|
Datasheet |
LNT | Bulk | Active | 150000 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 21.6 A @ 120 Hz | 24.84 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
CGS142T450W5CCAP ALUM 1400UF 450V SCREW CHAS |
2 |
|
Datasheet |
CGS | Bulk | Active | 1400 µF | -10%, +50% | 450 V | 60mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.1 A @ 120 Hz | 10.65 A @ 10 kHz | - | - | 2.500" Dia (63.50mm) | 5.125" (130.18mm) | - | Chassis Mount | |
|
LNT2E153MSECAP ALUM 15000UF 20% 250V SCREW |
5 |
|
Datasheet |
LNT | Bulk | Active | 15000 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 12.7 A @ 120 Hz | 15.24 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.811" (173.00mm) | - | Chassis Mount | |
|
LNT2W562MSEHCAP ALUM 5600UF 20% 450V SCREW |
9 |
|
Datasheet |
LNT | Bulk | Active | 5600 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 26.4 A @ 120 Hz | 36.96 A @ 10 kHz | - | 0.500" (12.70mm) | 3.000" Dia (76.20mm) | 7.480" (190.00mm) | - | Chassis Mount | |
|
DCMX512U350DG2BCAP ALUM 5100UF 350V SCREW CHAS |
17 |
|
Datasheet |
DCMX | Bulk | Active | 5100 µF | -10%, +75% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 8.687" (220.65mm) | - | Chassis Mount | |
|
LNT2G682MSEJCAP ALUM 6800UF 20% 400V SCREW |
4 |
|
Datasheet |
LNT | Bulk | Active | 6800 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 26.9 A @ 120 Hz | 37.66 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.024" (153.00mm) | - | Chassis Mount | |
|
DCMC822T450DG2BCAP ALUM 8200UF 450V SCREW CHAS |
0 |
|
Datasheet |
DCMC | Bulk | Active | 8200 µF | -10%, +50% | 450 V | 19mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 8.625" (219.08mm) | - | Chassis Mount | |
|
B43704A5688M000CAP ALUM 6800UF 20% 450V SCREW |
16 |
|
Datasheet |
B43704 | Bulk | Active | 6800 µF | ±20% | 450 V | 15mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24 A @ 100 Hz | - | 24 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 6.181" (157.00mm) | - | Chassis Mount | |
|
CGH312T450W5LCAP ALUM 3100UF 450V SCREW CHAS |
17 |
|
Datasheet |
CGH | Bulk | Active | 3100 µF | -10%, +50% | 450 V | 31.7mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.1 A @ 120 Hz | 12.423 A @ 10 kHz | - | - | 2.500" Dia (63.50mm) | 5.625" (142.88mm) | - | Chassis Mount | |
1C.jpg)
|
MLP131M400EK1CCAP ALUM 130UF 20% 400V FLTPCK |
10 |
|
Datasheet |
MLP | Bulk | Active | 130 µF | ±20% | 400 V | 1.32Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.2 A @ 20 kHz | - | 1.000" (25.40mm) | 1.500" L x 1.750" W (38.10mm x 44.45mm) | 0.500" (12.70mm) | - | Through Hole | |
|
LNX2H562MSEJCAP ALUM 5600UF 20% 500V SCREW |
6 |
|
Datasheet |
LNX | Bulk | Active | 5600 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 15.9 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.024" (153.00mm) | - | Chassis Mount | |
|

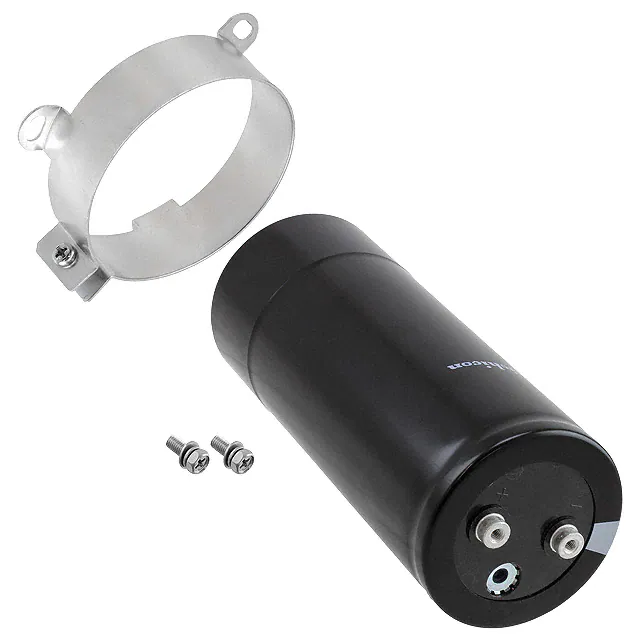

LNT2H472MSEHCAP ALUM 4700UF 20% 500V SCREW |
4 |
|
Datasheet |
LNT | Bulk | Active | 4700 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 17.2 A @ 120 Hz | 24.08 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 7.598" (193.00mm) | - | Chassis Mount | |
|
|
LNT1C105MSECAP ALUM 1F 20% 16V SCREW CHAS M |
2 |
|
Datasheet |
LNT | Bulk | Active | 1 F | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 26.1 A @ 120 Hz | 30.015 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
LNR2D473MSECAP ALUM 47000UF 20% 200V SCREW |
5 |
|
Datasheet |
LNR | Bulk | Active | 47000 µF | ±20% | 200 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 20.9 A @ 120 Hz | 25.08 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
LNY2V223MSEJCAP ALUM 22000UF 20% 350V SCREW |
4 |
|
Datasheet |
LNY | Bulk | Active | 22000 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 35.4 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.480" (190.00mm) | - | Chassis Mount | |
|
LQR2W103MSEJCAP ALUM 10000UF 20% 450V SCREW |
2 |
|
Datasheet |
LQR | Bulk | Active | 10000 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 31.3 A @ 120 Hz | 43.82 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.598" (193.00mm) | - | Chassis Mount | |
.JPG)
|
LNY2W103MSEHCAP ALUM 10000UF 20% 450V SCREW |
10 |
|
Datasheet |
LNY | Bulk | Active | 10000 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23 A @ 120 Hz | 32.2 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 8.268" (210.00mm) | - | Chassis Mount | |
|
LNX2L562MSEJCAP ALUM 5600UF 20% 550V SCREW |
11 |
|
Datasheet |
LNX | Bulk | Active | 5600 µF | ±20% | 550 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16.6 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.598" (193.00mm) | - | Chassis Mount | |
|
|
LNR1C105MSECAP ALUM 1F 20% 16V SCREW CHAS M |
6 |
|
Datasheet |
LNR | Bulk | Active | 1 F | ±20% | 16 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 36 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount |
