Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
450PK22MEFC12.5X25CAP ALUM 22UF 20% 450V RADIAL TH |
43 |
|
Datasheet |
PK | Bulk | Active | 22 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 210 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|

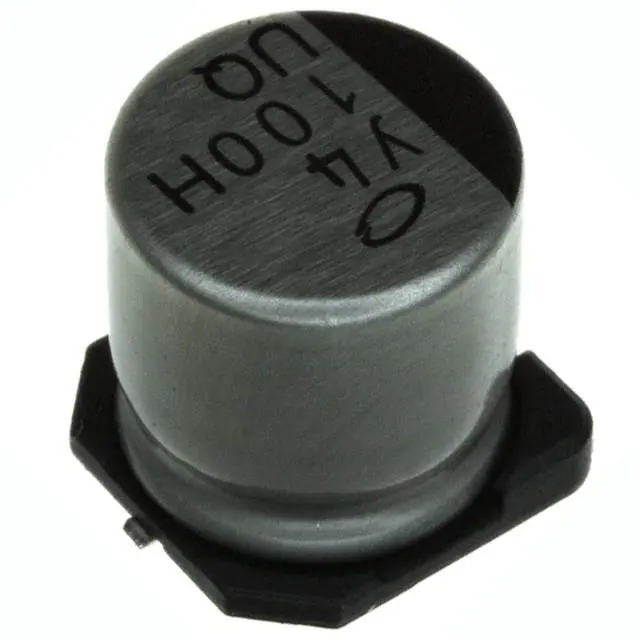

UUQ1E221MCL1GSCAP ALUM 220UF 20% 25V SMD |
500 |
|
Datasheet |
UUQ | Tape & Reel (TR) | Active | 220 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Audio | 300 mA @ 120 Hz | 450 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EKMG6R3ELL682MK25SCAP ALUM 6800UF 20% 6.3V RADIAL |
39 |
|
Datasheet |
KMG | Bulk | Active | 6800 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.458 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EEE-FK1C561SVCAP ALUM 560UF 20% 16V SMD |
500 |
|
Datasheet |
FKS, Anti-Vibration | Tape & Reel (TR) | Not For New Designs | 560 µF | ±20% | 16 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UCA2D101MHD1TNCAP ALUM 100UF 20% 200V RADIAL |
47 |
|
Datasheet |
UCA | Cut Tape (CT) | Not For New Designs | 100 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 1.28 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UFW0J223MHDCAP ALUM 22000UF 20% 6.3V RADIAL |
30 |
|
Datasheet |
UFW | Bulk | Not For New Designs | 22000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.2 A @ 120 Hz | 3.68 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
UCZ1K220MCS6GSCAP ALUM 22UF 20% 80V SMD |
1,000 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Active | 22 µF | ±20% | 80 V | 750mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 35 mA @ 120 Hz | 70 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UVK1C682MHD1TNCAP ALUM 6800UF 20% 16V RADIAL |
593 |
|
Datasheet |
UVK | Cut Tape (CT) | Active | 6800 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.25 A @ 120 Hz | 2.5875 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
860160578033CAP ALUM 1200UF 20% 35V RADIAL |
91 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 1200 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 2.292 A @ 100 kHz | 52 mOhms | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
860020280027CAP ALUM 6800UF 20% 10V RADIAL |
57 |
|
Datasheet |
WCAP-ATG5 | Cut Tape (CT) | Active | 6800 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.67 A @ 120 Hz | 2.1376 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UVK2A331MHD1TOCAP ALUM 330UF 20% 100V RADIAL |
500 |
|
Datasheet |
UVK | Cut Tape (CT) | Active | 330 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 760 mA @ 120 Hz | 1.14 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
UVK2V330MHD1TOCAP ALUM 33UF 20% 350V RADIAL TH |
67 |
|
Datasheet |
UVK | Cut Tape (CT) | Active | 33 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 240 mA @ 120 Hz | 384 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
URZ1A332MHD1TNCAP ALUM 3300UF 20% 10V RADIAL |
49 |
|
Datasheet |
URZ | Cut Tape (CT) | Active | 3300 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 940 mA @ 120 Hz | 1.081 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
35JXF820MEFC10X25CAP ALUM 820UF 20% 35V RADIAL TH |
56 |
|
Datasheet |
JXF | Bulk | Active | 820 µF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.026 A @ 120 Hz | - | 37 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UPW1A562MHD1TNCAP ALUM 5600UF 20% 10V RADIAL |
65 |
|
Datasheet |
UPW | Cut Tape (CT) | Not For New Designs | 5600 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.176 A @ 120 Hz | 2.56 A @ 100 kHz | 22 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
860080378026CAP ALUM 3300UF 20% 16V RADIAL |
58 |
|
Datasheet |
WCAP-ATLI | Cut Tape (CT) | Active | 3300 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 3.49 A @ 100 kHz | 18 mOhms | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 1.437" (36.50mm) | - | Through Hole | |
|
URZ2D470MHD6TNCAP ALUM 47UF 20% 200V RADIAL TH |
252 |
|
Datasheet |
URZ | Cut Tape (CT) | Active | 47 µF | ±20% | 200 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 480 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UKA1A472MHDCAP ALUM 4700UF 20% 10V RADIAL |
27 |
|
Datasheet |
UKA | Bulk | Not For New Designs | 4700 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio | 1.3 A @ 120 Hz | 1.495 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UCX1V470MCS1GSCAP ALUM 47UF 20% 35V SMD |
500 |
|
Datasheet |
UCX | Tape & Reel (TR) | Not For New Designs | 47 µF | ±20% | 35 V | 200mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | General Purpose | 135 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.571" (14.50mm) | 0.535" L x 0.535" W (13.60mm x 13.60mm) | Surface Mount | |
|
EEE-FN1E821UVCAP ALUM 820UF 20% 25V SMD |
500 |
|
Datasheet |
FN, Anti-Vibration | Tape & Reel (TR) | Active | 820 µF | ±20% | 25 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
