Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
860010575014CAP ALUM 560UF 20% 35V RADIAL TH |
412 |
|
Datasheet |
WCAP-ATG8 | Cut Tape (CT) | Active | 560 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 847 mA @ 120 Hz | 1.16886 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UPS2F4R7MPD1TDCAP ALUM 4.7UF 20% 315V RADIAL |
275 |
|
Datasheet |
UPS | Cut Tape (CT) | Not For New Designs | 4.7 µF | ±20% | 315 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 45 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
16SJV47M6.3X6.1CAP ALUM 47UF 20% 16V SMD |
210 |
|
Datasheet |
SJV | Tape & Reel (TR) | Active | 47 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 75 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPJ0J821MPD6TDCAP ALUM 820UF 20% 6.3V RADIAL |
61 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 820 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 635 mA @ 120 Hz | 750 mA @ 10 kHz | 150 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UPW1C331MPD1TACAP ALUM 330UF 20% 16V RADIAL TH |
1,879 |
|
Datasheet |
UPW | Cut Tape (CT) | Not For New Designs | 330 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 360.75 mA @ 120 Hz | - | 117 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UCD1V680MCL1GSCAP ALUM 68UF 20% 35V SMD |
1,630 |
|
Datasheet |
UCD | Tape & Reel (TR) | Active | 68 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 145 mA @ 120 Hz | 290 mA @ 100 kHz | 320 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

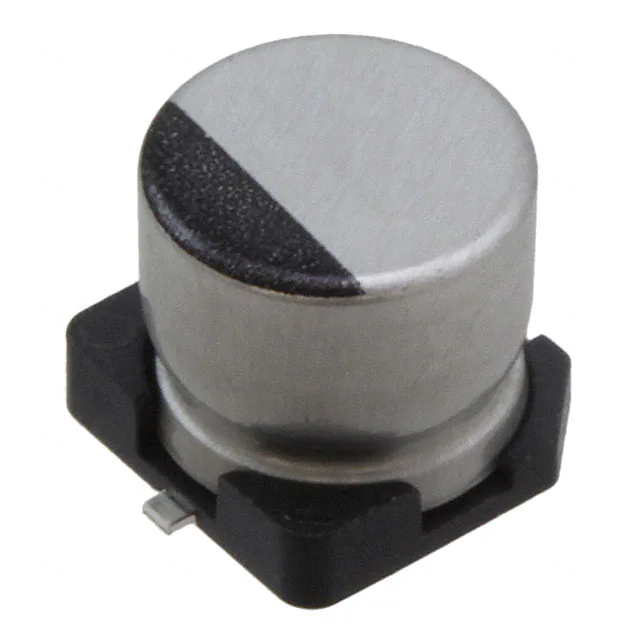

6.3SGV100M6.3X6.1CAP ALUM 100UF 20% 6.3V SMD |
1,030 |
|
Datasheet |
SGV | Tape & Reel (TR) | Active | 100 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 71 mA @ 120 Hz | 85.2 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
50YXS150MEFC8X16CAP ALUM 150UF 20% 50V RADIAL TH |
614 |
|
Datasheet |
YXS | Bulk | Active | 150 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 455 mA @ 120 Hz | 910 mA @ 100 kHz | 91 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
860020775018CAP ALUM 180UF 20% 63V RADIAL TH |
488 |
|
Datasheet |
WCAP-ATG5 | Cut Tape (CT) | Active | 180 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 310 mA @ 120 Hz | 427.8 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
16SGV220M8X10.5CAP ALUM 220UF 20% 16V SMD |
376 |
|
Datasheet |
SGV | Tape & Reel (TR) | Active | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 185 mA @ 120 Hz | 222 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UPS0J471MPD1TDCAP ALUM 470UF 20% 6.3V RADIAL |
139 |
|
Datasheet |
UPS | Cut Tape (CT) | Not For New Designs | 470 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 291.1 mA @ 120 Hz | 410 mA @ 100 kHz | 280 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UVY1J680MPD1TDCAP ALUM 68UF 20% 63V RADIAL TH |
32 |
|
Datasheet |
UVY | Cut Tape (CT) | Active | 68 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 155 mA @ 120 Hz | 310 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
25SGV33M6.3X6.1CAP ALUM 33UF 20% 25V SMD |
1,528 |
|
Datasheet |
SGV | Tape & Reel (TR) | Active | 33 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 65 mA @ 120 Hz | 97.5 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UUX1A331MNL6GSCAP ALUM 330UF 20% 10V SMD |
1,491 |
|
Datasheet |
UUX | Tape & Reel (TR) | Active | 330 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 296 mA @ 120 Hz | 384.8 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
865250449006CAP ALUM 33UF 20% 25V SMD |
993 |
|
Datasheet |
WCAP-ASNP | Tape & Reel (TR) | Active | 33 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 55 mA @ 120 Hz | 82.5 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.256" (6.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UPM1C271MPD1TDCAP ALUM 270UF 20% 16V RADIAL TH |
924 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 270 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 410 mA @ 120 Hz | - | 140 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UPM1C271MPD6CAP ALUM 270UF 20% 16V RADIAL TH |
903 |
|
Datasheet |
UPM | Bulk | Not For New Designs | 270 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 470 mA @ 120 Hz | - | 140 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole | |
|
|
6.3YXS820MEFC8X16CAP ALUM 820UF 20% 6.3V RADIAL |
893 |
|
Datasheet |
YXS | Bulk | Active | 820 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 1.05 A @ 100 kHz | 69 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
860160275027CAP ALUM 820UF 20% 10V RADIAL TH |
576 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 820 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 508.08 mA @ 120 Hz | 876 mA @ 100 kHz | 160 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
860160375029CAP ALUM 680UF 20% 16V RADIAL TH |
438 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 680 µF | ±20% | 16 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 605.52 mA @ 120 Hz | 1.044 A @ 100 kHz | 180 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
