Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UVR2E3R3MPD1TDCAP ALUM 3.3UF 20% 250V RADIAL |
801 |
|
Datasheet |
UVR | Cut Tape (CT) | Active | 3.3 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 46 mA @ 120 Hz | 73.6 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UPW0J471MPD1TDCAP ALUM 470UF 20% 6.3V RADIAL |
666 |
|
Datasheet |
UPW | Cut Tape (CT) | Not For New Designs | 470 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 416.25 mA @ 120 Hz | - | 117 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
860160475020CAP ALUM 330UF 20% 25V RADIAL TH |
591 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 330 µF | ±20% | 25 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 535.92 mA @ 120 Hz | 924 mA @ 100 kHz | 240 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
8AX620MEFC8X9CAP ALUM 620UF 20% 8V RADIAL TH |
509 |
|
Datasheet |
AX | Bulk | Not For New Designs | 620 µF | ±20% | 8 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | 49 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole | |
|
108CKS010MCAP ALUM 1000UF 20% 10V RADIAL |
420 |
|
Datasheet |
CKS | Bulk | Active | 1000 µF | ±20% | 10 V | 315mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Bypass, Decoupling | 795 mA @ 120 Hz | 1.113 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
25YXG330MEFC8X11.5CAP ALUM 330UF 20% 25V RADIAL TH |
417 |
|
Datasheet |
YXG | Bulk | Not For New Designs | 330 µF | ±20% | 25 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UWD1E150MCL1GSCAP ALUM 15UF 20% 25V SMD |
285 |
|
Datasheet |
UWD | Tape & Reel (TR) | Active | 15 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 75 mA @ 120 Hz | 150 mA @ 100 kHz | 760 mOhms | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
80ZLJ27M6.3X11CAP ALUM 27UF 20% 80V RADIAL TH |
223 |
|
Datasheet |
ZLJ | Bulk | Active | 27 µF | ±20% | 80 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 155.4 mA @ 120 Hz | 370 mA @ 100 kHz | 460 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVR2F2R2MPD1TDCAP ALUM 2.2UF 20% 315V RADIAL |
2,000 |
|
Datasheet |
UVR | Cut Tape (CT) | Active | 2.2 µF | ±20% | 315 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 33 mA @ 120 Hz | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UVZ1C331MPD1TDCAP ALUM 330UF 20% 16V RADIAL TH |
1,982 |
|
Datasheet |
UVZ | Cut Tape (CT) | Active | 330 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 265 mA @ 120 Hz | 397.5 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|

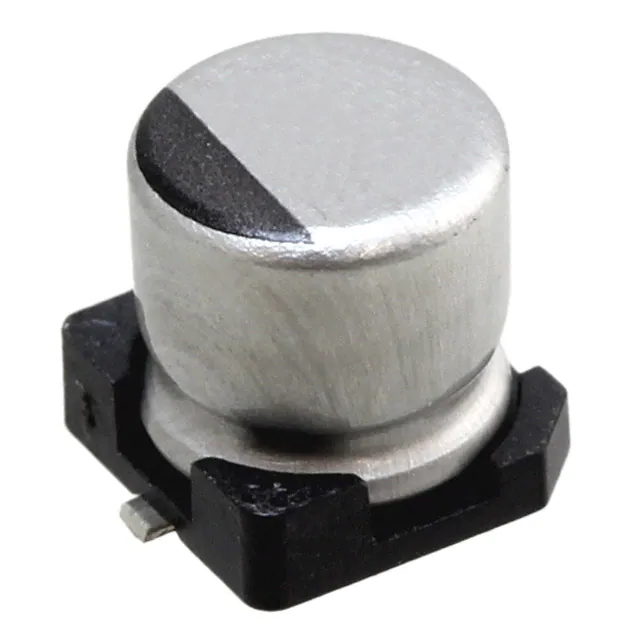

UWG1A330MCL1GBCAP ALUM 33UF 20% 10V SMD |
1,744 |
|
Datasheet |
UWG | Tape & Reel (TR) | Active | 33 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 47.5 mA @ 120 Hz | 95 mA @ 100 kHz | 1.8 Ohms | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
865090549007CAP ALUM 33UF 20% 35V SMD |
1,000 |
|
Datasheet |
WCAP-ASLU | Tape & Reel (TR) | Active | 33 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 62 mA @ 120 Hz | 93 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.256" (6.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UVK1E331MPD1TACAP ALUM 330UF 20% 25V RADIAL TH |
849 |
|
Datasheet |
UVK | Cut Tape (CT) | Active | 330 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 390 mA @ 120 Hz | 585 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
EEU-FC0J471BCAP ALUM 470UF 20% 6.3V RADIAL |
753 |
|
Datasheet |
FC | Cut Tape (CT) | Active | 470 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 416.25 mA @ 120 Hz | 555 mA @ 100 kHz | 117 mOhms | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UPM1J680MPD6TDCAP ALUM 68UF 20% 63V RADIAL TH |
727 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 68 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 310 mA @ 120 Hz | 495 mA @ 10 kHz | 190 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole | |
|
|
860160274024CAP ALUM 680UF 20% 10V RADIAL TH |
654 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 680 µF | ±20% | 10 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 382.8 mA @ 120 Hz | 660 mA @ 100 kHz | 210 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
860040775005CAP ALUM 82UF 20% 63V RADIAL TH |
578 |
|
Datasheet |
WCAP-ATUL | Cut Tape (CT) | Active | 82 µF | ±20% | 63 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 335 mA @ 120 Hz | 500 mA @ 100 kHz | 430 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
860130575004CAP ALUM 100UF 20% 35V RADIAL TH |
507 |
|
Datasheet |
WCAP-ATET | Cut Tape (CT) | Active | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 230 mA @ 120 Hz | 351.9 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
860130375007CAP ALUM 470UF 20% 16V RADIAL TH |
169 |
|
Datasheet |
WCAP-ATET | Cut Tape (CT) | Active | 470 µF | ±20% | 16 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 650 mA @ 120 Hz | 897 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
UPS1J470MPD1TDCAP ALUM 47UF 20% 63V RADIAL TH |
1,989 |
|
Datasheet |
UPS | Cut Tape (CT) | Not For New Designs | 47 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 52.7 mA @ 120 Hz | 310 mA @ 100 kHz | 650 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
