Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M39018/04-0042CAP ALUM SCREW |
15 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

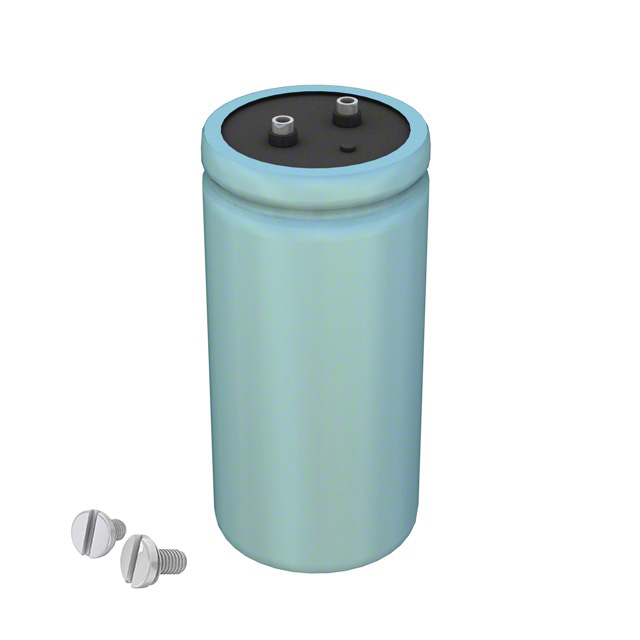

CGH462T450X5LCAP ALUM 4600UF 450V SCREW CHAS |
8 |
|
Datasheet |
CGH | Bulk | Active | 4600 µF | -10%, +50% | 450 V | 26.2mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.4 A @ 120 Hz | 15.252 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
860010272001CAP ALUM 22UF 20% 10V RADIAL TH |
912 |
|
Datasheet |
WCAP-ATG8 | Cut Tape (CT) | Active | 22 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 66 mA @ 120 Hz | 100.98 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
860010272004CAP ALUM 68UF 20% 10V RADIAL TH |
393 |
|
Datasheet |
WCAP-ATG8 | Cut Tape (CT) | Active | 68 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 132 mA @ 120 Hz | 201.96 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
860020272004CAP ALUM 68UF 20% 10V RADIAL TH |
339 |
|
Datasheet |
WCAP-ATG5 | Cut Tape (CT) | Active | 68 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 80 mA @ 120 Hz | 122.4 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
860130272001CAP ALUM 47UF 20% 10V RADIAL TH |
990 |
|
Datasheet |
WCAP-ATET | Cut Tape (CT) | Active | 47 µF | ±20% | 10 V | - | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 92 mA @ 120 Hz | 140.76 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
860160272006CAP ALUM 56UF 20% 10V RADIAL TH |
867 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 56 µF | ±20% | 10 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 74.88 mA @ 120 Hz | 144 mA @ 100 kHz | 1.47 Ohms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
860010273010CAP ALUM 330UF 20% 10V RADIAL TH |
476 |
|
Datasheet |
WCAP-ATG8 | Cut Tape (CT) | Active | 330 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 363 mA @ 120 Hz | 500.94 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
865230142002CAP ALUM 33UF 20% 6.3V SMD |
725 |
|
Datasheet |
WCAP-AS5H | Tape & Reel (TR) | Active | 33 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 32 mA @ 120 Hz | 48 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
860080673004CAP ALUM 39UF 20% 50V RADIAL TH |
404 |
|
Datasheet |
WCAP-ATLI | Cut Tape (CT) | Active | 39 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 300 mA @ 100 kHz | 280 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
860160373012CAP ALUM 120UF 20% 16V RADIAL TH |
266 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 120 µF | ±20% | 16 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 180.96 mA @ 120 Hz | 312 mA @ 100 kHz | 660 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
865080342004CAP ALUM 27UF 20% 16V SMD |
790 |
|
Datasheet |
WCAP-ASLI | Tape & Reel (TR) | Active | 27 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 110.5 mA @ 120 Hz | 170 mA @ 100 kHz | 740 mOhms | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
860160473009CAP ALUM 68UF 20% 25V RADIAL TH |
298 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 68 µF | ±20% | 25 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 156 mA @ 120 Hz | 300 mA @ 100 kHz | 970 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
860011373001CAP ALUM 0.47UF 20% 400V RADIAL |
217 |
|
Datasheet |
WCAP-ATG8 | Cut Tape (CT) | Active | 0.47 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12 mA @ 120 Hz | 20.4 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
865080242002CAP ALUM 27UF 20% 10V SMD |
995 |
|
Datasheet |
WCAP-ASLI | Tape & Reel (TR) | Active | 27 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 81.25 mA @ 120 Hz | 125 mA @ 100 kHz | 1.9 Ohms | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
865230343003CAP ALUM 33UF 20% 16V SMD |
990 |
|
Datasheet |
WCAP-AS5H | Tape & Reel (TR) | Active | 33 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 44 mA @ 120 Hz | 66 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
860010374011CAP ALUM 330UF 20% 16V RADIAL TH |
908 |
|
Datasheet |
WCAP-ATG8 | Cut Tape (CT) | Active | 330 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 407 mA @ 120 Hz | 561.66 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
865090440003CAP ALUM 10UF 20% 25V SMD |
625 |
|
Datasheet |
WCAP-ASLU | Tape & Reel (TR) | Active | 10 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 27 mA @ 120 Hz | 40.5 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
860010674013CAP ALUM 68UF 20% 50V RADIAL TH |
485 |
|
Datasheet |
WCAP-ATG8 | Cut Tape (CT) | Active | 68 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 220 mA @ 120 Hz | 336.6 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
865080343007CAP ALUM 56UF 20% 16V SMD |
285 |
|
Datasheet |
WCAP-ASLI | Tape & Reel (TR) | Active | 56 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 143 mA @ 120 Hz | 220 mA @ 100 kHz | 560 mOhms | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
