Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS80A432MF400CAP ALUM 4300UF 20% 400V SCREW |
23 |
|
Datasheet |
ALS80 | Bulk | Active | 4300 µF | ±20% | 400 V | 38mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11.6 A @ 100 Hz | 19.8 A @ 10 kHz | 22 mOhms | 1.122" (28.50mm) | 2.598" Dia (66.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
CGS103U050R4CCAP ALUM 10000UF 50V SCREW CHAS |
4 |
|
Datasheet |
CGS | Bulk | Active | 10000 µF | -10%, +75% | 50 V | 17mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.5 A @ 120 Hz | 11.05 A @ 10 kHz | - | 0.500" (12.70mm) | 1.375" Dia (34.93mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
LNR1H104MSECAP ALUM 100000UF 20% 50V SCREW |
23 |
|
Datasheet |
LNR | Bulk | Active | 100000 µF | ±20% | 50 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.2 A @ 120 Hz | 16.33 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|

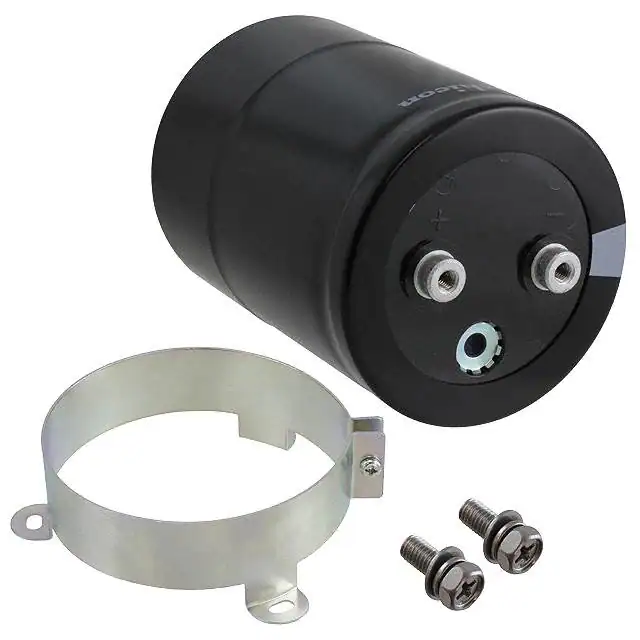

LNX2G332MSEHCAP ALUM 3300UF 20% 400V SCREW |
7 |
|
Datasheet |
LNX | Bulk | Active | 3300 µF | ±20% | 400 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12.4 A @ 120 Hz | 17.36 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
CGS651T350V3CCAP ALUM 650UF 350V SCREW CHAS M |
0 |
|
Datasheet |
CGS | Bulk | Active | 650 µF | -10%, +50% | 350 V | 212mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 4.05 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 3.125" (79.38mm) | - | Chassis Mount | |
|
|
CGS503U016V3CCAP ALUM 50000UF 16V SCREW CHAS |
5 |
|
Datasheet |
CGS | Bulk | Active | 50000 µF | -10%, +75% | 16 V | 11mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.7 A @ 120 Hz | 15.21 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 3.125" (79.38mm) | - | Chassis Mount | |
|
LNC2V472MSEHCAP ALUM 4700UF 20% 350V SCREW |
6 |
|
Datasheet |
LNC | Bulk | Active | 4700 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.7 A @ 120 Hz | 21.98 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
|
CGS632U075R5LCAP ALUM 6300UF 75V SCREW CHAS M |
10 |
|
Datasheet |
CGS | Bulk | Active | 6300 µF | -10%, +75% | 75 V | 17mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.8 A @ 120 Hz | 12.74 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
LNX2V472MSEHCAP ALUM 4700UF 20% 350V SCREW |
15 |
|
Datasheet |
LNX | Bulk | Active | 4700 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 14 A @ 120 Hz | 19.6 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 3.937" (100.00mm) | - | Chassis Mount | |
|
PSU10830BCAP ALUM 108UF 330V QC CHAS MT |
2 |
|
Datasheet |
PSU | Bulk | Active | 108 µF | 0%, +20% | 330 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 2.063" Dia (52.40mm) | 4.435" (112.65mm) | - | Chassis Mount | |
|

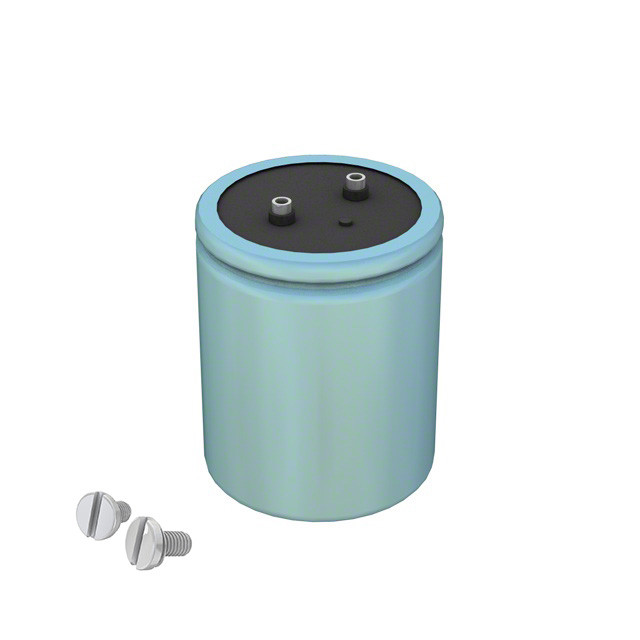

CG562U150X3LCAP ALUM 5600UF 150V SCREW CHAS |
8 |
|
Datasheet |
CG | Bulk | Active | 5600 µF | -10%, +75% | 150 V | 14mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17 A @ 120 Hz | 20.57 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 3.625" (92.08mm) | - | Chassis Mount | |
|
|
PSU12430ACAP ALUM 124UF 330V QC CHAS MT |
5 |
|
Datasheet |
PSU | Bulk | Active | 124 µF | 0%, +20% | 330 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 2.063" Dia (52.40mm) | 4.435" (112.65mm) | - | Chassis Mount | |
|
DCM253U075DJ2BCAP ALUM 25000UF 75V SCREW CHAS |
5 |
|
Datasheet |
DCM | Bulk | Active | 25000 µF | -10%, +75% | 75 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 3.687" (93.65mm) | - | Chassis Mount | |
|
|
CGS321T450V3CCAP ALUM 320UF 450V SCREW CHAS M |
4 |
|
Datasheet |
CGS | Bulk | Active | 320 µF | -10%, +50% | 450 V | 253mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.75 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 3.125" (79.38mm) | - | Chassis Mount | |
|
|
CGS183U050V3CCAP ALUM 18000UF 50V SCREW CHAS |
4 |
|
Datasheet |
CGS | Bulk | Active | 18000 µF | -10%, +75% | 50 V | 34mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.8 A @ 120 Hz | 8.84 A @ 10 kHz | - | 0.875" (22.22mm) | 2.000" Dia (50.80mm) | 3.125" (79.38mm) | - | Chassis Mount | |
|
LNR1K683MSECAP ALUM 68000UF 20% 80V SCREW |
7 |
|
Datasheet |
LNR | Bulk | Active | 68000 µF | ±20% | 80 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.5 A @ 120 Hz | 17.825 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
|
CGS602U100V4CCAP ALUM 6000UF 100V SCREW CHAS |
3 |
|
Datasheet |
CGS | Bulk | Active | 6000 µF | -10%, +75% | 100 V | 33mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.6 A @ 120 Hz | 9.88 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|

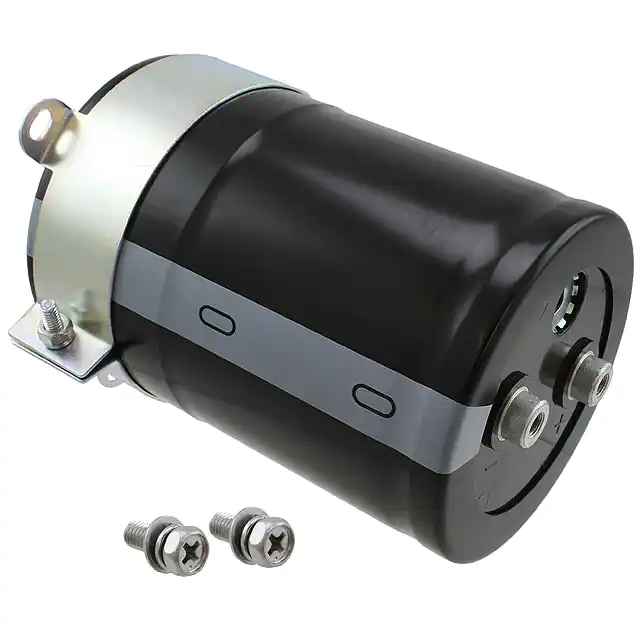

LNX2V682MSEHCAP ALUM 6800UF 20% 350V SCREW |
4 |
|
Datasheet |
LNX | Bulk | Active | 6800 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19.1 A @ 120 Hz | 26.74 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
MAL210118333E3CAP ALUM 33000UF 20% 63V SCREW |
21 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 33000 µF | ±20% | 63 V | 14mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.9 A @ 100 Hz | - | 12 mOhms | 0.874" (22.20mm) | 1.969" Dia (50.00mm) | 4.362" (110.80mm) | - | Chassis Mount | |
|
PSU18930CAP ALUM 189UF 330V QC CHAS MT |
5 |
|
Datasheet |
PSU | Bulk | Active | 189 µF | 0%, +20% | 330 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 2.563" Dia (65.10mm) | 4.375" (111.13mm) | - | Chassis Mount |
