Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

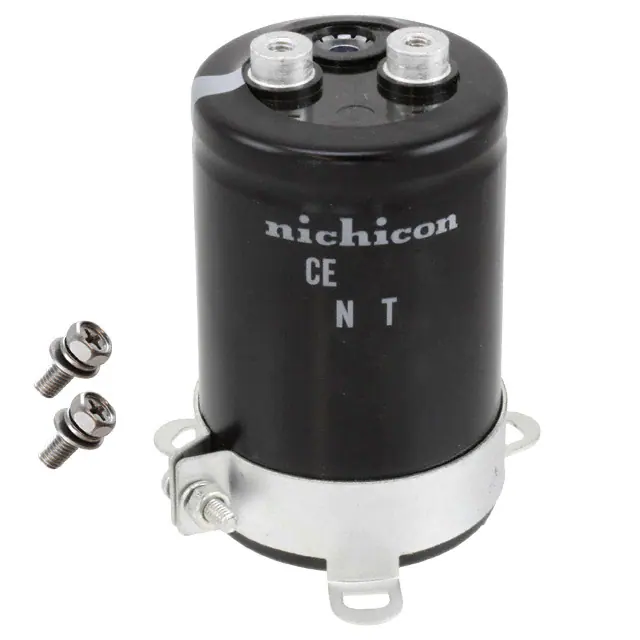

LNT2C332MSECAP ALUM 3300UF 20% 160V SCREW |
58 |
|
Datasheet |
LNT | Bulk | Active | 3300 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.8 A @ 120 Hz | 4.56 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
|
LNT2W471MSEFCAP ALUM 470UF 20% 450V SCREW CH |
62 |
|
Datasheet |
LNT | Bulk | Active | 470 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.4 A @ 120 Hz | 4.76 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
500C153T050BC2BCAP ALUM 15000UF 50V SCREW CHAS |
31 |
|
Datasheet |
500C | Bulk | Active | 15000 µF | -10%, +50% | 50 V | 20mOhm @ 120Hz | 5000 Hrs @ 95°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
|
LNT2G681MSEFCAP ALUM 680UF 20% 400V SCREW CH |
8 |
|
Datasheet |
LNT | Bulk | Active | 680 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 4.2 A @ 120 Hz | 5.88 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
CGS663U016V4CCAP ALUM 66000UF 16V SCREW CHAS |
30 |
|
Datasheet |
CGS | Bulk | Active | 66000 µF | -10%, +75% | 16 V | 17mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.8 A @ 120 Hz | 14.04 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
CGR103U030R4LCAP ALUM 10000UF 30V SCREW CHAS |
66 |
|
Datasheet |
CGR | Bulk | Active | 10000 µF | -10%, +75% | 30 V | 8mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.9 A @ 120 Hz | 21.735 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 4.625" (117.48mm) | - | Chassis Mount | |
|

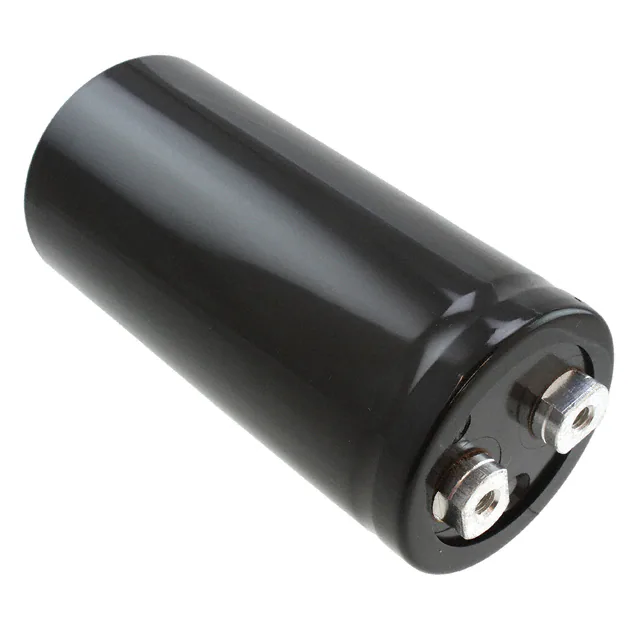

ALS40A104KF025CAP ALUM 100000UF 20% 25V SCREW |
49 |
|
Datasheet |
ALS40 | Bulk | Active | 100000 µF | ±20% | 25 V | 9mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.4 A @ 100 Hz | 16.7 A @ 10 kHz | 8 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
CGS171T450R3CCAP ALUM 170UF 450V SCREW CHAS M |
58 |
|
Datasheet |
CGS | Bulk | Active | 170 µF | -10%, +50% | 450 V | 456mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.25 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 3.125" (79.38mm) | - | Chassis Mount | |
|
PSU8830ACAP ALUM 88UF 330V QC CHAS MT |
41 |
|
Datasheet |
PSU | Bulk | Active | 88 µF | 0%, +20% | 330 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.813" Dia (46.05mm) | 4.375" (111.13mm) | - | Chassis Mount | |
|
|
500C223T025BA2BCAP ALUM 22000UF 25V SCREW CHAS |
58 |
|
Datasheet |
500C | Bulk | Active | 22000 µF | -10%, +50% | 25 V | 41mOhm | 5000 Hrs @ 95°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 2.125" (53.98mm) | - | Chassis Mount | |
|
ALS80A683QC063CAP ALUM 68000UF 20% 63V SCREW |
89 |
|
Datasheet |
ALS80 | Bulk | Active | 68000 µF | ±20% | 63 V | 14mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.9 A @ 100 Hz | 20.5 A @ 10 kHz | 13 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 2.717" (69.00mm) | - | Chassis Mount | |
|
LNT2D332MSECAP ALUM 3300UF 20% 200V SCREW |
19 |
|
Datasheet |
LNT | Bulk | Active | 3300 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 4.68 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
450UFG1500MBN45X80CAP ALUM 1500UF 20% 450V RADIAL |
50 |
|
Datasheet |
UFG | Bulk | Active | 1500 µF | ±20% | 450 V | - | 10000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.81 A @ 120 Hz | 9.534 A @ 10 kHz | - | 0.886" (22.50mm) | 1.772" Dia (45.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
PEH200KD5220MB2CAP ALUM 22000UF 20% 40V SCREW |
71 |
|
Datasheet |
PEH200 | Bulk | Active | 22000 µF | ±20% | 40 V | 12mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.1 A @ 100 Hz | - | 9 mOhms | 0.512" (13.00mm) | 1.441" Dia (36.60mm) | 3.760" (95.50mm) | - | Chassis Mount | |
|
ALS30A152KF450CAP ALUM 1500UF 20% 450V SCREW |
64 |
|
Datasheet |
ALS30 | Bulk | Active | 1500 µF | ±20% | 450 V | 93mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | 65 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
DCMC463U075BF2BCAP ALUM 46000UF 75V SCREW CHAS |
8 |
|
Datasheet |
DCMC | Bulk | Active | 46000 µF | -10%, +75% | 75 V | 12Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.8 A @ 120 Hz | 17.696 A @ 10 kHz | - | 0.875" (22.22mm) | 2.000" Dia (50.80mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
LNR1V683MSECAP ALUM 68000UF 20% 35V SCREW |
40 |
|
Datasheet |
LNR | Bulk | Active | 68000 µF | ±20% | 35 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.3 A @ 120 Hz | 10.81 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
PSU3030CAP ALUM 33UF 330V QC CHAS MT |
21 |
|
Datasheet |
PSU | Bulk | Active | 33 µF | 0%, +20% | 330 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.438" Dia (36.53mm) | 3.435" (87.25mm) | - | Chassis Mount | |
|
LQR2G152MSEFCAP ALUM 1500UF 20% 400V SCREW |
32 |
|
Datasheet |
LQR | Bulk | Active | 1500 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.5 A @ 120 Hz | 10.5 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|

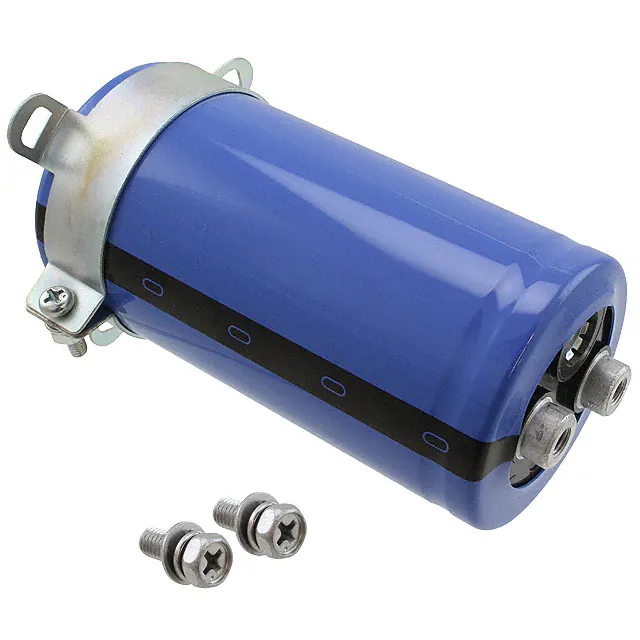

LNR2D472MSECAP ALUM 4700UF 20% 200V SCREW |
20 |
|
Datasheet |
LNR | Bulk | Active | 4700 µF | ±20% | 200 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.3 A @ 120 Hz | 7.56 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 4.055" (103.00mm) | - | Chassis Mount |
