Aluminum Electrolytic Capacitors

Mfr. Part #	Availability	Quantity	Datasheet	Series	Packaging	Product Status	Capacitance	Tolerance	Voltage - Rated	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Operating Temperature	Polarization	Ratings	Applications	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Impedance	Lead Spacing	Size / Dimension	Height - Seated (Max)	Surface Mount Land Size	Mounting Type
EEU-EE2D330 CAP ALUM 33UF 20% 200V RADIAL TH Panasonic Electronic Components	79	RFQ	Datasheet	EE-A	Bulk	Active	33 µF	±20%	200 V	-	8000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	322 mA @ 120 Hz	920 mA @ 100 kHz	-	0.197" (5.00mm)	0.394" Dia (10.00mm)	0.866" (22.00mm)	-	Through Hole
EKZN160ELL182MJ25S CAP ALUM 1800UF 20% 16V RADIAL Chemi-Con	76	RFQ	Datasheet	KZN	Bulk	Active	1800 µF	±20%	16 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.74 A @ 120 Hz	2.9 A @ 100 kHz	26 mOhms	0.197" (5.00mm)	0.394" Dia (10.00mm)	1.043" (26.50mm)	-	Through Hole
B41888C4108M000 CAP ALUM 1000UF 20% 16V RADIAL EPCOS - TDK Electronics	74	RFQ	Datasheet	B41888	Bulk	Active	1000 µF	±20%	16 V	50mOhm @ 10kHz	7000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	-	1.5 A @ 100 kHz	46 mOhms	0.197" (5.00mm)	0.394" Dia (10.00mm)	0.866" (22.00mm)	-	Through Hole
EEU-FR1V821LB CAP ALUM 820UF 20% 35V RADIAL TH Panasonic Electronic Components	58	RFQ	Datasheet	FR-A	Cut Tape (CT)	Active	820 µF	±20%	35 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.853 A @ 120 Hz	2.47 A @ 100 kHz	18 mOhms	0.197" (5.00mm)	0.394" Dia (10.00mm)	1.063" (27.00mm)	-	Through Hole
860040378011 CAP ALUM 1000UF 20% 16V RADIAL Würth Elektronik	72	RFQ	Datasheet	WCAP-ATUL	Cut Tape (CT)	Active	1000 µF	±20%	16 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.065 A @ 120 Hz	1.42 A @ 100 kHz	50 mOhms	0.197" (5.00mm)	0.512" Dia (13.00mm)	0.689" (17.50mm)	-	Through Hole
URS2E220MHD1TN CAP ALUM 22UF 20% 250V RADIAL TH Nichicon	38	RFQ	Datasheet	URS	Cut Tape (CT)	Active	22 µF	±20%	250 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	280 mA @ 120 Hz	448 mA @ 10 kHz	-	0.295" (7.50mm)	0.630" Dia (16.00mm)	0.650" (16.50mm)	-	Through Hole
EEE-HB1A221AP CAP ALUM 220UF 20% 10V SMD Panasonic Electronic Components	1,000	RFQ	Datasheet	HB	Tape & Reel (TR)	Active	220 µF	±20%	10 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	AEC-Q200	Automotive	160 mA @ 120 Hz	272 mA @ 10 kHz	-	-	0.315" Dia (8.00mm)	0.402" (10.20mm)	0.327" L x 0.327" W (8.30mm x 8.30mm)	Surface Mount
UCY2W120MPD1TD CAP ALUM 12UF 20% 450V RADIAL TH Nichicon	500	RFQ	Datasheet	UCY	Cut Tape (CT)	Active	12 µF	±20%	450 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	150 mA @ 120 Hz	300 mA @ 100 kHz	-	0.197" (5.00mm)	0.394" Dia (10.00mm)	0.846" (21.50mm)	-	Through Hole
UCY2D470MPD1TD CAP ALUM 47UF 20% 200V RADIAL TH Nichicon	582	RFQ	Datasheet	UCY	Cut Tape (CT)	Active	47 µF	±20%	200 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	360 mA @ 120 Hz	720 mA @ 100 kHz	-	0.197" (5.00mm)	0.394" Dia (10.00mm)	0.846" (21.50mm)	-	Through Hole
ECA-2GM220 CAP ALUM 22UF 20% 400V RADIAL TH Panasonic Electronic Components	27	RFQ	Datasheet	M-A	Bulk	Active	22 µF	±20%	400 V	-	2000 Hrs @ 85°C	-25°C ~ 85°C	Polar	-	General Purpose	215 mA @ 120 Hz	365.5 mA @ 10 kHz	-	0.197" (5.00mm)	0.492" Dia (12.50mm)	1.063" (27.00mm)	-	Through Hole
UCS2C680MHD CAP ALUM 68UF 20% 160V RADIAL TH Nichicon	62	RFQ	Datasheet	UCS	Bulk	Active	68 µF	±20%	160 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	590 mA @ 120 Hz	1.18 A @ 100 kHz	-	0.197" (5.00mm)	0.492" Dia (12.50mm)	0.846" (21.50mm)	-	Through Hole

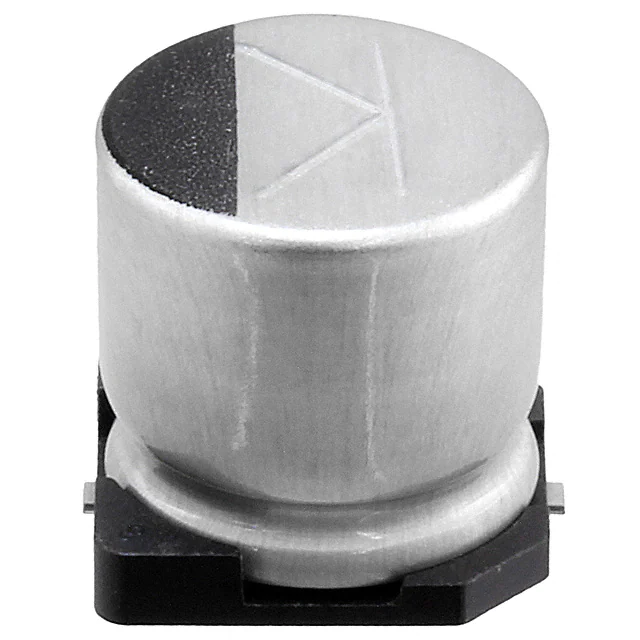

10TLV1000M10X10.5 CAP ALUM 1000UF 20% 10V SMD Rubycon	36	RFQ	Datasheet	TLV	Tape & Reel (TR)	Active	1000 µF	±20%	10 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	510 mA @ 120 Hz	850 mA @ 100 kHz	80 mOhms	-	0.394" Dia (10.00mm)	0.413" (10.50mm)	0.406" L x 0.406" W (10.30mm x 10.30mm)	Surface Mount
EEE-FK0J471AP CAP ALUM 470UF 20% 6.3V SMD Panasonic Electronic Components	1,058	RFQ	Datasheet	FK	Tape & Reel (TR)	Active	470 µF	±20%	6.3 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive, High Temperature Reflow	390 mA @ 120 Hz	600 mA @ 100 kHz	160 mOhms	-	0.315" Dia (8.00mm)	0.413" (10.50mm)	0.327" L x 0.327" W (8.30mm x 8.30mm)	Surface Mount
UPM1H181MHD6TO CAP ALUM 180UF 20% 50V RADIAL TH Nichicon	44	RFQ	Datasheet	UPM	Cut Tape (CT)	Not For New Designs	180 µF	±20%	50 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	605 mA @ 120 Hz	845 mA @ 10 kHz	95 mOhms	0.197" (5.00mm)	0.492" Dia (12.50mm)	0.669" (17.00mm)	-	Through Hole
EEE-FC1C221AP CAP ALUM 220UF 20% 16V SMD Panasonic Electronic Components	1,000	RFQ	Datasheet	FC	Tape & Reel (TR)	Not For New Designs	220 µF	±20%	16 V	-	1000 Hrs @ 105°C	-40°C ~ 105°C	Polar	AEC-Q200	Automotive, High Temperature Reflow	502.5 mA @ 120 Hz	670 mA @ 100 kHz	150 mOhms	-	0.394" Dia (10.00mm)	0.402" (10.20mm)	0.406" L x 0.406" W (10.30mm x 10.30mm)	Surface Mount
EEE-FN1H151UL CAP ALUM 150UF 20% 50V SMD Panasonic Electronic Components	591	RFQ	Datasheet	FN, Halogen Free	Tape & Reel (TR)	Active	150 µF	±20%	50 V	340mOhm @ 100kHz	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	227.5 mA @ 120 Hz	350 mA @ 100 kHz	-	-	0.315" Dia (8.00mm)	0.413" (10.50mm)	0.327" L x 0.327" W (8.30mm x 8.30mm)	Surface Mount
EMZA630ARA470MHA0G CAP ALUM 47UF 20% 63V SMD Chemi-Con	49	RFQ	Datasheet	Alchip™- MZA	Tape & Reel (TR)	Active	47 µF	±20%	63 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	100 mA @ 120 Hz	250 mA @ 100 kHz	700 mOhms	-	0.315" Dia (8.00mm)	0.413" (10.50mm)	0.327" L x 0.327" W (8.30mm x 8.30mm)	Surface Mount

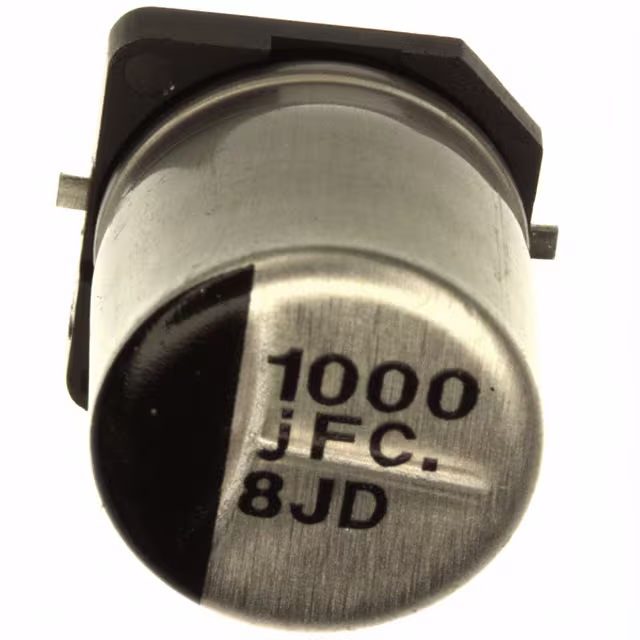

EEE-FC0J102AP CAP ALUM 1000UF 20% 6.3V SMD Panasonic Electronic Components	46	RFQ	Datasheet	FC	Tape & Reel (TR)	Not For New Designs	1000 µF	±20%	6.3 V	-	1000 Hrs @ 105°C	-40°C ~ 105°C	Polar	AEC-Q200	Automotive, High Temperature Reflow	502.5 mA @ 120 Hz	670 mA @ 100 kHz	150 mOhms	-	0.394" Dia (10.00mm)	0.402" (10.20mm)	0.406" L x 0.406" W (10.30mm x 10.30mm)	Surface Mount
EEE-FK1E101AV CAP ALUM 100UF 20% 25V SMD Panasonic Electronic Components	1,064	RFQ	Datasheet	FK, Anti-Vibration	Tape & Reel (TR)	Active	100 µF	±20%	25 V	260mOhm @ 100kHz	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive, High Temperature Reflow	195 mA @ 120 Hz	300 mA @ 100 kHz	-	-	0.315" Dia (8.00mm)	0.425" (10.80mm)	0.327" L x 0.327" W (8.30mm x 8.30mm)	Surface Mount
EEE-HD1C101AP CAP ALUM 100UF 20% 16V SMD Panasonic Electronic Components	1,046	RFQ	Datasheet	HD	Tape & Reel (TR)	Active	100 µF	±20%	16 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	AEC-Q200	Automotive, High Temperature Reflow	130 mA @ 120 Hz	221 mA @ 10 kHz	1.5 Ohms	-	0.315" Dia (8.00mm)	0.402" (10.20mm)	0.327" L x 0.327" W (8.30mm x 8.30mm)	Surface Mount

Total 95881 Record«Prev 1... 686 687 688 689690691 692 693...4795 Next»

Aluminum Electrolytic Capacitors Electronic Components

Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.

Frequently Asked Questions

Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.

Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.

Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.

Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
