Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UFW1H101MPD1TACAP ALUM 100UF 20% 50V RADIAL TH |
792 |
|
Datasheet |
UFW | Cut Tape (CT) | Not For New Designs | 100 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 250 mA @ 120 Hz | 375 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
50ZLJ180M8X20CAP ALUM 180UF 20% 50V RADIAL TH |
690 |
|
Datasheet |
ZLJ | Bulk | Active | 180 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | 1.58 A @ 100 kHz | 58 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UES1V220MPMCAP ALUM 22UF 20% 35V RADIAL TH |
640 |
|
Datasheet |
UES | Bulk | Active | 22 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | Audio | - | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UVZ1J221MPD1TDCAP ALUM 220UF 20% 63V RADIAL TH |
566 |
|
Datasheet |
UVZ | Cut Tape (CT) | Active | 220 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 335 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
REH1016101M100KCAP ALUM 100UF 20% 100V RADIAL |
380 |
|
Datasheet |
REH | Cut Tape (CT) | Active | 100 µF | ±20% | 100 V | - | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 245 mA @ 120 Hz | 350 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|

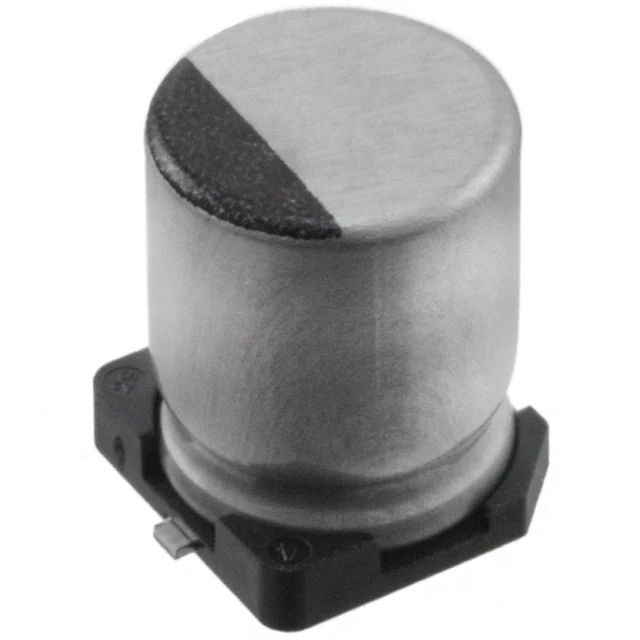

16TZV470M8X10.5CAP ALUM 470UF 20% 16V SMD |
307 |
|
Datasheet |
TZV | Tape & Reel (TR) | Active | 470 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 360 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
UES1E330MPM1TACAP ALUM 33UF 20% 25V RADIAL TH |
289 |
|
Datasheet |
UES | Cut Tape (CT) | Active | 33 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | Audio | - | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
EEU-FR1A102LBCAP ALUM 1000UF 20% 10V RADIAL |
1,929 |
|
Datasheet |
FR-A | Cut Tape (CT) | Active | 1000 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.24 A @ 100 kHz | 41 mOhms | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
EEU-FR1E471YBCAP ALUM 470UF 20% 25V RADIAL TH |
1,876 |
|
Datasheet |
FR-A | Cut Tape (CT) | Active | 470 µF | ±20% | 25 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.24 A @ 100 kHz | 41 mOhms | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UCB1H470MNL1GSCAP ALUM 47UF 20% 50V SMD |
1,249 |
|
Datasheet |
UCB | Tape & Reel (TR) | Active | 47 µF | ±20% | 50 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 92 mA @ 120 Hz | 138 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UKL1C221KPDANACAP ALUM 220UF 10% 16V RADIAL TH |
874 |
|
Datasheet |
UKL | Bulk | Not For New Designs | 220 µF | ±10% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 370 mA @ 120 Hz | 555 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
10ZLH1800MEFC10X20CAP ALUM 1800UF 20% 10V RADIAL |
870 |
|
Datasheet |
ZLH | Bulk | Active | 1800 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.372 A @ 120 Hz | 1.96 A @ 100 kHz | 20 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UUX1J470MNL1GSCAP ALUM 47UF 20% 63V SMD |
500 |
|
Datasheet |
UUX | Tape & Reel (TR) | Active | 47 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 220 mA @ 120 Hz | 367.4 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UEP1H220MPDCAP ALUM 22UF 20% 50V RADIAL TH |
419 |
|
Datasheet |
UEP | Bulk | Not For New Designs | 22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 63 mA @ 120 Hz | 126 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UHD0J152MPDCAP ALUM 1500UF 20% 6.3V RADIAL |
347 |
|
Datasheet |
UHD | Bulk | Not For New Designs | 1500 µF | ±20% | 6.3 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.456 A @ 120 Hz | 1.82 A @ 100 kHz | 23 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
UUX1H101MNL1GSCAP ALUM 100UF 20% 50V SMD |
206 |
|
Datasheet |
UUX | Tape & Reel (TR) | Active | 100 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 310 mA @ 120 Hz | 403 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UPJ2C010MPD1TACAP ALUM 1UF 20% 160V RADIAL TH |
1,931 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 1 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19 mA @ 120 Hz | 30.4 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
EEU-FC1A102LCAP ALUM 1000UF 20% 10V RADIAL |
721 |
|
Datasheet |
FC | Bulk | Active | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 746.3 mA @ 120 Hz | 995 mA @ 100 kHz | 65 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
UPJ2C3R3MPD1TDCAP ALUM 3.3UF 20% 160V RADIAL |
394 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 3.3 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 80 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
50ZLJ220M10X16CAP ALUM 220UF 20% 50V RADIAL TH |
383 |
|
Datasheet |
ZLJ | Bulk | Active | 220 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 825 mA @ 120 Hz | 1.65 A @ 100 kHz | 53 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole |
