Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6.3ZLJ5600M12.5X30CAP ALUM 5600UF 20% 6.3V RADIAL |
295 |
|
Datasheet |
ZLJ | Bulk | Active | 5600 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.415 A @ 120 Hz | - | 18 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
100YXG220MEFC16X20CAP ALUM 220UF 20% 100V RADIAL |
166 |
|
Datasheet |
YXG | Bulk | Obsolete | 220 µF | ±20% | 100 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 520 mA @ 120 Hz | 1.04 A @ 100 kHz | 91 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
VE-102M1VTR-1616SCAP ALUM 1000UF 20% 35V SMD |
790 |
|
Datasheet |
VE | Tape & Reel (TR) | Active | 1000 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | - | - | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
UPJ2C470MHDCAP ALUM 47UF 20% 160V RADIAL TH |
342 |
|
Datasheet |
UPJ | Bulk | Obsolete | 47 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 220 mA @ 120 Hz | 352 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
200KXW100MEFC10X35CAP ALUM 100UF 20% 200V RADIAL |
1,191 |
|
Datasheet |
KXW | Bulk | Last Time Buy | 100 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 460 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UCA2G220MHD6CAP ALUM 22UF 20% 400V RADIAL TH |
259 |
|
Datasheet |
UCA | Bulk | Obsolete | 22 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 600 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UPM1E182MHD6CAP ALUM 1800UF 20% 25V RADIAL |
200 |
|
Datasheet |
UPM | Bulk | Not For New Designs | 1800 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.97 A @ 120 Hz | 2.19 A @ 10 kHz | 31 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UPA0J562MHD6TNCAP ALUM 5600UF 20% 6.3V RADIAL |
238 |
|
Datasheet |
UPA | Cut Tape (CT) | Active | 5600 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.981 A @ 120 Hz | 2.33 A @ 100 kHz | 26 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
10ZL4700MEFC12.5X35CAP ALUM 4700UF 20% 10V RADIAL |
200 |
|
Datasheet |
ZL | Bulk | Last Time Buy | 4700 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.38 A @ 120 Hz | 3.4 A @ 100 kHz | 15 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EEE-TP1C331AVCAP ALUM 330UF 20% 16V SMD |
454 |
|
Datasheet |
TP, Anti-Vibration | Tape & Reel (TR) | Active | 330 µF | ±20% | 16 V | 150mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 325 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UPS2F330MHD1TNCAP ALUM 33UF 20% 315V RADIAL TH |
105 |
|
Datasheet |
UPS | Cut Tape (CT) | Not For New Designs | 33 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 155 mA @ 120 Hz | 248 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UBX1V101MPL1TDCAP ALUM 100UF 20% 35V RADIAL TH |
121 |
|
Datasheet |
UBX | Cut Tape (CT) | Obsolete | 100 µF | ±20% | 35 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 200 mA @ 120 Hz | 400 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
25YXS2700MEFC12.5X35CAP ALUM 2700UF 20% 25V RADIAL |
585 |
|
Datasheet |
YXS | Bulk | Active | 2700 µF | ±20% | 25 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.345 A @ 120 Hz | 3.35 A @ 100 kHz | 17 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MZ2W490MNN1050A4ECAP ALUM 49UF 20% 450V RADIAL TH |
457 |
|
Datasheet |
MZ | Bulk | Active | 49 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 350 mA @ 120 Hz | 630 mA @ 100 kHz | 800 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 2.028" (51.50mm) | - | Through Hole | |
|
EEU-FK1A152SCAP ALUM 1500UF 20% 10V RADIAL |
1,445 |
|
Datasheet |
FK | Bulk | Active | 1500 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.12 A @ 120 Hz | 1.4 A @ 100 kHz | 48 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UUG0J472MNQ1MSCAP ALUM 4700UF 20% 6.3V SMD |
259 |
|
Datasheet |
UUG | Tape & Reel (TR) | Not For New Designs | 4700 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.61 A @ 10 kHz | - | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
|
UPJ2E330MHDCAP ALUM 33UF 20% 250V RADIAL TH |
374 |
|
Datasheet |
UPJ | Bulk | Obsolete | 33 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 288 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|

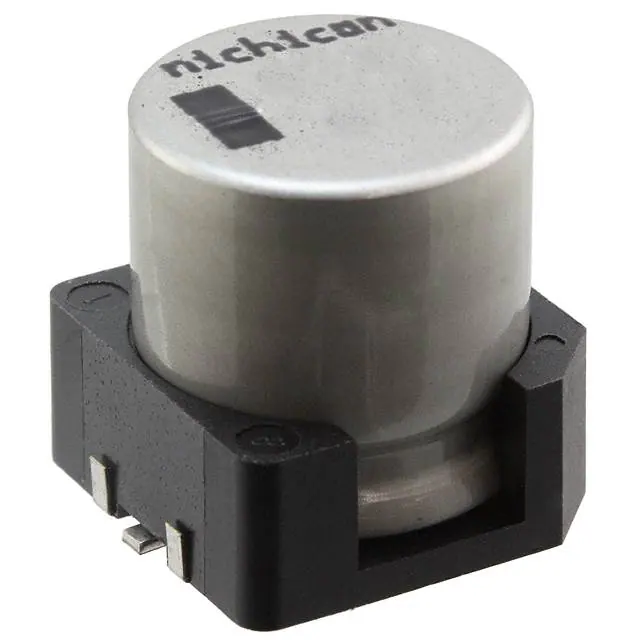

UUE1A471MNS1MSCAP ALUM 470UF 20% 10V SMD |
131 |
|
Datasheet |
UUE | Tape & Reel (TR) | Active | 470 µF | ±20% | 10 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | 502.5 mA @ 120 Hz | 750 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.571" (14.50mm) | 0.535" L x 0.535" W (13.60mm x 13.60mm) | Surface Mount | |
|
UBX1J560MPLCAP ALUM 56UF 20% 63V RADIAL TH |
1,730 |
|
Datasheet |
UBX | Bulk | Obsolete | 56 µF | ±20% | 63 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 215 mA @ 120 Hz | 430 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
UBX1J560MPL1TDCAP ALUM 56UF 20% 63V RADIAL TH |
932 |
|
Datasheet |
UBX | Cut Tape (CT) | Obsolete | 56 µF | ±20% | 63 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 215 mA @ 120 Hz | 430 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
