Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPW2G4R7MPDCAP ALUM 4.7UF 20% 400V RADIAL |
466 |
|
Datasheet |
UPW | Bulk | Obsolete | 4.7 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 43 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
UCA2G100MPDCAP ALUM 10UF 20% 400V RADIAL TH |
561 |
|
Datasheet |
UCA | Bulk | Obsolete | 10 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 280 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UPS2V100MHDCAP ALUM 10UF 20% 350V RADIAL TH |
556 |
|
Datasheet |
UPS | Bulk | Obsolete | 10 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 82 mA @ 120 Hz | 131.2 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
MAL215375229E3CAP ALUM 22UF 20% 16V SMD |
9,553 |
|
Datasheet |
153 CRV | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 16 V | 4Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 28 mA @ 100 Hz | - | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UPS2G100MHDCAP ALUM 10UF 20% 400V RADIAL TH |
777 |
|
Datasheet |
UPS | Bulk | Obsolete | 10 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 72 mA @ 120 Hz | 115.2 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|

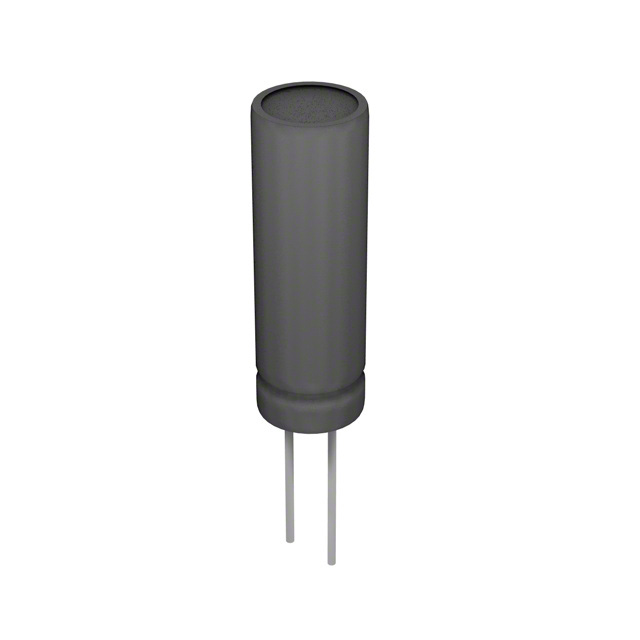

SXR331M050STCAP ALUM 330UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 330 µF | ±20% | 50 V | 400mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 529 mA @ 120 Hz | 1.15 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
UPW2C330MHD1TOCAP ALUM 33UF 20% 160V RADIAL TH |
115 |
|
Datasheet |
UPW | Cut Tape (CT) | Obsolete | 33 µF | ±20% | 160 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 288 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEE-FK0J271SVCAP ALUM 270UF 20% 6.3V SMD |
928 |
|
Datasheet |
FKS, Anti-Vibration | Tape & Reel (TR) | Not For New Designs | 270 µF | ±20% | 6.3 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.252" (6.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPW2E220MHDCAP ALUM 22UF 20% 250V RADIAL TH |
681 |
|
Datasheet |
UPW | Bulk | Obsolete | 22 µF | ±20% | 250 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 155 mA @ 120 Hz | 248 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.984" (25.00mm) | - | Through Hole | |
|
515D477M025CD6AE3CAP ALUM 470UF 20% 25V RADIAL TH |
2,200 |
|
Datasheet |
515D | Bulk | Obsolete | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 540 mA @ 120 Hz | 810 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
ESZ227M160AN5AACAP ALUM RAD 105C |
0 |
|
Datasheet |
ESZ | Bulk | Active | 220 µF | ±20% | 160 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 650 mA @ 120 Hz | 1.3 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
UCA2C330MPDCAP ALUM 33UF 20% 160V RADIAL TH |
1,366 |
|
Datasheet |
UCA | Bulk | Obsolete | 33 µF | ±20% | 160 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 282.5 mA @ 120 Hz | 565 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UVY1A332MHDCAP ALUM 3300UF 20% 10V RADIAL |
800 |
|
Datasheet |
UVY | Bulk | Active | 3300 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.15 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UPW2W3R3MHDCAP ALUM 3.3UF 20% 450V RADIAL |
769 |
|
Datasheet |
UPW | Bulk | Obsolete | 3.3 µF | ±20% | 450 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 41 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.787" (20.00mm) | - | Through Hole | |
|
UPM0J152MPD1TDCAP ALUM 1500UF 20% 6.3V RADIAL |
426 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 1500 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.13 A @ 120 Hz | 1.26 A @ 10 kHz | 55 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
UPS2E330MHDCAP ALUM 33UF 20% 250V RADIAL TH |
345 |
|
Datasheet |
UPS | Bulk | Obsolete | 33 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 190 mA @ 120 Hz | 304 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
10YXS3300MEFC12.5X20CAP ALUM 3300UF 20% 10V RADIAL |
990 |
|
Datasheet |
YXS | Bulk | Active | 3300 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.512 A @ 120 Hz | 2.16 A @ 100 kHz | 28 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
6.3YXS3900MEFC12.5X20CAP ALUM 3900UF 20% 6.3V RADIAL |
969 |
|
Datasheet |
YXS | Bulk | Active | 3900 µF | ±20% | 6.3 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.512 A @ 120 Hz | 2.16 A @ 100 kHz | 28 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
PV2F270MNN1620CAP ALUM 27UF 20% 315V RADIAL TH |
200 |
|
Datasheet |
PV | Bulk | Active | 27 µF | ±20% | 315 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 730 mA @ 120 Hz | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
16YXS2200MEFC12.5X20CAP ALUM 2200UF 20% 16V RADIAL |
951 |
|
Datasheet |
YXS | Bulk | Active | 2200 µF | ±20% | 16 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.512 A @ 120 Hz | 2.16 A @ 100 kHz | 28 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
