Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPV1V390MGD1TDCAP ALUM 39UF 20% 35V RADIAL TH |
1,873 |
|
Datasheet |
UPV | Cut Tape (CT) | Obsolete | 39 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 245 mA @ 100 kHz | 700 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPW2E3R3MPDCAP ALUM 3.3UF 20% 250V RADIAL |
1,251 |
|
Datasheet |
UPW | Bulk | Obsolete | 3.3 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 42 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UPV1V470MGDCAP ALUM 47UF 20% 35V RADIAL TH |
6,568 |
|
Datasheet |
UPV | Bulk | Obsolete | 47 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | - | 580 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UZR1H010MCL1GBCAP ALUM 1UF 20% 50V SMD |
5,840 |
|
Datasheet |
UZR | Tape & Reel (TR) | Obsolete | 1 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 8.4 mA @ 120 Hz | 12.6 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.156" (3.95mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UPV1A151MGD1TDCAP ALUM 150UF 20% 10V RADIAL TH |
3,850 |
|
Datasheet |
UPV | Cut Tape (CT) | Obsolete | 150 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | - | 600 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UPV1H270MGDCAP ALUM 27UF 20% 50V RADIAL TH |
3,330 |
|
Datasheet |
UPV | Bulk | Obsolete | 27 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | 740 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UPV1H270MGD1TDCAP ALUM 27UF 20% 50V RADIAL TH |
1,943 |
|
Datasheet |
UPV | Cut Tape (CT) | Obsolete | 27 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | 740 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UPV1E680MGD1TDCAP ALUM 68UF 20% 25V RADIAL TH |
1,692 |
|
Datasheet |
UPV | Cut Tape (CT) | Obsolete | 68 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | - | 610 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UES1A470MEMCAP ALUM 47UF 20% 10V RADIAL TH |
1,635 |
|
Datasheet |
UES | Bulk | Obsolete | 47 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | Audio | - | - | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UPV1A151MGDCAP ALUM 150UF 20% 10V RADIAL TH |
1,267 |
|
Datasheet |
UPV | Bulk | Obsolete | 150 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | - | 600 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPJ2D2R2MPDCAP ALUM 2.2UF 20% 200V RADIAL |
1,011 |
|
Datasheet |
UPJ | Bulk | Obsolete | 2.2 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 48 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UUR1E331MNL1GSCAP ALUM 330UF 20% 25V SMD |
29,800 |
|
Datasheet |
UUR | Tape & Reel (TR) | Obsolete | 330 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 305 mA @ 120 Hz | 396.5 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
ULD2G1R5MED1TDCAP ALUM 1.5UF 20% 400V RADIAL |
19,214 |
|
Datasheet |
ULD | Cut Tape (CT) | Obsolete | 1.5 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 29 mA @ 120 Hz | 58 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UEP1V100MDDCAP ALUM 10UF 20% 35V RADIAL TH |
4,191 |
|
Datasheet |
UEP | Bulk | Obsolete | 10 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 30 mA @ 120 Hz | 60 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UEP1H4R7MDDCAP ALUM 4.7UF 20% 50V RADIAL TH |
4,189 |
|
Datasheet |
UEP | Bulk | Obsolete | 4.7 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 22 mA @ 120 Hz | 44 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UEP1C220MDDCAP ALUM 22UF 20% 16V RADIAL TH |
3,936 |
|
Datasheet |
UEP | Bulk | Obsolete | 22 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 40 mA @ 120 Hz | - | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UZR1V4R7MCL1GBCAP ALUM 4.7UF 20% 35V SMD |
3,789 |
|
Datasheet |
UZR | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 18 mA @ 120 Hz | 27 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.156" (3.95mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UUR1V221MNL1GSCAP ALUM 220UF 20% 35V SMD |
3,700 |
|
Datasheet |
UUR | Tape & Reel (TR) | Obsolete | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 265 mA @ 120 Hz | 344.5 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
475CKS400MCAP ALUM 4.7UF 20% 400V RADIAL |
1,091 |
|
Datasheet |
CKS | Bulk | Active | 4.7 µF | ±20% | 400 V | 84.6569Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | Bypass, Decoupling | 75 mA @ 120 Hz | 187.5 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|

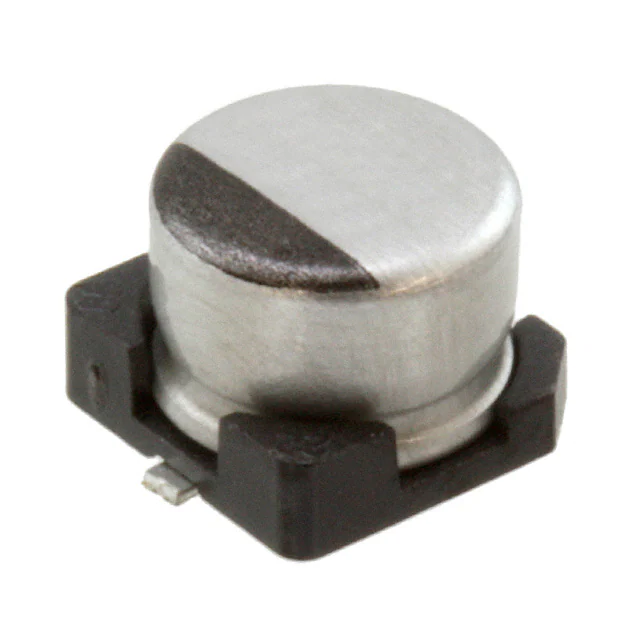

UZR1H4R7MCL1GBCAP ALUM 4.7UF 20% 50V SMD |
2,420 |
|
Datasheet |
UZR | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 20 mA @ 120 Hz | 30 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.156" (3.95mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
