Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPW1A221MED6CAP ALUM 220UF 20% 10V RADIAL TH |
3,987 |
|
Datasheet |
UPW | Bulk | Obsolete | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 279.5 mA @ 120 Hz | 430 mA @ 100 kHz | 230 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.591" (15.00mm) | - | Through Hole | |
|
UUR2A4R7MCL1GSCAP ALUM 4.7UF 20% 100V SMD |
3,608 |
|
Datasheet |
UUR | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 40 mA @ 120 Hz | 66.8 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.256" (6.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
V3MC0581E101MVTMCAP ALUM 25V POLAR |
1,200 |
|
Datasheet |
V3M | Tape & Reel (TR) | Active | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | High Temperature Reflow | 150 mA @ 120 Hz | 300 mA @ 100 kHz | 520 mOhms | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

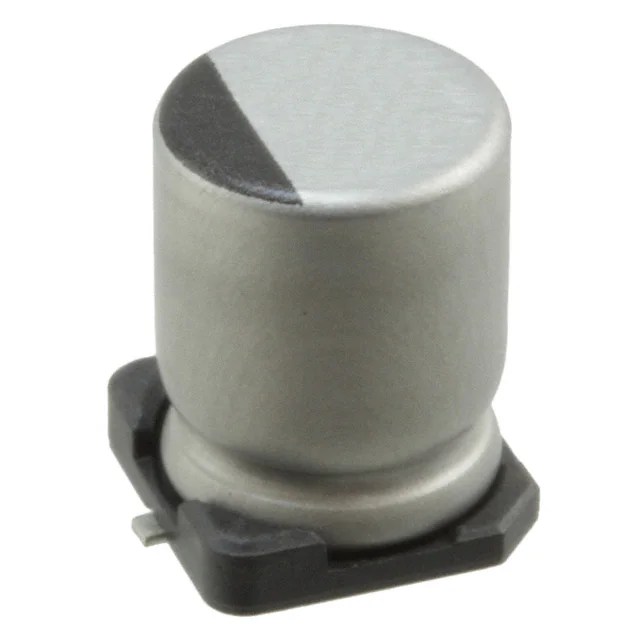

UUR1E151MNL1GSCAP ALUM 150UF 20% 25V SMD |
5,044 |
|
Datasheet |
UUR | Tape & Reel (TR) | Obsolete | 150 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 192 mA @ 120 Hz | 249.6 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UPV1H2R2MFDCAP ALUM 2.2UF 20% 50V RADIAL TH |
4,550 |
|
Datasheet |
UPV | Bulk | Obsolete | 2.2 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | 7 Ohms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPM1K150MED1TDCAP ALUM 15UF 20% 80V RADIAL TH |
3,978 |
|
Datasheet |
UPM | Cut Tape (CT) | Obsolete | 15 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 52 mA @ 120 Hz | 104 mA @ 10 kHz | 1.2 Ohms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPM1C181MED1TDCAP ALUM 180UF 20% 16V RADIAL TH |
3,901 |
|
Datasheet |
UPM | Cut Tape (CT) | Obsolete | 180 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 285 mA @ 120 Hz | 405 mA @ 10 kHz | 200 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.650" (16.50mm) | - | Through Hole | |
|
SN100M100STCAP ALUM 10UF 20% 100V RADIAL TH |
0 |
|
Datasheet |
SN | Bulk | Obsolete | 10 µF | ±20% | 100 V | 13.27Ohm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 100 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
UCD1E270MCL1GSCAP ALUM 27UF 20% 25V SMD |
2,000 |
|
Datasheet |
UCD | Tape & Reel (TR) | Active | 27 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 120 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
UPM2A120MED1TDCAP ALUM 12UF 20% 100V RADIAL TH |
2,000 |
|
Datasheet |
UPM | Cut Tape (CT) | Obsolete | 12 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 75 mA @ 120 Hz | 150 mA @ 10 kHz | 1 Ohms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UPM1K180MED1TDCAP ALUM 18UF 20% 80V RADIAL TH |
1,984 |
|
Datasheet |
UPM | Cut Tape (CT) | Obsolete | 18 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 78 mA @ 120 Hz | 150 mA @ 10 kHz | 1 Ohms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
50SLV3.3M4X6.1CAP ALUM 3.3UF 20% 50V SMD |
1,948 |
|
Datasheet |
SLV | Tape & Reel (TR) | Obsolete | 3.3 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14 mA @ 120 Hz | 21 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UPM1V680MEDCAP ALUM 68UF 20% 35V RADIAL TH |
1,507 |
|
Datasheet |
UPM | Bulk | Obsolete | 68 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 230 mA @ 120 Hz | 370 mA @ 10 kHz | 240 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.650" (16.50mm) | - | Through Hole | |
|
|
EMK1EM101FB0D00RCAP ALUM 100UF 20% 25V SMD |
9,421 |
|
- |
MK | Tape & Reel (TR) | Active | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | - | - | - | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
MAL203836101E3CAP ALUM 100UF 20% 25V RADIAL TH |
3,179 |
|
- |
038 RSU | Cut Tape (CT) | Obsolete | 100 µF | ±20% | 25 V | - | 2500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 256.5 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
EKZH160ETC221MF11DCAP ALUM 220UF 20% 16V RADIAL TH |
1,989 |
|
Datasheet |
KZH | Cut Tape (CT) | Obsolete | 220 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 500 mA @ 100 kHz | 110 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UPM2A180MED1TDCAP ALUM 18UF 20% 100V RADIAL TH |
1,980 |
|
Datasheet |
UPM | Cut Tape (CT) | Obsolete | 18 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 110 mA @ 120 Hz | 220 mA @ 10 kHz | 670 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.650" (16.50mm) | - | Through Hole | |
|
|
UPV1E330MFD1TDCAP ALUM 33UF 20% 25V RADIAL TH |
1,939 |
|
Datasheet |
UPV | Cut Tape (CT) | Obsolete | 33 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | - | 1.4 Ohms | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UVP1E330MED1TDCAP ALUM 33UF 20% 25V RADIAL TH |
1,892 |
|
Datasheet |
UVP | Cut Tape (CT) | Obsolete | 33 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 80 mA @ 120 Hz | 160 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVP1V220MEDCAP ALUM 22UF 20% 35V RADIAL TH |
1,877 |
|
Datasheet |
UVP | Bulk | Obsolete | 22 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 73 mA @ 120 Hz | 146 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
