Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UHE1J330MED1TDCAP ALUM 33UF 20% 63V RADIAL TH |
33,591 |
|
Datasheet |
UHE | Cut Tape (CT) | Obsolete | 33 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 69.3 mA @ 120 Hz | 126 mA @ 100 kHz | 1.2 Ohms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
EMZA350ARA100MD61GCAP ALUM 10UF 20% 35V SMD |
9,995 |
|
Datasheet |
Alchip™- MZA | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 36 mA @ 120 Hz | 90 mA @ 100 kHz | 1.35 Ohms | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
B41821F7227M000CAP ALUM 220UF 20% 35V RADIAL TH |
8,704 |
|
Datasheet |
B41821 | Bulk | Obsolete | 220 µF | ±20% | 35 V | 1.1Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 385 mA @ 120 Hz | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
UHE1A221MEDCAP ALUM 220UF 20% 10V RADIAL TH |
7,411 |
|
Datasheet |
UHE | Bulk | Obsolete | 220 µF | ±20% | 10 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 238 mA @ 120 Hz | 340 mA @ 100 kHz | 220 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
UHE0J331MEDCAP ALUM 330UF 20% 6.3V RADIAL |
6,957 |
|
Datasheet |
UHE | Bulk | Obsolete | 330 µF | ±20% | 6.3 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 238 mA @ 120 Hz | 340 mA @ 100 kHz | 220 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole | |
|
ULD2A100MED1TDCAP ALUM 10UF 20% 100V RADIAL TH |
6,150 |
|
Datasheet |
ULD | Cut Tape (CT) | Obsolete | 10 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 63 mA @ 120 Hz | 150 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
EMZA350ARA4R7MD61GCAP ALUM 4.7UF 20% 35V SMD |
5,509 |
|
Datasheet |
Alchip™- MZA | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 31.5 mA @ 120 Hz | 90 mA @ 100 kHz | 2.9 Ohms | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
UPS1A221MEDCAP ALUM 220UF 20% 10V RADIAL TH |
4,050 |
|
Datasheet |
UPS | Bulk | Obsolete | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 125 mA @ 120 Hz | 250 mA @ 100 kHz | 500 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPM1H180MDD1TDCAP ALUM 18UF 20% 50V RADIAL TH |
3,924 |
|
Datasheet |
UPM | Cut Tape (CT) | Obsolete | 18 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 79 mA @ 120 Hz | 165 mA @ 10 kHz | 800 mOhms | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPM1A101MED1TDCAP ALUM 100UF 20% 10V RADIAL TH |
3,902 |
|
Datasheet |
UPM | Cut Tape (CT) | Obsolete | 100 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 135 mA @ 120 Hz | 210 mA @ 10 kHz | 550 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPJ1A271MED1TDCAP ALUM 270UF 20% 10V RADIAL TH |
3,856 |
|
Datasheet |
UPJ | Cut Tape (CT) | Obsolete | 270 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 405 mA @ 10 kHz | 310 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.630" (16.00mm) | - | Through Hole | |
|
|
UPJ1E121MED1TDCAP ALUM 120UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
UPJ | Cut Tape (CT) | Obsolete | 120 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 275 mA @ 120 Hz | 405 mA @ 10 kHz | 320 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.630" (16.00mm) | - | Through Hole | |
|
UPJ1J220MEDCAP ALUM 22UF 20% 63V RADIAL TH |
2,917 |
|
Datasheet |
UPJ | Bulk | Obsolete | 22 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 110 mA @ 120 Hz | 215 mA @ 10 kHz | 780 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.472" (12.00mm) | - | Through Hole | |
|
UPW2E010MEDCAP ALUM 1UF 20% 250V RADIAL TH |
2,833 |
|
Datasheet |
UPW | Bulk | Obsolete | 1 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17 mA @ 120 Hz | 27.2 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole | |
|
UPM1E101MED1TACAP ALUM 100UF 20% 25V RADIAL TH |
2,409 |
|
Datasheet |
UPM | Cut Tape (CT) | Obsolete | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 245 mA @ 120 Hz | 370 mA @ 10 kHz | 240 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.650" (16.50mm) | - | Through Hole | |
|

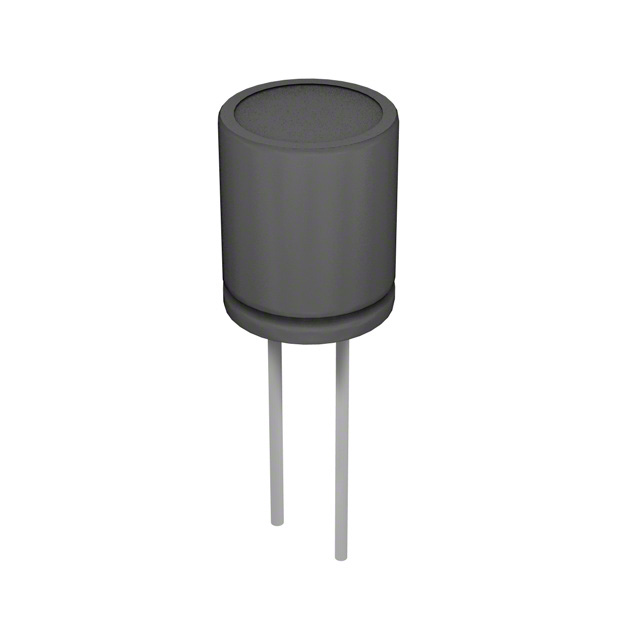

SN220M050STCAP ALUM 22UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
SN | Bulk | Obsolete | 22 µF | ±20% | 50 V | 7.24Ohm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 115 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
400PX3.3MEFC8X11.5CAP ALUM 3.3UF 20% 400V RADIAL |
2,000 |
|
Datasheet |
PX | Bulk | Active | 3.3 µF | ±20% | 400 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 34 mA @ 120 Hz | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
EJ1V151MP26311UCAP ALUM 150UF 20% 35V RADIAL TH |
2,000 |
|
Datasheet |
EJ | Tape & Box (TB) | Active | 150 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 135 mA @ 120 Hz | 450 mA @ 100 kHz | 350 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UPW2D2R2MEDCAP ALUM 2.2UF 20% 200V RADIAL |
1,945 |
|
Datasheet |
UPW | Bulk | Obsolete | 2.2 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25 mA @ 120 Hz | 40 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole | |
|
35SEV4R7M4X5.5CAP ALUM 4.7UF 20% 35V SMD |
1,901 |
|
Datasheet |
SEV | Tape & Reel (TR) | Last Time Buy | 4.7 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 18 mA @ 120 Hz | 27 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
