Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
16YXM220MEFRT78X11.5CAP ALUM 220UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
YXM | Tape & Box (TB) | Active | 220 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 231 mA @ 120 Hz | 330 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
35YXM47MEFRTA6.3X11CAP ALUM 47UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
YXM | Tape & Box (TB) | Active | 47 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 147 mA @ 120 Hz | 210 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
25YXM100MEFRT16.3X11CAP ALUM 100UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
YXM | Tape & Box (TB) | Active | 100 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 147 mA @ 120 Hz | 210 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
420CXW220MEFR18X50CAP ALUM 220UF 20% 420V RADIAL |
0 |
|
Datasheet |
CXW | Bulk | Active | 220 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.83 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
400TXW82MEFR16X30CAP ALUM 82UF 20% 400V RADIAL TH |
0 |
|
Datasheet |
TXW | Bulk | Active | 82 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 610 mA @ 120 Hz | 915 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.280" (32.50mm) | - | Through Hole | |
|
|
420CXW150MEFR16X45CAP ALUM 150UF 20% 420V RADIAL |
0 |
|
Datasheet |
CXW | Bulk | Active | 150 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 940 mA @ 120 Hz | 1.41 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
450CXW100MEFR18X30CAP ALUM 100UF 20% 450V RADIAL |
0 |
|
Datasheet |
CXW | Bulk | Active | 100 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
450CXW82MEFR16X31.5CAP ALUM 82UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
CXW | Bulk | Active | 82 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 1.28 A @ 50 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
400QXW75MEFR18X20CAP ALUM 75UF 20% 400V RADIAL TH |
0 |
|
Datasheet |
QXW | Bulk | Active | 75 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
450CXW68MEFR16X25CAP ALUM 68UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
CXW | Bulk | Active | 68 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
400CXW82MEFR14.5X31.5CAP ALUM 82UF 20% 400V RADIAL TH |
0 |
|
Datasheet |
CXW | Bulk | Active | 82 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 570 mA @ 120 Hz | 855 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.319" (33.50mm) | - | Through Hole | |
|
|
400CXW270MEFR18X50CAP ALUM 270UF 20% 400V RADIAL |
0 |
|
Datasheet |
CXW | Bulk | Active | 270 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
400QXW68MEFR12.5X35CAP ALUM 68UF 20% 400V RADIAL TH |
0 |
|
Datasheet |
QXW | Bulk | Active | 68 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 540 mA @ 120 Hz | 810 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|

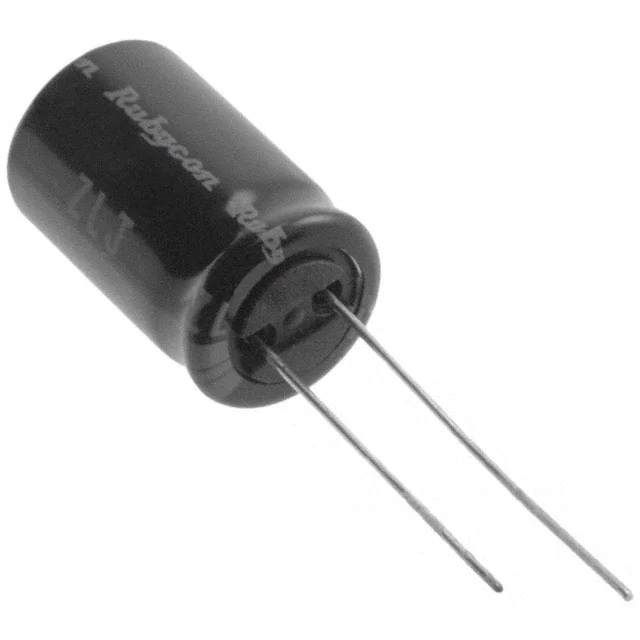

450QXW47MEFR12.5X30CAP ALUM 47UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
QXW | Bulk | Active | 47 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 430 mA @ 120 Hz | 645 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
450TXW22MEFR10X35CAP ALUM 22UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
TXW | Bulk | Active | 22 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
400TXW56MEFR12.5X35CAP ALUM 56UF 20% 400V RADIAL TH |
0 |
|
Datasheet |
TXW | Bulk | Active | 56 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 750 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.476" (37.50mm) | - | Through Hole | |
|
450BXW65MEFR14.5X30CAP ALUM 65UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
BXW | Bulk | Active | 65 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
16YXM47MEFRT15X11CAP ALUM 47UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
YXM | Tape & Box (TB) | Active | 47 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 91 mA @ 120 Hz | 130 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
400QXW120MEFR16X35CAP ALUM 120UF 20% 400V RADIAL |
0 |
|
Datasheet |
QXW | Bulk | Active | 120 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.2 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
200TXW220MEFR12.5X45CAP ALUM 220UF 20% 200V RADIAL |
0 |
|
Datasheet |
TXW | Bulk | Active | 220 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.09 A @ 120 Hz | 1.52 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.870" (47.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
