Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

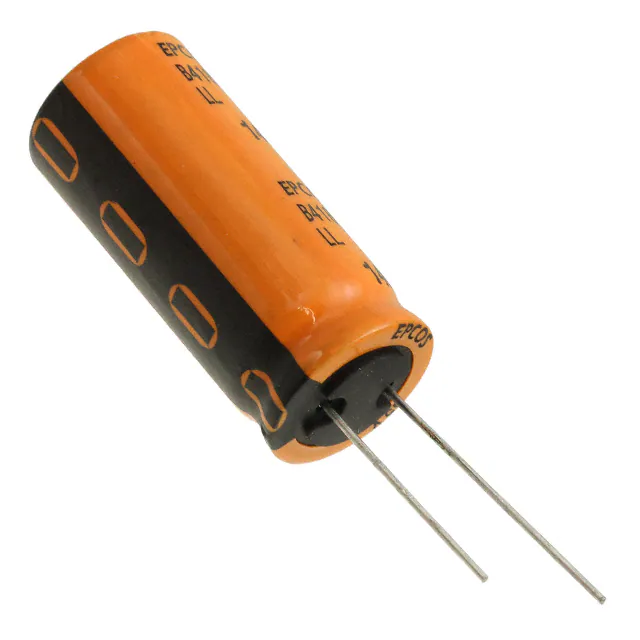

B41858C8687M002CAP ALUM 680UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
B41858 | Bulk | Obsolete | 680 µF | ±20% | 63 V | 186mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 1.785 A @ 100 kHz | 65 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41858C9277M002CAP ALUM 270UF 20% 100V RADIAL |
0 |
|
Datasheet |
B41858 | Bulk | Obsolete | 270 µF | ±20% | 100 V | 374mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 1.309 A @ 100 kHz | 121 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41858D4338M004CAP ALUM 3300UF 20% 16V RADIAL |
0 |
|
Datasheet |
B41858 | Bulk | Obsolete | 3300 µF | ±20% | 16 V | 77mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 2.858 A @ 100 kHz | 25 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B41859C8687M002CAP ALUM 680UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
B41859 | Bulk | Obsolete | 680 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | - | 2.8 A @ 100 kHz | 21 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41866C8687M002CAP ALUM 680UF 20% 63V RADIAL TH |
0 |
|
- |
B41866 | Bulk | Obsolete | 680 µF | ±20% | 63 V | 279mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 1.588 A @ 100 kHz | 89 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41866G8687M000CAP ALUM 680UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
B41866 | Bulk | Obsolete | 680 µF | ±20% | 63 V | 94mOhm @ 10kHz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.06 A @ 100 kHz | 88 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41866G8687M004CAP ALUM 680UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
B41866 | Bulk | Obsolete | 680 µF | ±20% | 63 V | 94mOhm @ 10kHz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.06 A @ 100 kHz | 88 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41888C8687M004CAP ALUM 680UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
B41888 | Bulk | Obsolete | 680 µF | ±20% | 63 V | 72mOhm @ 10kHz | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 1.629 A @ 100 kHz | 65 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41890A4228M002CAP ALUM 2200UF 20% 16V RADIAL |
0 |
|
Datasheet |
B41890 | Bulk | Obsolete | 2200 µF | ±20% | 16 V | 37mOhm @ 10kHz | 15000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 2.86 A @ 100 kHz | 31 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
B41890A7108M002CAP ALUM 1000UF 20% 35V RADIAL |
0 |
|
Datasheet |
B41890 | Bulk | Obsolete | 1000 µF | ±20% | 35 V | 31mOhm @ 10kHz | 15000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 3.34 A @ 100 kHz | 26 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41895A5228M004CAP ALUM 2200UF 20% 25V RADIAL |
0 |
|
- |
B41895 | Bulk | Obsolete | 2200 µF | ±20% | 25 V | 33mOhm @ 10kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.56 A @ 100 kHz | 29 mOhms | - | - | - | - | Through Hole | |
|
|
B41895A5278M002CAP ALUM 2700UF 20% 25V RADIAL |
0 |
|
- |
B41895 | Bulk | Obsolete | 2700 µF | ±20% | 25 V | 28mOhm @ 10kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.97 A @ 100 kHz | 24 mOhms | - | - | - | - | Through Hole | |
|
|
B41895A5338M004CAP ALUM 3300UF 20% 25V RADIAL |
0 |
|
- |
B41895 | Bulk | Obsolete | 3300 µF | ±20% | 25 V | 25mOhm @ 10kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 3.34 A @ 100 kHz | 21 mOhms | - | - | - | - | Through Hole | |
|
|
B41895A6108M002CAP ALUM 1000UF 20% 50V RADIAL |
0 |
|
- |
B41895 | Bulk | Obsolete | 1000 µF | ±20% | 50 V | - | - | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | - | - | - | - | - | - | Through Hole | |
|
|
B41895A7158M002CAP ALUM 1500UF 20% 35V RADIAL |
0 |
|
Datasheet |
B41895 | Bulk | Obsolete | 1500 µF | ±20% | 35 V | 28mOhm @ 10kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.97 A @ 100 kHz | 24 mOhms | - | - | - | - | Through Hole | |
|
B41896C4228M002CAP ALUM 2200UF 20% 16V RADIAL |
0 |
|
Datasheet |
B41896 | Bulk | Obsolete | 2200 µF | ±20% | 16 V | 109mOhm @ 120Hz | 7000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.86 A @ 100 kHz | 26 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
B41896C7108M002CAP ALUM 1000UF 20% 35V RADIAL |
0 |
|
Datasheet |
B41896 | Bulk | Obsolete | 1000 µF | ±20% | 35 V | 152mOhm @ 120Hz | 7000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 3.34 A @ 100 kHz | 21 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B43866C9226M002CAP ALUM 22UF 20% 400V RADIAL TH |
0 |
|
Datasheet |
B43866 | Bulk | Obsolete | 22 µF | ±20% | 400 V | - | 5000 Hrs @ 125°C | -25°C ~ 125°C | Polar | - | General Purpose | - | 280 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
B43888C2476M004CAP ALUM 47UF 20% 250V RADIAL TH |
0 |
|
Datasheet |
B43888 | Bulk | Obsolete | 47 µF | ±20% | 250 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | 1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
B43888C2686M002CAP ALUM 68UF 20% 250V RADIAL TH |
0 |
|
Datasheet |
B43888 | Bulk | Obsolete | 68 µF | ±20% | 250 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | 1.3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole |
