Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
16SKV33M6.3X5.5CAP ALUM 33UF 20% 16V SMD |
0 |
|
Datasheet |
SKV | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
25SEV22M5X5.5CAP ALUM 22UF 20% 25V SMD |
0 |
|
Datasheet |
SEV | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | - | - | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
25SEV4R7M4X5.5CAP ALUM 4.7UF 20% 25V SMD |
0 |
|
Datasheet |
SEV | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 18 mA @ 120 Hz | 27 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
25SGV4R7M4X6.1CAP ALUM 4.7UF 20% 25V SMD |
0 |
|
Datasheet |
SGV | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | - | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
35NSKV2R2M4X5.5CAP ALUM 2.2UF 20% 35V SMD |
0 |
|
Datasheet |
NSKV | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 8.4 mA @ 120 Hz | 12.6 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
35SJV10M5X6.1CAP ALUM 10UF 20% 35V SMD |
0 |
|
Datasheet |
SJV | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 27 mA @ 120 Hz | 40.5 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
35SJV4.7M4X6.1CAP ALUM 4.7UF 20% 35V SMD |
0 |
|
Datasheet |
SJV | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16 mA @ 120 Hz | 24 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
4SGV100M5X6.1CAP ALUM 100UF 20% 4V SMD |
0 |
|
Datasheet |
SGV | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 4 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | - | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
4SKV220M6.3X5.5CAP ALUM 220UF 20% 4V SMD |
0 |
|
Datasheet |
SKV | Tape & Reel (TR) | Obsolete | 220 µF | ±20% | 4 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
50SEV0R47M4X5.5CAP ALUM 0.47UF 20% 50V SMD |
0 |
|
Datasheet |
SEV | Tape & Reel (TR) | Obsolete | 0.47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 4 mA @ 120 Hz | 6 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
50SJV4.7M5X6.1CAP ALUM 4.7UF 20% 50V SMD |
0 |
|
Datasheet |
SJV | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19 mA @ 120 Hz | 28.5 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
50SLV2R2M4X6.1CAP ALUM 2.2UF 20% 50V SMD |
0 |
|
Datasheet |
SLV | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11 mA @ 120 Hz | 16.5 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
6.3SJV22M4X6.1CAP ALUM 22UF 20% 6.3V SMD |
0 |
|
Datasheet |
SJV | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 22 mA @ 120 Hz | 33 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
6.3SJV47M5X6.1CAP ALUM 47UF 20% 6.3V SMD |
0 |
|
Datasheet |
SJV | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 38 mA @ 120 Hz | 57 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
6.3SKV68MC45X5.5CAP ALUM 68UF 20% 6.3V SMD |
0 |
|
Datasheet |
SKV | Tape & Reel (TR) | Obsolete | 68 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
6.3SLV47M5X6.1CAP ALUM 47UF 20% 6.3V SMD |
0 |
|
Datasheet |
SLV | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 38 mA @ 120 Hz | 57 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|

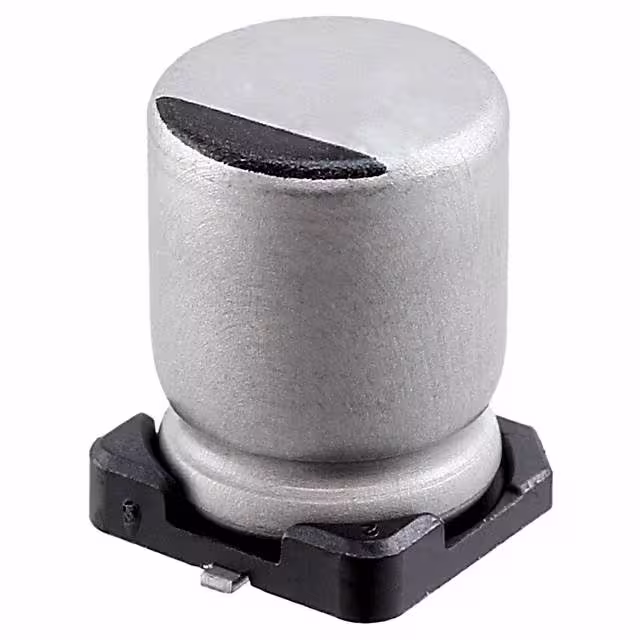

UWS1C331MC1GSCAP ALUM 330UF 20% 16V SMD |
0 |
|
Datasheet |
UWS | Tape & Reel (TR) | Obsolete | 330 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 270 mA @ 120 Hz | 351 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.406" (10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
B41890B7227MCAP ALUM 220UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
B41890 | Bulk | Active | 220 µF | ±20% | 35 V | 74mOhm @ 10kHz | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 1.205 A @ 100 kHz | 62 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
B43697B5336Q7CAP ALUM 33UF 450V AXIAL TH |
0 |
|
Datasheet |
B43697 | Bulk | Obsolete | 33 µF | -10%, +30% | 450 V | 3.5Ohm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | 1.15 A @ 10 kHz | 1.3 Ohms | - | 0.630" Dia x 1.535" L (16.00mm x 39.00mm) | - | - | Through Hole | |
|
|
B43698B5106QCAP ALUM 10UF 450V AXIAL TH |
0 |
|
Datasheet |
B43698 | Bulk | Obsolete | 10 µF | -10%, +30% | 450 V | 8.1Ohm @ 100Hz | 7500 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | 750 mA @ 10 kHz | 3.7 Ohms | - | 0.472" Dia x 1.535" L (12.00mm x 39.00mm) | - | - | Through Hole |
