Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UWR0J330MCL1GBCAP ALUM 33UF 20% 6.3V SMD |
0 |
|
Datasheet |
UWR | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 37 mA @ 120 Hz | 55.5 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|

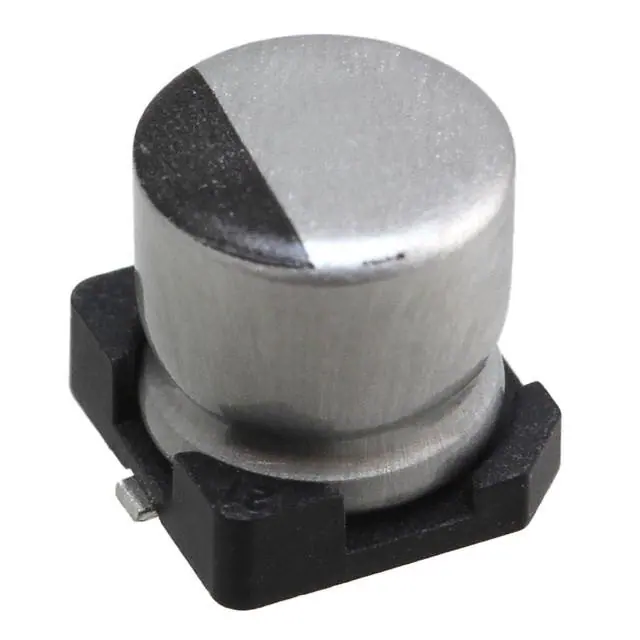

UWR0J560MCL1GBCAP ALUM 56UF 20% 6.3V SMD |
0 |
|
Datasheet |
UWR | Tape & Reel (TR) | Obsolete | 56 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 52 mA @ 120 Hz | 78 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|

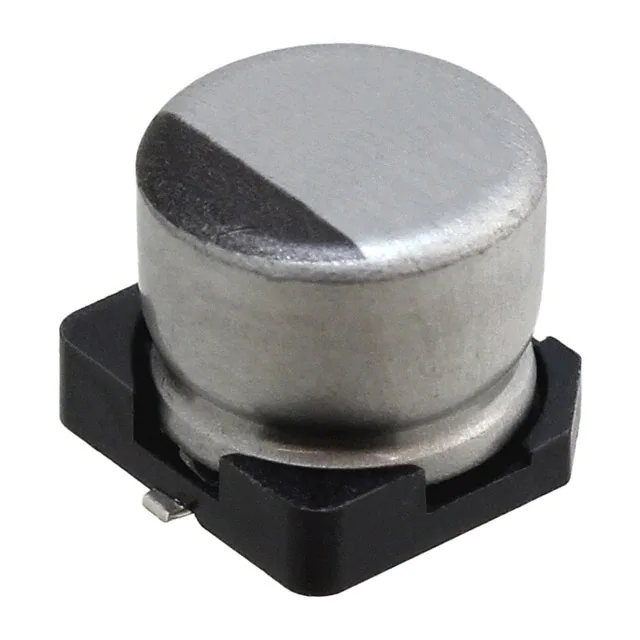

UWR1A151MCL1GBCAP ALUM 150UF 20% 10V SMD |
0 |
|
Datasheet |
UWR | Tape & Reel (TR) | Obsolete | 150 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 111 mA @ 120 Hz | 166.5 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
UWR1A330MCL1GBCAP ALUM 33UF 20% 10V SMD |
0 |
|
Datasheet |
UWR | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 41 mA @ 120 Hz | 61.5 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UWR1A560MCL1GBCAP ALUM 56UF 20% 10V SMD |
0 |
|
Datasheet |
UWR | Tape & Reel (TR) | Obsolete | 56 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 57 mA @ 120 Hz | 85.5 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
UWR1C330MCL1GBCAP ALUM 33UF 20% 16V SMD |
0 |
|
Datasheet |
UWR | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 49 mA @ 120 Hz | 73.5 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
UWR1C560MCL1GBCAP ALUM 56UF 20% 16V SMD |
0 |
|
Datasheet |
UWR | Tape & Reel (TR) | Obsolete | 56 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 63 mA @ 120 Hz | 94.5 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
UWR1E560MCL1GBCAP ALUM 56UF 20% 25V SMD |
0 |
|
Datasheet |
UWR | Tape & Reel (TR) | Obsolete | 56 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 76 mA @ 120 Hz | 114 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UVY1J470MED1TACAP ALUM 47UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
UVY | Tape & Box (TB) | Obsolete | 47 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 120 mA @ 120 Hz | 240 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
RE3-25V101MF3#CAP ALUM 100UF 25V RADIAL |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
RE3-35V101KF3#-T2CAP ALUM 100UF 10% 35V RADIAL TH |
0 |
|
Datasheet |
RE3 | Tape & Box (TB) | Active | 100 µF | ±10% | 35 V | 2.3Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 214 mA @ 120 Hz | 278.2 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
RE3-63V4R7ME3#-T58CAP ALUM 4.7UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
RE3 | Tape & Box (TB) | Active | 4.7 µF | ±20% | 63 V | 35.3Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 45 mA @ 120 Hz | 76.5 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
RJ4-450V220MJ6#CAP ALUM 22UF 20% 450V RADIAL TH |
0 |
|
- |
RJ4 | Bulk | Active | 22 µF | ±20% | 450 V | 18.1Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 160 mA @ 120 Hz | 256 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.083" (27.50mm) | - | Through Hole | |
|
|
RJ4-450V470MJ8#CAP ALUM 47UF 20% 450V RADIAL TH |
0 |
|
- |
RJ4 | Bulk | Active | 47 µF | ±20% | 450 V | 8.47Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 269 mA @ 120 Hz | 430.4 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.496" (38.00mm) | - | Through Hole | |
|
|
RVJ-100V220MH10U-RCAP ALUM 22UF 20% 100V SMD |
0 |
|
Datasheet |
RVJ | Tape & Reel (TR) | Active | 22 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 133 mA @ 120 Hz | 199.5 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount | |
|
|
RVJ-16V471MH10U-RCAP ALUM 470UF 20% 16V SMD |
0 |
|
Datasheet |
RVJ | Tape & Reel (TR) | Active | 470 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 324 mA @ 120 Hz | 405 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount | |
|
|
RVJ-50V470MG10U-RCAP ALUM 47UF 20% 50V SMD |
0 |
|
Datasheet |
RVJ | Tape & Reel (TR) | Active | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 178 mA @ 120 Hz | 267 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | |
|
|
RVJ-6V471MH10U-RCAP ALUM 470UF 20% 6.3V SMD |
0 |
|
Datasheet |
RVJ | Tape & Reel (TR) | Active | 470 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 324 mA @ 120 Hz | 405 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount | |
|
|
RVS-16V470MF55U-RCAP ALUM 47UF 20% 16V SMD |
0 |
|
Datasheet |
RVS | Tape & Reel (TR) | Active | 47 µF | ±20% | 16 V | 7.8Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 47 mA @ 120 Hz | 58.75 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UMA1C4R7MDD1TPCAP ALUM 4.7UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
UMA | Bulk | Obsolete | 4.7 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10 mA @ 120 Hz | 15 mA @ 10 kHz | - | 0.039" (1.00mm) | 0.118" Dia (3.00mm) | 0.236" (6.00mm) | - | Through Hole |
