Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43515A0827MCAP ALUM 820UF 20% 420V SNAP TH |
0 |
|
Datasheet |
B43515 | Tray | Active | 820 µF | ±20% | 420 V | 190mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.26 A @ 100 Hz | - | 230 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|

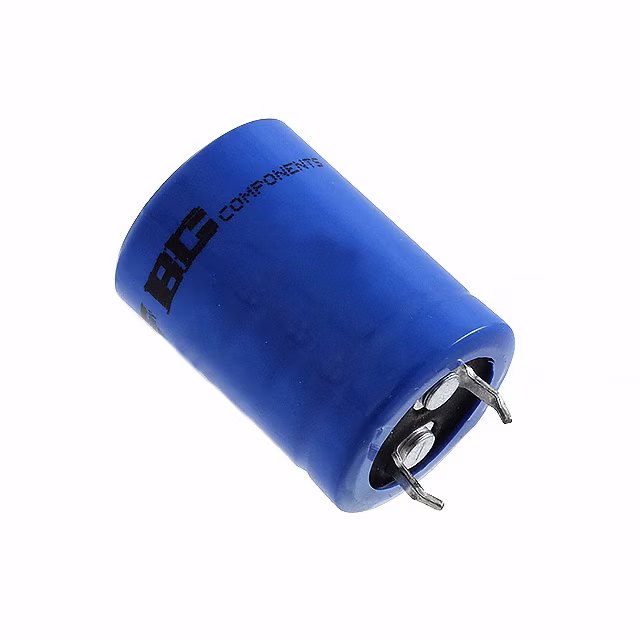

MAL209010472E3CAP ALUM 4700UF 20% 35V SNAP TH |
0 |
|
Datasheet |
090 PUL-SI | Bulk | Discontinued at Digi-Key | 4700 µF | ±20% | 35 V | 78mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 2.8 A @ 100 Hz | - | 53 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL209011332E3CAP ALUM 3300UF 20% 50V SNAP TH |
0 |
|
Datasheet |
090 PUL-SI | Bulk | Discontinued at Digi-Key | 3300 µF | ±20% | 50 V | 101mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 2.6 A @ 100 Hz | - | 73 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

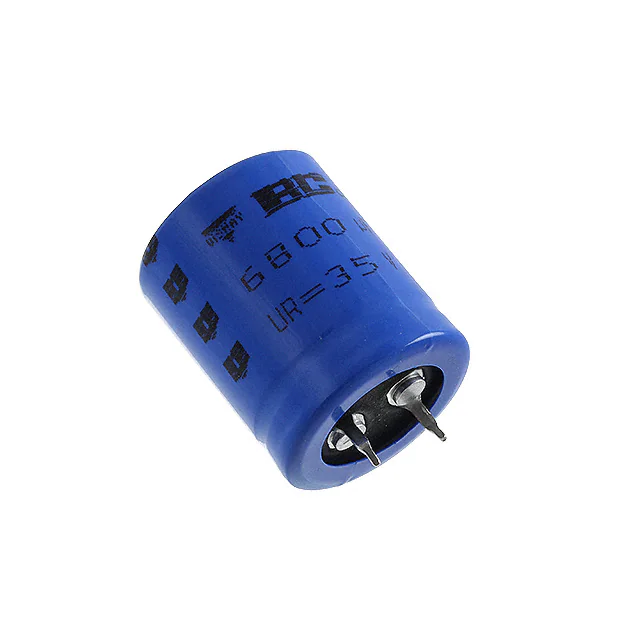

MAL209020682E3CAP ALUM 6800UF 20% 35V SNAP TH |
0 |
|
Datasheet |
090 PUL-SI | Bulk | Discontinued at Digi-Key | 6800 µF | ±20% | 35 V | 70mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 3 A @ 100 Hz | - | 50 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
3188GE552T250AJA2CAP ALUM 5500UF 250V SCREW CHAS |
0 |
|
Datasheet |
3188 | Bulk | Active | 5500 µF | -10%, +50% | 250 V | - | 4000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
LGX2H471MELC50CAP ALUM 470UF 20% 500V SNAP TH |
0 |
|
Datasheet |
LGX | Bulk | Active | 470 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
UAQ2G470MRD3CAP ALUM 47UF 20% 400V RADIAL TH |
0 |
|
Datasheet |
UAQ | Bulk | Obsolete | 47 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 448 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.906" (23.00mm) | - | Through Hole | |
|
|
UAQ2G560MRD3CAP ALUM 56UF 20% 400V RADIAL TH |
0 |
|
Datasheet |
UAQ | Bulk | Obsolete | 56 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 320 mA @ 120 Hz | 512 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.102" (28.00mm) | - | Through Hole | |
|
|
UBT1H100MPD8TACAP ALUM 10UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
UBT | Tape & Box (TB) | Obsolete | 10 µF | ±20% | 50 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 90 mA @ 120 Hz | 180 mA @ 100 kHz | 750 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
|
UBT2A4R7MPD8TACAP ALUM 4.7UF 20% 100V RADIAL |
0 |
|
Datasheet |
UBT | Tape & Box (TB) | Discontinued at Digi-Key | 4.7 µF | ±20% | 100 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 65 mA @ 120 Hz | 130 mA @ 100 kHz | 2 Ohms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
UBW1H010MPD1TACAP ALUM 1UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
UBW | Tape & Box (TB) | Obsolete | 1 µF | ±20% | 50 V | - | 1000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 17.5 mA @ 120 Hz | 35 mA @ 100 kHz | 2 Ohms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
|
UBW1H2R2MPD1TACAP ALUM 2.2UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
UBW | Tape & Box (TB) | Obsolete | 2.2 µF | ±20% | 50 V | - | 1000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 25 mA @ 120 Hz | 50 mA @ 100 kHz | 1.8 Ohms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
|
UBW1H3R3MPD1TACAP ALUM 3.3UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
UBW | Tape & Box (TB) | Obsolete | 3.3 µF | ±20% | 50 V | - | 1000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 30 mA @ 120 Hz | 60 mA @ 100 kHz | 1.5 Ohms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
|
UBW2A4R7MPD1TACAP ALUM 4.7UF 20% 100V RADIAL |
0 |
|
Datasheet |
UBW | Tape & Box (TB) | Obsolete | 4.7 µF | ±20% | 100 V | - | 1000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 65 mA @ 120 Hz | 130 mA @ 100 kHz | 2 Ohms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
UBX1A331MPL1TDCAP ALUM 330UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
UBX | Tape & Box (TB) | Obsolete | 330 µF | ±20% | 10 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 150 mA @ 120 Hz | 300 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
UCD1H331MCL6GSCAP ALUM 330UF 20% 50V SMD |
0 |
|
Datasheet |
UCD | Tape & Reel (TR) | Active | 330 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 400 mA @ 120 Hz | 800 mA @ 100 kHz | 140 mOhms | - | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UEP1A220MDDCAP ALUM 22UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
UEP | Bulk | Obsolete | 22 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | - | - | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UEP1A330MDDCAP ALUM 33UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
UEP | Bulk | Obsolete | 33 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | - | - | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UEP1C100MDD1TACAP ALUM 10UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
UEP | Tape & Box (TB) | Obsolete | 10 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 30 mA @ 120 Hz | 60 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UEP1C470MED1TACAP ALUM 47UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
UEP | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 67 mA @ 120 Hz | 134 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole |
