Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B41895A5688M000CAP ALUM 6800UF 20% 25V RADIAL |
0 |
|
Datasheet |
B41895 | Bulk | Active | 6800 µF | ±20% | 25 V | 19mOhm @ 10kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 4.23 A @ 100 kHz | 16 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
B41895A7478M000CAP ALUM 4700UF 20% 35V RADIAL |
0 |
|
Datasheet |
B41895 | Bulk | Active | 4700 µF | ±20% | 35 V | 19mOhm @ 10kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 4.23 A @ 100 kHz | 16 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|

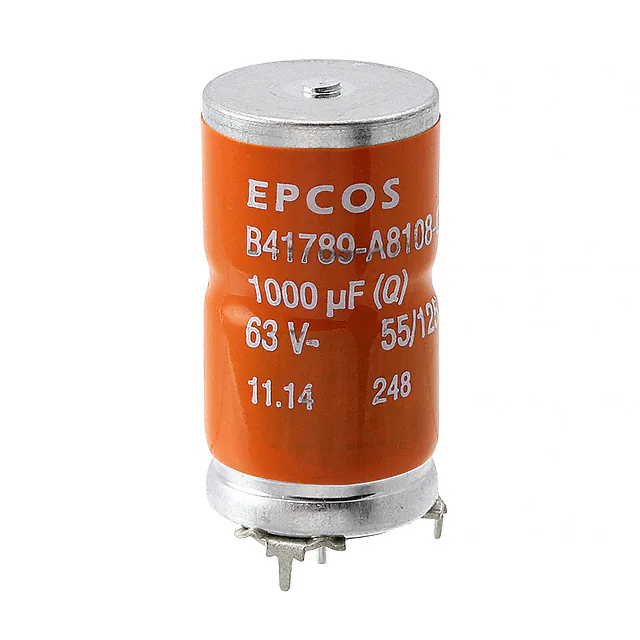

B41789A8108Q001CAP ALUM 1000UF 63V SNAP TH |
0 |
|
Datasheet |
B41789 | Bulk | Obsolete | 1000 µF | -10%, +30% | 63 V | 61mOhm @ 100Hz | 10000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 7.5 A @ 10 kHz | 18 mOhms | 0.846" (21.50mm) | 0.827" Dia (21.00mm) | 1.535" (39.00mm) | - | Through Hole | |
|
B41895A6687MCAP ALUM 680UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
B41895 | Bulk | Active | 680 µF | ±20% | 50 V | 37mOhm @ 10kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.28 A @ 100 kHz | 33 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
B41895B7128M000CAP ALUM 1200UF 20% 35V RADIAL |
0 |
|
Datasheet |
B41895 | Bulk | Active | 1200 µF | ±20% | 35 V | 37mOhm @ 10kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.28 A @ 100 kHz | 34 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
B41895B5278MCAP ALUM 2700UF 20% 25V RADIAL |
0 |
|
Datasheet |
B41895 | Bulk | Active | 2700 µF | ±20% | 25 V | 29mOhm @ 10kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.86 A @ 100 kHz | 26 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
B41895C5278MCAP ALUM 2700UF 20% 25V RADIAL |
0 |
|
Datasheet |
B41895 | Bulk | Active | 2700 µF | ±20% | 25 V | 35mOhm @ 10kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.49 A @ 100 kHz | 32 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
B41895C6128MCAP ALUM 1200UF 20% 50V RADIAL |
0 |
|
Datasheet |
B41895 | Bulk | Active | 1200 µF | ±20% | 50 V | 27mOhm @ 10kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 3.01 A @ 100 kHz | 24 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
B41895B5338MCAP ALUM 3300UF 20% 25V RADIAL |
0 |
|
Datasheet |
B41895 | Bulk | Active | 3300 µF | ±20% | 25 V | 25mOhm @ 10kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 3.16 A @ 100 kHz | 21 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
|
B41895A6158MCAP ALUM 1500UF 20% 50V RADIAL |
0 |
|
Datasheet |
B41895 | Bulk | Active | 1500 µF | ±20% | 50 V | 23mOhm @ 10kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 3.59 A @ 100 kHz | 20 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
B41895A5478MCAP ALUM 4700UF 20% 25V RADIAL |
0 |
|
Datasheet |
B41895 | Bulk | Active | 4700 µF | ±20% | 25 V | 25mOhm @ 10kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 3.39 A @ 100 kHz | 22 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
|
B41689A5108Q001CAP ALUM 1000UF 25V AXIAL TH |
0 |
|
Datasheet |
B41689 | Bulk | Active | 1000 µF | -10%, +30% | 25 V | 565mOhm @ 100Hz | 10000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 3.5 A @ 10 kHz | 50 mOhms | - | 0.630" Dia x 0.984" L (16.00mm x 25.00mm) | - | - | Through Hole | |
|
|
B41689A7567Q001CAP ALUM 560UF 40V AXIAL TH |
0 |
|
Datasheet |
B41689 | Bulk | Active | 560 µF | -10%, +30% | 40 V | 587mOhm @ 100Hz | 10000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 3.5 A @ 10 kHz | 50 mOhms | - | 0.630" Dia x 0.984" L (16.00mm x 25.00mm) | - | - | Through Hole | |
|
|
B41895A6278M000CAP ALUM 2700UF 20% 50V RADIAL |
0 |
|
Datasheet |
B41895 | Bulk | Active | 2700 µF | ±20% | 50 V | 19mOhm @ 10kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 4.23 A @ 100 kHz | 16 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41689A8397Q001CAP ALUM 390UF 63V AXIAL TH |
0 |
|
Datasheet |
B41689 | Bulk | Obsolete | 390 µF | -10%, +30% | 63 V | 602mOhm @ 100Hz | 10000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 3.6 A @ 10 kHz | 51 mOhms | - | 0.709" Dia x 0.984" L (18.00mm x 25.00mm) | - | - | Through Hole | |
|
|
B41689K5108Q001CAP ALUM 1000UF 25V AXIAL TH |
0 |
|
Datasheet |
B41689 | Bulk | Active | 1000 µF | -10%, +30% | 25 V | 565mOhm @ 100Hz | 10000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 3.6 A @ 10 kHz | 50 mOhms | - | 0.630" Dia x 0.984" L (16.00mm x 25.00mm) | - | - | Through Hole | |
|
|
B41689K7567Q001CAP ALUM 560UF 40V AXIAL TH |
0 |
|
Datasheet |
B41689 | Bulk | Active | 560 µF | -10%, +30% | 40 V | 587mOhm @ 100Hz | 10000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 3.6 A @ 10 kHz | 50 mOhms | - | 0.630" Dia x 0.984" L (16.00mm x 25.00mm) | - | - | Through Hole | |
|
|
B41689A5128Q001CAP ALUM 1200UF 25V AXIAL TH |
0 |
|
Datasheet |
B41689 | Bulk | Active | 1200 µF | -10%, +30% | 25 V | 470mOhm @ 100Hz | 10000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 4.2 A @ 10 kHz | 41 mOhms | - | 0.709" Dia x 0.984" L (18.00mm x 25.00mm) | - | - | Through Hole | |
|
|
B41689A8477Q001CAP ALUM 470UF 63V AXIAL TH |
0 |
|
Datasheet |
B41689 | Bulk | Obsolete | 470 µF | -10%, +30% | 63 V | 497mOhm @ 100Hz | 10000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 4.6 A @ 10 kHz | 41 mOhms | - | 0.630" Dia x 1.378" L (16.00mm x 35.00mm) | - | - | Through Hole | |
|
|
B41689A8567Q001CAP ALUM 560UF 63V AXIAL TH |
0 |
|
Datasheet |
B41689 | Bulk | Obsolete | 560 µF | -10%, +30% | 63 V | 420mOhm @ 100Hz | 10000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 4.5 A @ 10 kHz | 37 mOhms | - | 0.709" Dia x 1.181" L (18.00mm x 30.00mm) | - | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
