Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
250LSQ2200MNB51X83CAP ALUM 2200UF 20% 250V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 2200 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 4.602 A @ 10 kHz | - | 0.858" (21.80mm) | 2.008" Dia (51.00mm) | 3.386" (86.00mm) | - | Chassis Mount | |
|
250LSQ4700MNB64X99CAP ALUM 4700UF 20% 250V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 4700 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.3 A @ 120 Hz | 8.614 A @ 10 kHz | - | 1.110" (28.20mm) | 2.520" Dia (64.00mm) | 4.016" (102.00mm) | - | Chassis Mount | |
|
350LSQ1000MNB36X98CAP ALUM 1000UF 20% 350V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 1000 µF | ±20% | 350 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.8 A @ 120 Hz | 4.484 A @ 10 kHz | - | 0.500" (12.70mm) | 1.417" Dia (36.00mm) | 3.976" (101.00mm) | - | Chassis Mount | |
|
400LSQ470MNB36X83CAP ALUM 470UF 20% 400V SCREW CH |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 470 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 2.714 A @ 10 kHz | - | 0.500" (12.70mm) | 1.417" Dia (36.00mm) | 3.386" (86.00mm) | - | Chassis Mount | |
|
400LSQ1500MNB51X98CAP ALUM 1500UF 20% 400V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 1500 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.8 A @ 120 Hz | 5.664 A @ 10 kHz | - | 0.858" (21.80mm) | 2.008" Dia (51.00mm) | 3.976" (101.00mm) | - | Chassis Mount | |
|
|
400LSQ2700MNB64X99CAP ALUM 2700UF 20% 400V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 2700 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.9 A @ 120 Hz | 9.322 A @ 10 kHz | - | 1.110" (28.20mm) | 2.520" Dia (64.00mm) | 4.016" (102.00mm) | - | Chassis Mount | |
|

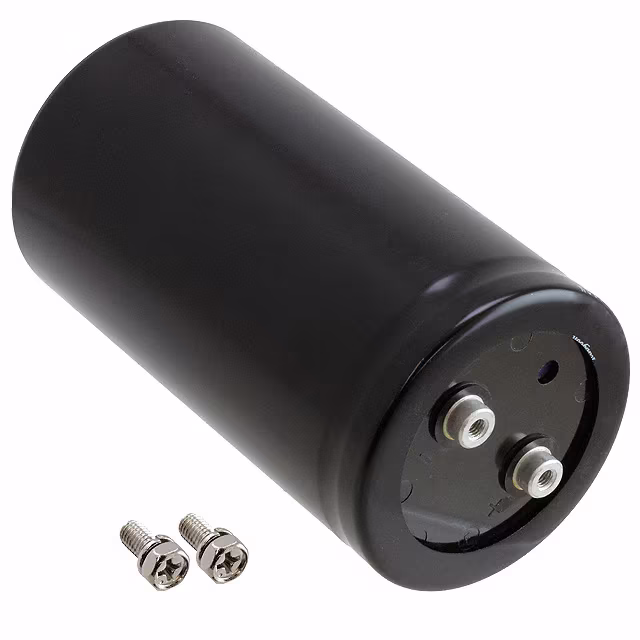

350LSG6800MNB77X141CAP ALUM 6800UF 20% 350V SCREW |
0 |
|
Datasheet |
LSG | Bulk | Obsolete | 6800 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 14.1 A @ 120 Hz | 19.74 A @ 10 kHz | - | 1.236" (31.40mm) | 3.032" Dia (77.00mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
450LSG1000MNB51X98CAP ALUM 1000UF 20% 450V SCREW |
0 |
|
Datasheet |
LSG | Bulk | Obsolete | 1000 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 4.3 A @ 120 Hz | 6.02 A @ 10 kHz | - | 0.858" (21.80mm) | 2.008" Dia (51.00mm) | 3.976" (101.00mm) | - | Chassis Mount | |
|
400LSQ3300MNB64X119CAP ALUM 3300UF 20% 400V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 3300 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.5 A @ 120 Hz | 11.21 A @ 10 kHz | - | 1.110" (28.20mm) | 2.520" Dia (64.00mm) | 4.803" (122.00mm) | - | Chassis Mount | |
|
400LSQ5600MNB77X141CAP ALUM 5600UF 20% 400V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 5600 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 14.5 A @ 120 Hz | 17.11 A @ 10 kHz | - | 1.236" (31.40mm) | 3.032" Dia (77.00mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
|
400LSQ6800MNB77X151CAP ALUM 6800UF 20% 400V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 6800 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 17.5 A @ 120 Hz | 20.65 A @ 10 kHz | - | 1.236" (31.40mm) | 3.032" Dia (77.00mm) | 6.063" (154.00mm) | - | Chassis Mount | |
|
|
16LSQ47000MNB36X83CAP ALUM 47000UF 20% 16V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 47000 µF | ±20% | 16 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.3 A @ 120 Hz | 7.884 A @ 10 kHz | - | 0.500" (12.70mm) | 1.417" Dia (36.00mm) | 3.386" (86.00mm) | - | Chassis Mount | |
|
|
450LSQ1000MNB51X83CAP ALUM 1000UF 20% 450V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 1000 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4 A @ 120 Hz | 4.72 A @ 10 kHz | - | 0.858" (21.80mm) | 2.008" Dia (51.00mm) | 3.386" (86.00mm) | - | Chassis Mount | |
|
|
450LSQ2200MNB64X99CAP ALUM 2200UF 20% 450V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 2200 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.2 A @ 120 Hz | 8.496 A @ 10 kHz | - | 1.110" (28.20mm) | 2.520" Dia (64.00mm) | 4.016" (102.00mm) | - | Chassis Mount | |
|
|
450LSQ2700MNB64X119CAP ALUM 2700UF 20% 450V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 2700 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 8.7 A @ 120 Hz | 10.266 A @ 10 kHz | - | 1.110" (28.20mm) | 2.520" Dia (64.00mm) | 4.803" (122.00mm) | - | Chassis Mount | |
|
350LSU2200MNB51X118CAP ALUM 2200UF 20% 350V SCREW |
0 |
|
Datasheet |
LSU | Bulk | Obsolete | 2200 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 8.7 A @ 120 Hz | 12.18 A @ 10 kHz | - | 0.858" (21.80mm) | 2.008" Dia (51.00mm) | 4.803" (122.00mm) | - | Chassis Mount | |
|
350LSU10000MNB77X191CAP ALUM 10000UF 20% 350V SCREW |
0 |
|
Datasheet |
LSU | Bulk | Obsolete | 10000 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 24.6 A @ 120 Hz | 34.44 A @ 10 kHz | - | 1.236" (31.40mm) | 3.032" Dia (77.00mm) | 7.638" (194.00mm) | - | Chassis Mount | |
|
400LSU10000MNB90X151CAP ALUM 10000UF 20% 400V SCREW |
0 |
|
Datasheet |
LSU | Bulk | Obsolete | 10000 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 27.9 A @ 120 Hz | 39.06 A @ 10 kHz | - | 1.236" (31.40mm) | 3.543" Dia (90.00mm) | 6.063" (154.00mm) | - | Chassis Mount | |
|
400LSU12000MNB90X191CAP ALUM 12000UF 20% 400V SCREW |
0 |
|
Datasheet |
LSU | Bulk | Obsolete | 12000 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 31.5 A @ 120 Hz | 44.1 A @ 10 kHz | - | 1.236" (31.40mm) | 3.543" Dia (90.00mm) | 7.638" (194.00mm) | - | Chassis Mount | |
|
EMVL250ARA330MF60GCAP ALUM 33UF 20% 25V SMD |
0 |
|
Datasheet |
Alchip™- MVL | Tape & Reel (TR) | Active | 33 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 48 mA @ 120 Hz | 51.84 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
