Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

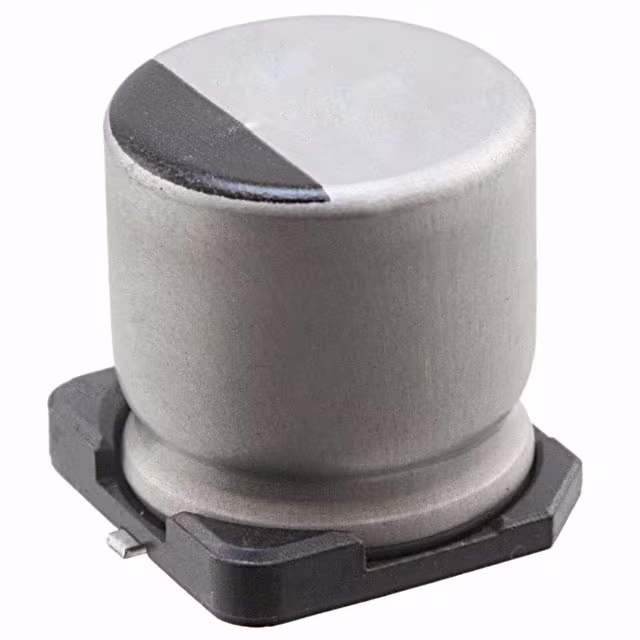

16JKV10M4X5.5CAP ALUM 10UF 20% 16V SMD |
0 |
|
Datasheet |
JKV | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 20 mA @ 120 Hz | 30 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
DCMC643M063CC2FCAP ALUM 64000UF 20% 63V SCREW |
0 |
|
Datasheet |
DCMC | Bulk | Active | 64000 µF | ±20% | 63 V | 13.8mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.125" (28.58mm) | 2.500" Dia (63.50mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
ECO-S2CP391DLCAP ALUM 390UF 20% 160V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 390 µF | ±20% | 160 V | 595mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.54 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
MAL203856102E3CAP ALUM 1000UF 20% 25V RADIAL |
0 |
|
- |
038 RSU | Bulk | Obsolete | 1000 µF | ±20% | 25 V | - | 3500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 1.289 A @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
MAL203868101E3CAP ALUM 100UF 20% 63V RADIAL TH |
0 |
|
- |
038 RSU | Bulk | Obsolete | 100 µF | ±20% | 63 V | - | 3500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 432 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
MAL203858222E3CAP ALUM 2200UF 20% 63V RADIAL |
0 |
|
- |
038 RSU | Bulk | Obsolete | 2200 µF | ±20% | 63 V | - | 3500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 2.242 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL203838101E3CAP ALUM 100UF 20% 63V RADIAL TH |
0 |
|
- |
038 RSU | Cut Tape (CT) | Obsolete | 100 µF | ±20% | 63 V | - | 3500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 432 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
MAL203861471E3CAP ALUM 470UF 20% 50V RADIAL TH |
0 |
|
- |
038 RSU | Bulk | Obsolete | 470 µF | ±20% | 50 V | - | 3500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 1.019 A @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
MAL203856472E3CAP ALUM 4700UF 20% 25V RADIAL |
0 |
|
- |
038 RSU | Bulk | Obsolete | 4700 µF | ±20% | 25 V | - | 3500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 2.783 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
|
MAL203831221E3CAP ALUM 220UF 20% 50V RADIAL TH |
0 |
|
- |
038 RSU | Cut Tape (CT) | Obsolete | 220 µF | ±20% | 50 V | - | 3500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 614.2 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
MAL203838221E3CAP ALUM 220UF 20% 63V RADIAL TH |
0 |
|
- |
038 RSU | Cut Tape (CT) | Obsolete | 220 µF | ±20% | 63 V | - | 3500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 661.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.709" (18.00mm) | - | Through Hole | |
|
MAL203878109E3CAP ALUM 10UF 20% 63V RADIAL TH |
0 |
|
- |
038 RSU | Cut Tape (CT) | Obsolete | 10 µF | ±20% | 63 V | - | 2500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 105 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
MAL203831471E3CAP ALUM 470UF 20% 50V RADIAL TH |
0 |
|
- |
038 RSU | Cut Tape (CT) | Obsolete | 470 µF | ±20% | 50 V | - | 3500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 1.019 A @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
MAL203876101E3CAP ALUM 100UF 20% 25V RADIAL TH |
0 |
|
- |
038 RSU | Cut Tape (CT) | Obsolete | 100 µF | ±20% | 25 V | - | 2500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 256.5 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
MAL203830471E3CAP ALUM 470UF 20% 35V RADIAL TH |
0 |
|
- |
038 RSU | Tape & Box (TB) | Obsolete | 470 µF | ±20% | 35 V | - | 3500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 999 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.709" (18.00mm) | - | Through Hole | |
|
MAL203871101E3CAP ALUM 100UF 20% 50V RADIAL TH |
0 |
|
- |
038 RSU | Tape & Box (TB) | Obsolete | 100 µF | ±20% | 50 V | - | 2500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 351 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
MAL203855472E3CAP ALUM 4700UF 20% 16V RADIAL |
0 |
|
- |
038 RSU | Bulk | Obsolete | 4700 µF | ±20% | 16 V | - | 3500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 2.404 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL203856332E3CAP ALUM 3300UF 20% 25V RADIAL |
0 |
|
- |
038 RSU | Bulk | Obsolete | 3300 µF | ±20% | 25 V | - | 3500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 2.271 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL203855331E3CAP ALUM 330UF 20% 16V RADIAL TH |
0 |
|
- |
038 RSU | Bulk | Obsolete | 330 µF | ±20% | 16 V | - | 2500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 499.5 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
MAL203855332E3CAP ALUM 3300UF 20% 16V RADIAL |
0 |
|
- |
038 RSU | Bulk | Obsolete | 3300 µF | ±20% | 16 V | - | 3500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 1.903 A @ 10 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 1.063" (27.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
