Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
450GXK390MEFCSN25X50CAP ALUM 450V POLAR |
191 |
|
Datasheet |
GXK | Bulk | Active | 390 µF | ±20% | 450 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.91 A @ 120 Hz | 2.674 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
450HXK330MEPASN22X55CAP ALUM 330UF 20% 450V SNAP TH |
195 |
|
Datasheet |
HXK | Bulk | Active | 330 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.88 A @ 120 Hz | 2.632 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
|
EKVA451VSN441MR40SCAP ALUM 450V POLAR |
388 |
|
Datasheet |
KVA | Bulk | Active | 440 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.73 A @ 120 Hz | 2.4739 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
|
450VXT330MEFCSN22X50CAP ALUM 330UF 20% 450V SNAP TH |
173 |
|
Datasheet |
VXT | Bulk | Active | 330 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 120 Hz | 2.436 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
B43657A5367M057CAP ALUM 360UF 20% 450V SNAP TH |
970 |
|
Datasheet |
B43657 | Bulk | Active | 360 µF | ±20% | 450 V | 330mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.81 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia x 1.575" L (25.00mm x 40.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43544B7227M000CAP ALUM 220UF 20% 550V SNAP TH |
240 |
|
Datasheet |
B43544 | Tray | Active | 220 µF | ±20% | 550 V | 530mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.56 A @ 100 Hz | - | 830 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
450HXK330MEPASN25X45CAP ALUM 330UF 20% 450V SNAP TH |
197 |
|
Datasheet |
HXK | Bulk | Active | 330 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.81 A @ 120 Hz | 2.534 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
B43647C5477M050CAP ALUM 450V POLAR |
240 |
|
Datasheet |
B43647 | Bulk | Active | 470 µF | ±20% | 450 V | 250mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 100 Hz | - | 390 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
420HXH390MEPASN25X45CAP ALUM 390UF 20% 420V SNAP TH |
200 |
|
Datasheet |
HXH | Bulk | Active | 390 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.89 A @ 120 Hz | 2.646 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
420HXK390MEPASN25X45CAP ALUM 390UF 20% 420V SNAP TH |
198 |
|
Datasheet |
HXK | Bulk | Active | 390 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.92 A @ 120 Hz | 2.688 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
B43644A9687M067CAP ALUM 400V POLAR |
240 |
|
Datasheet |
B43644 | Bulk | Active | 680 µF | ±20% | 400 V | 140mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.53 A @ 100 Hz | - | 220 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

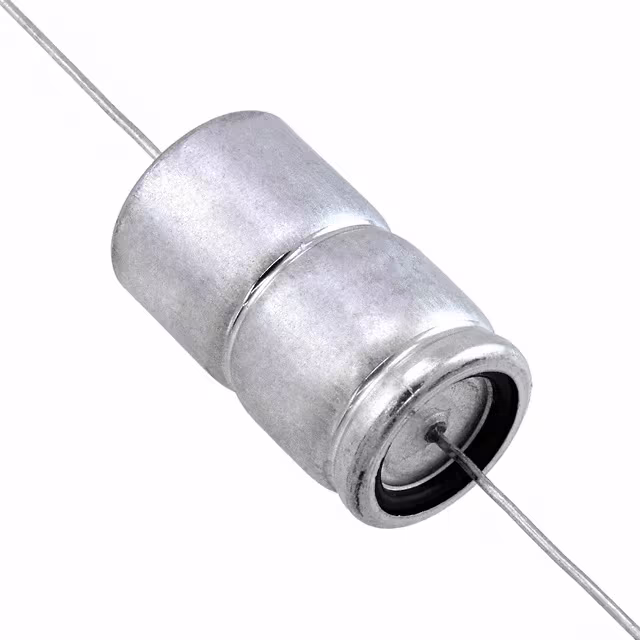

PEG226HJ4330QE1CAP ALUM 3300UF 25V AXIAL TH |
925 |
|
Datasheet |
PEG226 | Bulk | Active | 3300 µF | -10%, +30% | 25 V | 34mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 3.115 A @ 100 Hz | - | - | - | 0.787" Dia x 1.457" L (20.00mm x 37.00mm) | - | - | Through Hole | |
|
|
600MXH100MEFCSN30X30CAP ALUM 600V POLAR |
176 |
|
Datasheet |
MXH | Bulk | Active | 100 µF | ±20% | 600 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.26 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
EKLA221LIN142KA45MCAP ALUM 1400UF 10% 220V SNAP TH |
396 |
|
Datasheet |
KLA | Bulk | Active | 1400 µF | ±10% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.81 A @ 120 Hz | 7.215 A @ 50 kHz | - | 0.559" (14.20mm) | 1.378" Dia (35.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
|
LHT2W271MELC30CAP ALUM 270UF 20% 450V SNAP TH |
400 |
|
Datasheet |
LHT | Bulk | Active | 270 µF | ±20% | 450 V | - | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 1.34 A @ 120 Hz | 1.9162 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.280" (32.50mm) | - | Through Hole | |
|
EKMM451VSN561MA60SCAP ALUM 560UF 20% 450V SNAP TH |
368 |
|
Datasheet |
KMM | Bulk | Active | 560 µF | ±20% | 450 V | 592mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.91 A @ 120 Hz | 2.7313 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
|
SNAJ45122M250BKCAP ALUM 250V POLAR |
200 |
|
Datasheet |
SNA | Bulk | Active | 1.2 mF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.05 A @ 120 Hz | 4.575 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
B43547B9337M000CAP ALUM SNAP |
320 |
|
Datasheet |
B43547 | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
B43641A9687M057CAP ALUM 680UF 20% 400V SNAP TH |
320 |
|
Datasheet |
B43641 | Bulk | Active | 680 µF | ±20% | 400 V | 150mOhm @ 100Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.26 A @ 100 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B43545C9397M000CAP ALUM 390UF 20% 400V SNAP TH |
240 |
|
Datasheet |
B43545 | Tray | Active | 390 µF | ±20% | 400 V | 150mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.28 A @ 100 Hz | - | 220 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
