Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B41456B4479M000CAP ALUM 47000UF 20% 16V SCREW |
0 |
|
Datasheet |
B41456 | Bulk | Obsolete | 47000 µF | ±20% | 16 V | 16mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11 A @ 100 Hz | - | 13 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.177" (80.70mm) | - | Chassis Mount | |
|

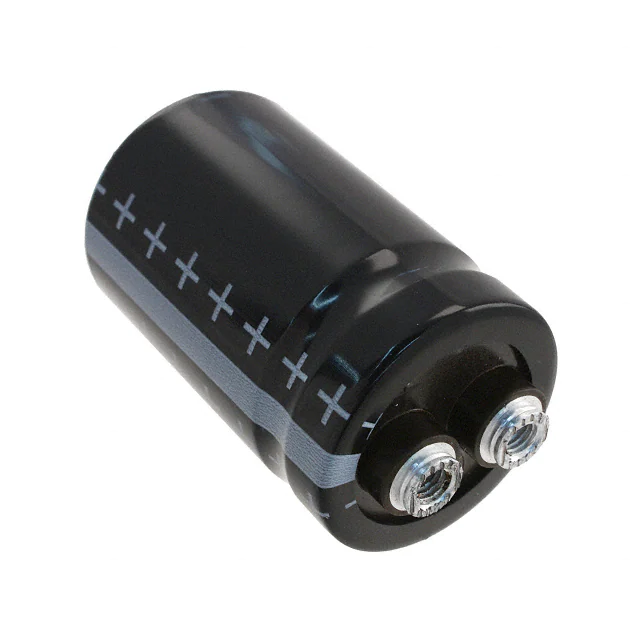

B41456B7109M000CAP ALUM 10000UF 20% 40V SCREW |
0 |
|
Datasheet |
B41456 | Bulk | Obsolete | 10000 µF | ±20% | 40 V | 37mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.3 A @ 100 Hz | - | 34 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 2.193" (55.70mm) | - | Chassis Mount | |
|
|
B41456B7229M000CAP ALUM 22000UF 20% 40V SCREW |
0 |
|
Datasheet |
B41456 | Bulk | Obsolete | 22000 µF | ±20% | 40 V | 20mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.6 A @ 100 Hz | - | 18 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.177" (80.70mm) | - | Chassis Mount | |
|
|
B41456B8109M000CAP ALUM 10000UF 20% 63V SCREW |
0 |
|
Datasheet |
B41456 | Bulk | Obsolete | 10000 µF | ±20% | 63 V | 31mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.7 A @ 100 Hz | - | 30 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.177" (80.70mm) | - | Chassis Mount | |
|
|
B41456B9478M000CAP ALUM 4700UF 20% 100V SCREW |
0 |
|
Datasheet |
B41456 | Bulk | Obsolete | 4700 µF | ±20% | 100 V | 40mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.7 A @ 100 Hz | - | 35 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.177" (80.70mm) | - | Chassis Mount | |
|
382LX393M035N052CAP ALUM 39000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
382LX | Bulk | Active | 39000 µF | ±20% | 35 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8 A @ 120 Hz | 9.2 A @ 20 kHz | - | - | 1.575" Dia (40.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
382LX393M050N082CAP ALUM 39000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
382LX | Bulk | Active | 39000 µF | ±20% | 50 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
382LX183M063N062CAP ALUM 18000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
382LX | Bulk | Active | 18000 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.25 A @ 120 Hz | 10.6 A @ 20 kHz | - | - | 1.575" Dia (40.00mm) | 2.559" (65.00mm) | - | Through Hole | |
|
382LX822M080A052CAP ALUM 8200UF 20% 80V SNAP TH |
0 |
|
Datasheet |
382LX | Bulk | Active | 8200 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
382LX222M200A052CAP ALUM 2200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
382LX | Bulk | Active | 2200 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
382LX182M350N082CAP ALUM 1800UF 20% 350V SNAP TH |
0 |
|
Datasheet |
382LX | Bulk | Active | 1800 µF | ±20% | 350 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.85 A @ 120 Hz | 8.2 A @ 20 kHz | - | - | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
UVY1H010MDDCAP ALUM 1UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 1 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 13 mA @ 120 Hz | 26 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
UVR1H4R7MDD1TDCAP ALUM 4.7UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
UVR | Tape & Box (TB) | Obsolete | 4.7 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 40 mA @ 120 Hz | 80 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVR1H010MDD1TDCAP ALUM 1UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
UVR | Tape & Box (TB) | Obsolete | 1 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17 mA @ 120 Hz | 34 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UVR1E100MDD1TACAP ALUM 10UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
UVR | Tape & Box (TB) | Obsolete | 10 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 55 mA @ 120 Hz | 110 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVR1C101MDD1TDCAP ALUM 100UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
UVR | Tape & Box (TB) | Obsolete | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 160 mA @ 120 Hz | 240 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
USR1V100MDDCAP ALUM 10UF 20% 35V RADIAL TH |
0 |
|
- |
USR | Bulk | Obsolete | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 31 mA @ 120 Hz | - | - | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.276" (7.00mm) | - | Through Hole | |
|
|
USR1E100MDDCAP ALUM 10UF 20% 25V RADIAL TH |
0 |
|
- |
USR | Bulk | Obsolete | 10 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28 mA @ 120 Hz | 42 mA @ 10 kHz | - | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.276" (7.00mm) | - | Through Hole | |
|
USR1C101MDDCAP ALUM 100UF 20% 16V RADIAL TH |
0 |
|
- |
USR | Bulk | Obsolete | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 98 mA @ 120 Hz | 147 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.276" (7.00mm) | - | Through Hole | |
|
|
USR1C100MDDCAP ALUM 10UF 20% 16V RADIAL TH |
0 |
|
- |
USR | Bulk | Obsolete | 10 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28 mA @ 120 Hz | 42 mA @ 10 kHz | - | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.276" (7.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
