Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
420MXT220MEFCSN25X25CAP ALUM 220UF 20% 420V SNAP TH |
199 |
|
Datasheet |
MXT | Bulk | Active | 220 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.11 A @ 120 Hz | 1.554 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EKHE451VSN321MR25ZCAP ALUM 450V POLAR |
400 |
|
Datasheet |
KHE | Bulk | Active | 320 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.39 A @ 120 Hz | 1.8487 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.083" (27.50mm) | - | Through Hole | |
|
EKMW401VSN151MP25SCAP ALUM 150UF 20% 400V SNAP TH |
200 |
|
Datasheet |
KMW | Bulk | Active | 150 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 120 Hz | 1.3013 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.083" (27.50mm) | - | Through Hole | |
|
227LBB400M2ECCAP ALUM 220UF 20% 400V SNAP TH |
1,178 |
|
Datasheet |
LBB | Bulk | Active | 220 µF | ±20% | 400 V | 1.13036Ohm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.66 A @ 120 Hz | 2.4402 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EKMS501VSN820MP35SCAP ALUM 82UF 20% 500V SNAP TH |
200 |
|
Datasheet |
KMS | Bulk | Active | 82 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 1.0296 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
PEH532VAC3100M2CAP ALUM SNAP-IN 105C |
1,600 |
|
Datasheet |
PEH532 | Box | Active | 100 µF | ±20% | 400 V | 1.1Ohm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 600 mA @ 100 Hz | 1.6 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL225952471E3CAP ALUM 470UF 20% 200V SNAP TH |
692 |
|
Datasheet |
259 PHM-SI | Bulk | Active | 470 µF | ±20% | 200 V | 240mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.05 A @ 100 Hz | 3.075 A @ 10 kHz | 150 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
420VXH180MEFCSN25X30CAP ALUM 180UF 20% 420V SNAP TH |
600 |
|
Datasheet |
VXH | Bulk | Active | 180 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.19 A @ 120 Hz | 1.666 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
600MXH82MEFCSN22X45CAP ALUM 600V POLAR |
400 |
|
Datasheet |
MXH | Bulk | Active | 82 µF | ±20% | 600 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 830 mA @ 120 Hz | 1.162 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
450BHW130MSPA18X35CAP ALUM 450V POLAR |
199 |
|
Datasheet |
BHW | Bulk | Active | 130 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 900 mA @ 120 Hz | 1.8 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
420HXK180MEPASN25X25CAP ALUM 180UF 20% 420V SNAP TH |
197 |
|
Datasheet |
HXK | Bulk | Active | 180 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.13 A @ 120 Hz | 1.582 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ELXS401VSN391MA30SCAP ALUM 390UF 20% 400V SNAP TH |
387 |
|
Datasheet |
LXS | Bulk | Active | 390 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.68 A @ 120 Hz | 2.4024 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
MAL225757101E3CAP ALUM 100UF 20% 450V SNAP TH |
793 |
|
Datasheet |
257 PRM-SI | Box | Active | 100 µF | ±20% | 450 V | 1.78Ohm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 900 mA @ 100 Hz | 1.26 A @ 10 kHz | 1.47 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EKMT451VSN271MQ50SCAP ALUM 270UF 20% 450V SNAP TH |
400 |
|
Datasheet |
KMT | Bulk | Active | 270 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 120 Hz | 2.4882 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 2.067" (52.50mm) | - | Through Hole | |
|
|
EKLA181LIN901KR35MCAP ALUM 900UF 10% 180V SNAP TH |
400 |
|
Datasheet |
KLA | Bulk | Active | 900 µF | ±10% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.76 A @ 120 Hz | 5.64 A @ 50 kHz | - | 0.559" (14.20mm) | 1.181" Dia (30.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
420BHW150MSPA16X45CAP ALUM 420V POLAR |
200 |
|
Datasheet |
BHW | Bulk | Active | 150 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.01 A @ 120 Hz | 2.02 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

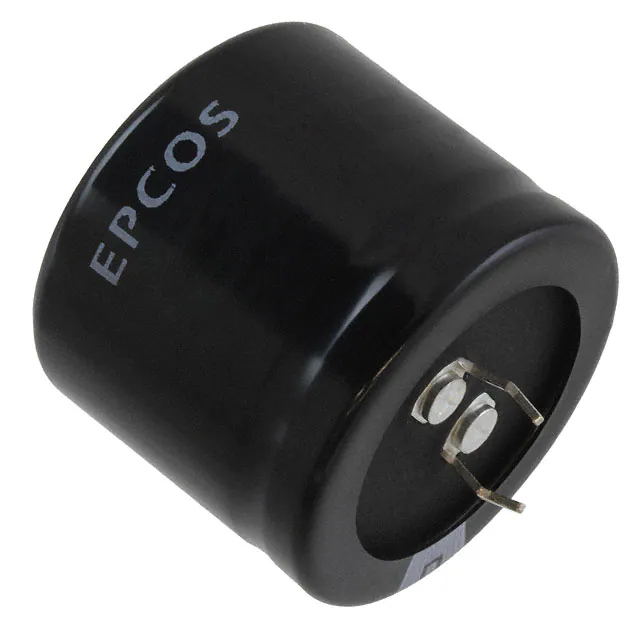

B43501B3227M007CAP ALUM 220UF 20% 385V SNAP TH |
424 |
|
Datasheet |
B43501 | Bulk | Active | 220 µF | ±20% | 385 V | 300mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.4 A @ 100 Hz | - | 490 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
EKLA201LIN112KA35MCAP ALUM 1100UF 10% 200V SNAP TH |
400 |
|
Datasheet |
KLA | Bulk | Active | 1100 µF | ±10% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.97 A @ 120 Hz | 5.955 A @ 50 kHz | - | 0.559" (14.20mm) | 1.378" Dia (35.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
550MXH82MEFCSN22X35CAP ALUM 82UF 20% 550V SNAP |
198 |
|
Datasheet |
MXH | Bulk | Active | 82 µF | ±20% | 550 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 800 mA @ 120 Hz | 1.12 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
50MXC6800MEFCSN25X45CAP ALUM 6800UF 20% 50V SNAP TH |
190 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 6800 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.795 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
