Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MVE100VC47RMK14TRCAP ALUM 47UF 20% 100V SMD |
0 |
|
- |
MVE | Tray | Obsolete | 47 µF | ±20% | 100 V | 3.527Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 250 mA @ 120 Hz | - | - | - | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount | |
|
|
MVE63VE471ML22TRCAP ALUM 470UF 20% 63V SMD |
0 |
|
- |
MVE | Tray | Obsolete | 470 µF | ±20% | 63 V | 494mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | - | - | - | 0.630" Dia (16.00mm) | 0.846" (21.50mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
|
MVH25VC331MK14TRCAP ALUM 330UF 20% 25V SMD |
0 |
|
Datasheet |
MVH | Tray | Obsolete | 330 µF | ±20% | 25 V | 140mOhm @ 120Hz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | - | 750 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount | |
|
|
MVH16VC471MK14TRCAP ALUM 470UF 20% 16V SMD |
0 |
|
Datasheet |
MVH | Tray | Obsolete | 470 µF | ±20% | 16 V | 140mOhm @ 120Hz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | - | 750 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount | |
|
|
MVA100VC101MK14TRCAP ALUM 100UF 20% 100V SMD |
0 |
|
Datasheet |
MVA | Tray | Obsolete | 100 µF | ±20% | 100 V | 1.658Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 440 mA @ 120 Hz | - | - | - | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount | |
|
|
MVY10VC222MK16TRCAP ALUM 2200UF 20% 10V SMD |
0 |
|
Datasheet |
MVY | Tray | Obsolete | 2200 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 950 mA @ 100 kHz | 60 mOhms | - | 0.492" Dia (12.50mm) | 0.630" (16.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount | |
|
|
MVA63VC101MK14TRCAP ALUM 100UF 20% 63V SMD |
0 |
|
Datasheet |
MVA | Tray | Obsolete | 100 µF | ±20% | 63 V | 2.321Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 380 mA @ 120 Hz | - | - | - | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount | |
|
|
MVY16VC102MK14TRCAP ALUM 1000UF 20% 16V SMD |
0 |
|
Datasheet |
MVY | Tray | Obsolete | 1000 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 820 mA @ 100 kHz | 70 mOhms | - | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount | |
|
|
MVE16VC102MK14TRCAP ALUM 1000UF 20% 16V SMD |
0 |
|
- |
MVE | Tray | Obsolete | 1000 µF | ±20% | 16 V | 497mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 550 mA @ 120 Hz | - | - | - | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount | |
|
|
MVE6.3VC332MK16TRCAP ALUM 3300UF 20% 6.3V SMD |
0 |
|
- |
MVE | Tray | Obsolete | 3300 µF | ±20% | 6.3 V | 211mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 120 Hz | - | - | - | 0.492" Dia (12.50mm) | 0.630" (16.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount | |
|
|
MVY6.3VC222MK14TRCAP ALUM 2200UF 20% 6.3V SMD |
0 |
|
Datasheet |
MVY | Tray | Obsolete | 2200 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 820 mA @ 100 kHz | 70 mOhms | - | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount | |
|

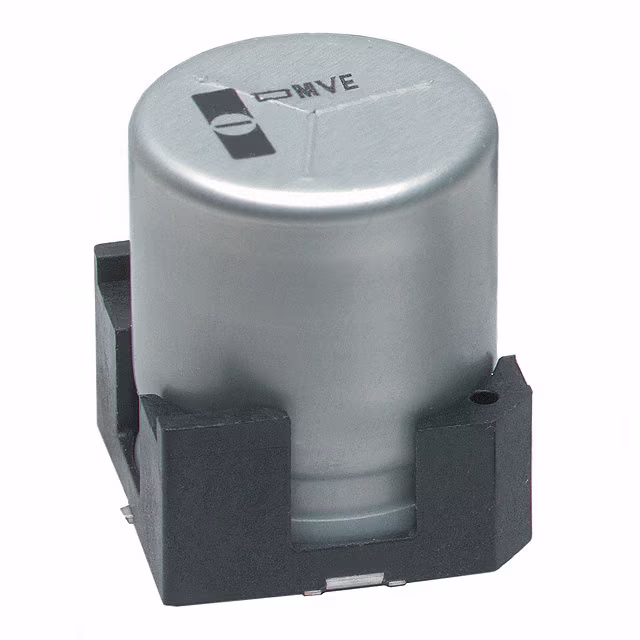

MVE6.3VC222MK14TRCAP ALUM 2200UF 20% 6.3V SMD |
0 |
|
- |
MVE | Tray | Obsolete | 2200 µF | ±20% | 6.3 V | 301mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 680 mA @ 120 Hz | - | - | - | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount | |
|
|
MVE10VC222MK16TRCAP ALUM 2200UF 20% 10V SMD |
0 |
|
- |
MVE | Tray | Obsolete | 2200 µF | ±20% | 10 V | 271mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 120 Hz | - | - | - | 0.492" Dia (12.50mm) | 0.630" (16.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount | |
|
SMG6.3VB33RM5X11LLCAP ALUM 33UF 20% 6.3V RADIAL TH |
0 |
|
- |
SMG | Bulk | Obsolete | 33 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 77 mA @ 120 Hz | 138.6 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
SMG6.3VB47RM5X11LLCAP ALUM 47UF 20% 6.3V RADIAL TH |
0 |
|
- |
SMG | Bulk | Obsolete | 47 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 92 mA @ 120 Hz | 165.6 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
SMG6.3VB101M5X11LLCAP ALUM 100UF 20% 6.3V RADIAL |
0 |
|
- |
SMG | Bulk | Obsolete | 100 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 134 mA @ 120 Hz | 201 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
SMG6.3VB221M5X11LLCAP ALUM 220UF 20% 6.3V RADIAL |
0 |
|
- |
SMG | Bulk | Obsolete | 220 µF | ±20% | 6.3 V | 2.562Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 200 mA @ 120 Hz | 300 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
SMG6.3VB331M6X11LLCAP ALUM 330UF 20% 6.3V RADIAL |
0 |
|
- |
SMG | Bulk | Obsolete | 330 µF | ±20% | 6.3 V | 1.708Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 270 mA @ 120 Hz | 405 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
SMG6.3VB471M6X11LLCAP ALUM 470UF 20% 6.3V RADIAL |
0 |
|
- |
SMG | Bulk | Obsolete | 470 µF | ±20% | 6.3 V | 1.199Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 320 mA @ 120 Hz | 480 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole | |
|
SMG6.3VB222M10X20LLCAP ALUM 2200UF 20% 6.3V RADIAL |
0 |
|
- |
SMG | Bulk | Obsolete | 2200 µF | ±20% | 6.3 V | 271mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.08 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
