Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MVY6.3VC22RMD55TPCAP ALUM 22UF 20% 6.3V SMD |
0 |
|
Datasheet |
MVY | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 60 mA @ 100 kHz | 3 Ohms | - | 0.157" Dia (4.00mm) | 0.205" (5.20mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
MVY6.3VC102MH10TPCAP ALUM 1000UF 20% 6.3V SMD |
0 |
|
Datasheet |
MVY | Tape & Reel (TR) | Obsolete | 1000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 450 mA @ 100 kHz | 300 mOhms | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
MVY6.3VC152MJ10TPCAP ALUM 1500UF 20% 6.3V SMD |
0 |
|
Datasheet |
MVY | Tape & Reel (TR) | Obsolete | 1500 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 670 mA @ 100 kHz | 150 mOhms | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
MVY10VC22RME55TPCAP ALUM 22UF 20% 10V SMD |
0 |
|
Datasheet |
MVY | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 95 mA @ 100 kHz | 1.8 Ohms | - | 0.197" Dia (5.00mm) | 0.205" (5.20mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
MVY6.3VC33RME55TPCAP ALUM 33UF 20% 6.3V SMD |
0 |
|
Datasheet |
MVY | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 95 mA @ 100 kHz | 1.8 Ohms | - | 0.197" Dia (5.00mm) | 0.205" (5.20mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
MVKBP6.3VC47RMF60TPCAP ALUM 47UF 20% 6.3V SMD |
0 |
|
- |
Alchip™- MVK-BP | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Bi-Polar | - | General Purpose | 39 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
MVKBP50VCR33MD60TPCAP ALUM 0.33UF 20% 50V SMD |
0 |
|
- |
Alchip™- MVK-BP | Tape & Reel (TR) | Obsolete | 0.33 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Bi-Polar | - | General Purpose | 2.8 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.224" (5.70mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
MVKBP50VC1R5MD60TPCAP ALUM 1.5UF 20% 50V SMD |
0 |
|
- |
Alchip™- MVK-BP | Tape & Reel (TR) | Obsolete | 1.5 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Bi-Polar | - | General Purpose | 7.5 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.224" (5.70mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
MVKBP50VCR47MD60TPCAP ALUM 0.47UF 20% 50V SMD |
0 |
|
- |
Alchip™- MVK-BP | Tape & Reel (TR) | Obsolete | 0.47 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Bi-Polar | - | General Purpose | 3.4 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.224" (5.70mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
MVKBP50VC1R0MD60TPCAP ALUM 1UF 20% 50V SMD |
0 |
|
- |
Alchip™- MVK-BP | Tape & Reel (TR) | Obsolete | 1 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Bi-Polar | - | General Purpose | 5.5 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.224" (5.70mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
MVKBP50VC3R3ME60TPCAP ALUM 3.3UF 20% 50V SMD |
0 |
|
- |
Alchip™- MVK-BP | Tape & Reel (TR) | Obsolete | 3.3 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Bi-Polar | - | General Purpose | 13 mA @ 120 Hz | - | - | - | 0.197" Dia (5.00mm) | 0.224" (5.70mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
MVKBP50VC2R2ME60TPCAP ALUM 2.2UF 20% 50V SMD |
0 |
|
- |
Alchip™- MVK-BP | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Bi-Polar | - | General Purpose | 10 mA @ 120 Hz | - | - | - | 0.197" Dia (5.00mm) | 0.224" (5.70mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
MVKBP6.3VC22RME60TPCAP ALUM 22UF 20% 6.3V SMD |
0 |
|
- |
Alchip™- MVK-BP | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Bi-Polar | - | General Purpose | 25 mA @ 120 Hz | - | - | - | 0.197" Dia (5.00mm) | 0.224" (5.70mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|

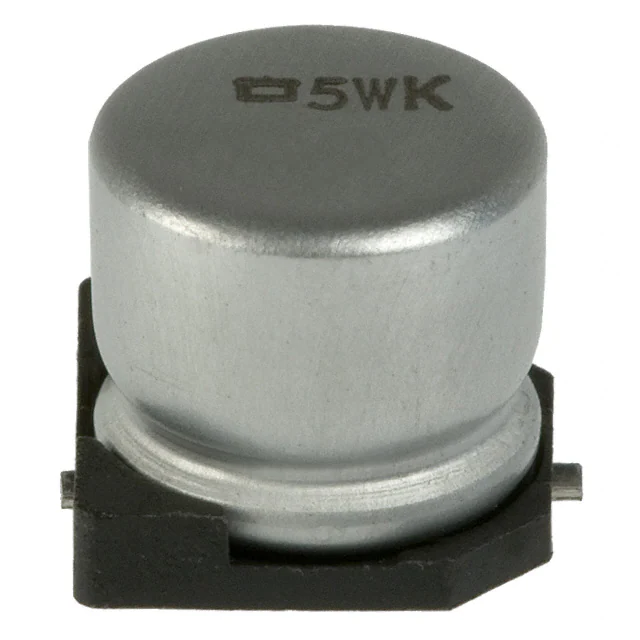

MVKBP50VC4R7MF60TPCAP ALUM 4.7UF 20% 50V SMD |
0 |
|
- |
Alchip™- MVK-BP | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Bi-Polar | - | General Purpose | 16 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
MVKBP50VC6R8MF60TPCAP ALUM 6.8UF 20% 50V SMD |
0 |
|
- |
Alchip™- MVK-BP | Tape & Reel (TR) | Obsolete | 6.8 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Bi-Polar | - | General Purpose | 20 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
MVKBP6.3VC10RMD60TPCAP ALUM 10UF 20% 6.3V SMD |
0 |
|
- |
Alchip™- MVK-BP | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Bi-Polar | - | General Purpose | 14 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.224" (5.70mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
MVK35VC221MJ10TPCAP ALUM 220UF 20% 35V SMD |
0 |
|
- |
MVK | Tape & Reel (TR) | Obsolete | 220 µF | ±20% | 35 V | 1.055Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 375 mA @ 120 Hz | - | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
MVY10VC47RMF55TPCAP ALUM 47UF 20% 10V SMD |
0 |
|
Datasheet |
MVY | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 140 mA @ 100 kHz | 1 Ohms | - | 0.248" Dia (6.30mm) | 0.205" (5.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
MVH35VC101MJ10TPCAP ALUM 100UF 20% 35V SMD |
0 |
|
Datasheet |
MVH | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 35 V | 700mOhm @ 120Hz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | - | 151 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
MVH35VC33RMF80TPCAP ALUM 33UF 20% 35V SMD |
0 |
|
Datasheet |
MVH | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 35 V | 2.3Ohm @ 120Hz | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | - | 62 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
