Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FM1H181LBJCAP ALUM 180UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
FM-A | Tape & Box (TB) | Obsolete | 180 µF | ±20% | 50 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.001 A @ 120 Hz | 1.43 A @ 100 kHz | 33 mOhms | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
ECE-P2DP682HACAP ALUM 6800UF 20% 200V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 6800 µF | ±20% | 200 V | 32mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.41 A @ 120 Hz | 15.97 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 3.150" (80.00mm) | - | Through Hole | |
|

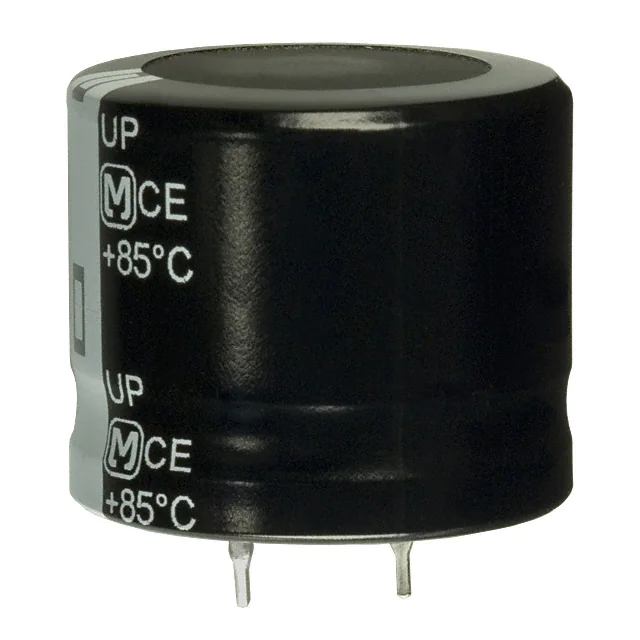

ECO-S1VP472DLCAP ALUM 4700UF 20% 35V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 4700 µF | ±20% | 35 V | 88mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.3 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
EEU-EB1E101CAP ALUM 100UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
EB-A | Bulk | Obsolete | 100 µF | ±20% | 25 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 135 mA @ 120 Hz | 175.5 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.630" (16.00mm) | - | Through Hole | |
|
UCA2E470MHT6CAP ALUM 47UF 20% 250V RADIAL TH |
0 |
|
Datasheet |
UCA | Bulk | Obsolete | 47 µF | ±20% | 250 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 375 mA @ 120 Hz | 750 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
ESMG6R3ELL103MN25SCAP ALUM 10000UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
SMG | Bulk | Obsolete | 10000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.31 A @ 120 Hz | 2.4948 A @ 100 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
ESMG6R3ELL153MN30SCAP ALUM 15000UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
SMG | Bulk | Obsolete | 15000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.66 A @ 120 Hz | 2.8728 A @ 100 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
ESMG6R3ELL223MN40SCAP ALUM 22000UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
SMG | Bulk | Obsolete | 22000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.13 A @ 120 Hz | 3.3804 A @ 100 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
ESMG6R3ELL273MP40SCAP ALUM 27000UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
SMG | Bulk | Obsolete | 27000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.28 A @ 120 Hz | 3.5424 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ESMG100ELL471MF11DCAP ALUM 470UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
SMG | Bulk | Discontinued at Digi-Key | 470 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 350 mA @ 120 Hz | 525 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
ESMG100ELL102MJC5SCAP ALUM 1000UF 20% 10V RADIAL |
0 |
|
Datasheet |
SMG | Bulk | Obsolete | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 650 mA @ 120 Hz | 975 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
ESMG100ELL103MN25SCAP ALUM 10000UF 20% 10V RADIAL |
0 |
|
Datasheet |
SMG | Bulk | Obsolete | 10000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.41 A @ 120 Hz | 2.6028 A @ 100 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
ESMG100ELL223MP40SCAP ALUM 22000UF 20% 10V RADIAL |
0 |
|
Datasheet |
SMG | Bulk | Obsolete | 22000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.48 A @ 120 Hz | 3.7584 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ESMG160ELL332MK25SCAP ALUM 3300UF 20% 16V RADIAL |
0 |
|
Datasheet |
SMG | Bulk | Discontinued at Digi-Key | 3300 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.655 A @ 120 Hz | 1.7874 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
ESMG160ELL472MN20SCAP ALUM 4700UF 20% 16V RADIAL |
0 |
|
Datasheet |
SMG | Bulk | Obsolete | 4700 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.96 A @ 120 Hz | 2.1168 A @ 100 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
ESMG160ELL682MN25SCAP ALUM 6800UF 20% 16V RADIAL |
0 |
|
Datasheet |
SMG | Bulk | Obsolete | 6800 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.33 A @ 120 Hz | 2.5164 A @ 100 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
ESMG160ELL822MN30SCAP ALUM 8200UF 20% 16V RADIAL |
0 |
|
Datasheet |
SMG | Bulk | Obsolete | 8200 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 2.7 A @ 100 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
ESMG160ELL103MMP1SCAP ALUM 10000UF 20% 16V RADIAL |
0 |
|
Datasheet |
SMG | Bulk | Discontinued at Digi-Key | 10000 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.92 A @ 120 Hz | 3.1536 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ESMG160ELL123MN40SCAP ALUM 12000UF 20% 16V RADIAL |
0 |
|
Datasheet |
SMG | Bulk | Obsolete | 12000 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 3.132 A @ 100 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
ESMG160ELL123MP35SCAP ALUM 12000UF 20% 16V RADIAL |
0 |
|
Datasheet |
SMG | Bulk | Obsolete | 12000 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 3.132 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.437" (36.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
