Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
860241081009CAP ALUM 220UF 20% 200V RADIAL |
277 |
|
Datasheet |
WCAP-AT1H | Cut Tape (CT) | Active | 220 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.175 A @ 120 Hz | 2.35 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
|
450HXH100MEPASN22X25CAP ALUM 100UF 20% 450V SNAP TH |
188 |
|
Datasheet |
HXH | Bulk | Active | 100 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 860 mA @ 120 Hz | 1.204 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EKMM451VSN121MA25SCAP ALUM 450V POLAR |
393 |
|
Datasheet |
KMM | Bulk | Active | 120 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 730 mA @ 120 Hz | 1.0439 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
450BHW82MSPA16X30CAP ALUM 450V POLAR |
199 |
|
Datasheet |
BHW | Bulk | Active | 82 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 670 mA @ 120 Hz | 1.474 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EGXF101ELL821MM40SCAP ALUM 820UF 20% 100V RADIAL |
127 |
|
Datasheet |
GXF | Bulk | Active | 820 µF | ±20% | 100 V | 29mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.046 A @ 120 Hz | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
EKXJ221ELL471MM50SCAP ALUM 470UF 20% 220V RADIAL |
403 |
|
Datasheet |
KXJ | Bulk | Active | 470 µF | ±20% | 220 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.785 A @ 120 Hz | 4.01625 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 2.028" (51.50mm) | - | Through Hole | |
|
|
EKMQ451VSN151MR25SCAP ALUM 450V POLAR |
400 |
|
Datasheet |
KMQ | Bulk | Active | 150 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | 853.2 mA @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EKMM201VSN102MQ50SCAP ALUM 1000UF 20% 200V SNAP TH |
398 |
|
Datasheet |
KMM | Bulk | Active | 1000 µF | ±20% | 200 V | 249mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 2.047" (52.00mm) | - | Through Hole | |
|
EKMT451VSN151MQ35SCAP ALUM 150UF 20% 450V SNAP TH |
400 |
|
Datasheet |
KMT | Bulk | Active | 150 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.31 A @ 120 Hz | 1.8733 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.476" (37.50mm) | - | Through Hole | |
|
EGPD250ELL103MM35HCAP ALUM 10000UF 20% 25V RADIAL |
243 |
|
Datasheet |
GPD | Bulk | Active | 10000 µF | ±20% | 25 V | 19mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 5.338 A @ 120 Hz | 6.28 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.437" (36.50mm) | - | Through Hole | |
|
EKMM451VSN221MQ45SCAP ALUM 220UF 20% 450V SNAP TH |
200 |
|
Datasheet |
KMM | Bulk | Active | 220 µF | ±20% | 450 V | 1.507Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.6016 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
400SXG220MEFCSN25X35CAP ALUM 220UF 20% 400V SNAP TH |
200 |
|
Datasheet |
SXG | Bulk | Active | 220 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.54 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

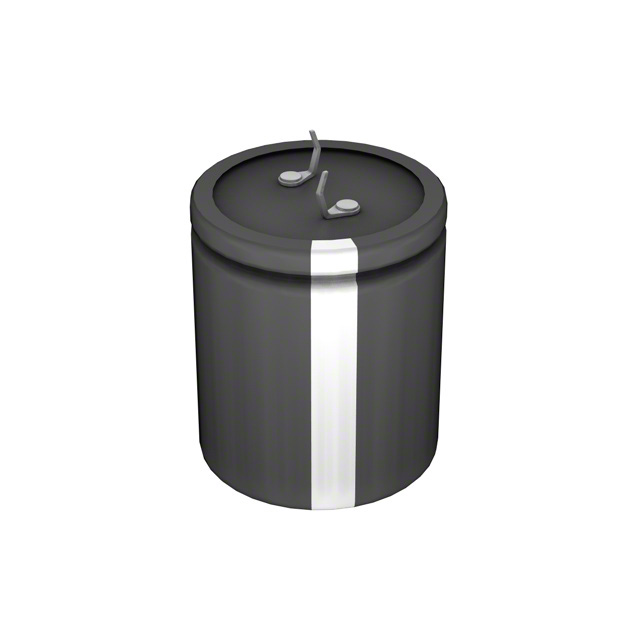

LP471M200E5P3CAP ALUM 470UF 20% 200V SNAP TH |
1,080 |
|
Datasheet |
LP | Bulk | Active | 470 µF | ±20% | 200 V | 540mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.143 A @ 120 Hz | 1.6002 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
B43509A2827M000CAP ALUM 820UF 20% 200V SNAP TH |
640 |
|
Datasheet |
B43509 | Bulk | Active | 820 µF | ±20% | 200 V | 120mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.11 A @ 100 Hz | - | 2.1 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ELG687M200AR4AACAP ALUM SNAP-IN 105C |
999 |
|
Datasheet |
ELG | Bulk | Active | 680 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.625 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ELXS451VSN820MP25SCAP ALUM 82UF 20% 450V SNAP TH |
128 |
|
Datasheet |
LXS | Bulk | Active | 82 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 915.2 mA @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.083" (27.50mm) | - | Through Hole | |
|
|
ELG477M250AR3AACAP ALUM SNAP-IN 105C |
1,000 |
|
Datasheet |
ELG | Bulk | Active | 470 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.25 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL211929479E3CAP ALUM 47UF 100V AXIAL TH |
500 |
|
Datasheet |
119 AHT-DIN | Tape & Reel (TR) | Active | 47 µF | -10%, +50% | 100 V | 2.7Ohm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 240 mA @ 100 Hz | - | 2 Ohms | - | 0.394" Dia x 1.181" L (10.00mm x 30.00mm) | - | - | Through Hole | |
|
|
AFK337M50H32VT-FCAP ALUM 330UF 20% 50V SMD |
397 |
|
Datasheet |
AFK_V | Tape & Reel (TR) | Active | 330 µF | ±20% | 50 V | 120mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 675 mA @ 120 Hz | - | 120 mOhms | - | 0.492" Dia (12.50mm) | 0.563" (14.30mm) | 0.531" L x 0.590" W (13.50mm x 15.00mm) | Surface Mount | |
|
EKMW451VSN221MP40SCAP ALUM 220UF 20% 450V SNAP TH |
400 |
|
Datasheet |
KMW | Bulk | Active | 220 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.15 A @ 120 Hz | 1.6445 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.673" (42.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
