Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECO-S2DA122EACAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 1200 µF | ±20% | 200 V | 166mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.22 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ECO-S2DA152EACAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 1500 µF | ±20% | 200 V | 144mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.5 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ECO-S2GA560AACAP ALUM 56UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 56 µF | ±20% | 400 V | 2.368Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 510 mA @ 120 Hz | 710 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ECO-S2GA560BACAP ALUM 56UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 56 µF | ±20% | 400 V | 2.368Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 510 mA @ 120 Hz | 714 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S2GA680AACAP ALUM 68UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 68 µF | ±20% | 400 V | 1.95Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 560 mA @ 120 Hz | 780 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ECO-S2GA680CACAP ALUM 68UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 68 µF | ±20% | 400 V | 1.95Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 560 mA @ 120 Hz | 784 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S2GA820AACAP ALUM 82UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 82 µF | ±20% | 400 V | 1.617Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 900 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ECO-S2GA820CACAP ALUM 82UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 82 µF | ±20% | 400 V | 1.617Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 896 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S2GA101BACAP ALUM 100UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 100 µF | ±20% | 400 V | 1.326Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 120 Hz | 966 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ECO-S2GA101CACAP ALUM 100UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 100 µF | ±20% | 400 V | 1.326Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 120 Hz | 966 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ECO-S2GA121BACAP ALUM 120UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 120 µF | ±20% | 400 V | 1.105Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.05 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ECO-S2GA121DACAP ALUM 120UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 120 µF | ±20% | 400 V | 1.105Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.05 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S2GA151BACAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 150 µF | ±20% | 400 V | 884mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 1.148 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

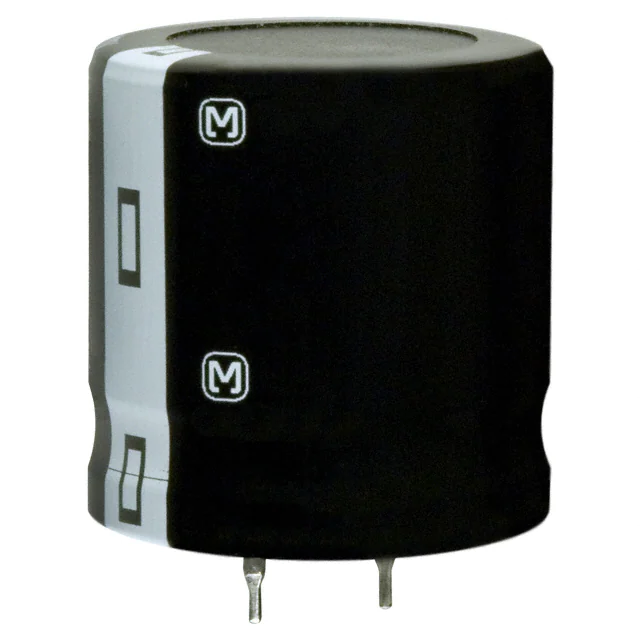

ECO-S2GA151DACAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 150 µF | ±20% | 400 V | 884mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 1.148 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ECO-S2GA181CACAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 180 µF | ±20% | 400 V | 737mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.33 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ECO-S2GA181EACAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 180 µF | ±20% | 400 V | 737mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.33 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ECO-S2GA221CACAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 220 µF | ±20% | 400 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.54 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ECO-S2GA221EACAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 220 µF | ±20% | 400 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.54 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ECO-S2GA271DACAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 270 µF | ±20% | 400 V | 491mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.68 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ECO-S2GA271EACAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 270 µF | ±20% | 400 V | 491mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.68 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole |
