Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
550C842T500FG0DCAP ALUM 8400UF 500V SCREW CHAS |
0 |
|
Datasheet |
550C | Bulk | Active | 8400 µF | -10%, +50% | 500 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.500" Dia (88.90mm) | 8.687" (220.65mm) | - | Chassis Mount | |
|
|
550C842T500FG2DCAP ALUM 8400UF 500V SCREW CHAS |
0 |
|
Datasheet |
550C | Bulk | Active | 8400 µF | -10%, +50% | 500 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.500" Dia (88.90mm) | 8.687" (220.65mm) | - | Chassis Mount | |
|
|
MAL210445153E3CAP ALUM 15000UF 20% 350V SCREW |
0 |
|
Datasheet |
104 PHL-ST | Bulk | Active | 15000 µF | ±20% | 350 V | 13mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25.6 A @ 100 Hz | - | 12 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.795" (223.40mm) | - | Chassis Mount | |
|
|
MAL210485153E3CAP ALUM 15000UF 20% 350V SCREW |
0 |
|
Datasheet |
104 PHL-ST | Bulk | Active | 15000 µF | ±20% | 350 V | 13mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25.6 A @ 100 Hz | - | 12 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.795" (223.40mm) | - | Chassis Mount | |
|
CGS105UGX8L6PHCAP ALUM 1F 20V SCREW CHAS MT |
0 |
|
Datasheet |
CGS | Bulk | Active | 1 F | -10%, +75% | 20 V | 3mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 41 A @ 120 Hz | 53.3 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 8.625" (219.08mm) | - | Chassis Mount | |
|
MLSG721M200EB1CCAP ALUM 720UF 20% 200V FLTPCK |
0 |
|
Datasheet |
Flatpack™- MLSG | Bulk | Active | 720 µF | ±20% | 200 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | 1.000" (25.40mm) | 3.000" L x 1.750" W (76.20mm x 44.45mm) | 0.500" (12.70mm) | - | Through Hole | |
|
MAL250079123E3CAP ALUM 12000UF 20% 500V SCREW |
0 |
|
- |
500 PGP-ST | Box | Active | 12000 µF | ±20% | 500 V | 20mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 23.1 A @ 100 Hz | 34.65 A @ 10 kHz | 18 mOhms | 1.252" (31.80mm) | 3.520" Dia (89.40mm) | 8.626" (219.10mm) | - | Chassis Mount | |
|
MAL250039123E3CAP ALUM 12000UF 20% 500V SCREW |
0 |
|
- |
500 PGP-ST | Box | Active | 12000 µF | ±20% | 500 V | 20mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 23.1 A @ 100 Hz | 34.65 A @ 10 kHz | 18 mOhms | 1.252" (31.80mm) | 3.520" Dia (89.40mm) | 8.626" (219.10mm) | - | Chassis Mount | |
|
|
CGS902T450X8LCAP ALUM 9000UF 450V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 9000 µF | -10%, +50% | 450 V | 17mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.2 A @ 120 Hz | 27.3 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 8.625" (219.08mm) | - | Chassis Mount | |
|

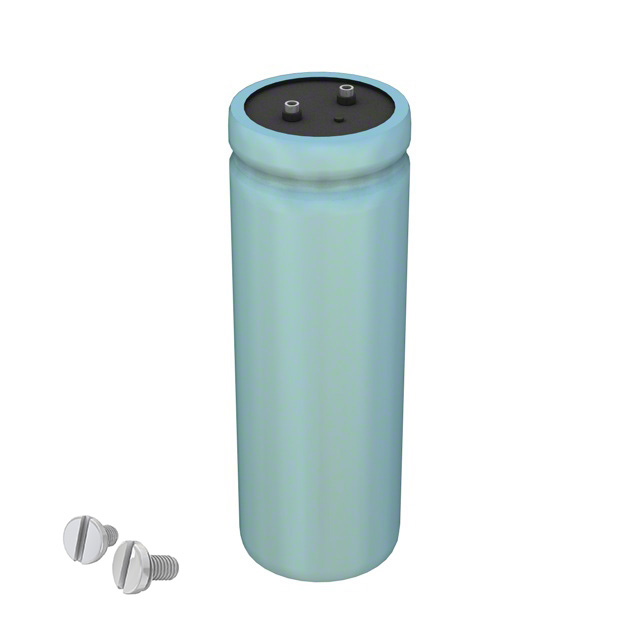

CGH223T250X8LCAP ALUM 22000UF 250V SCREW CHAS |
0 |
|
Datasheet |
CGH | Bulk | Active | 22000 µF | -10%, +50% | 250 V | 11.5mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.3 A @ 120 Hz | 27.429 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 8.625" (219.08mm) | - | Chassis Mount | |
|
|
CGS223T250X8LCAP ALUM 22000UF 250V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 22000 µF | -10%, +50% | 250 V | 10mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23.8 A @ 120 Hz | 35.7 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 8.625" (219.08mm) | - | Chassis Mount | |
|
|
CGS602T500X8LCAP ALUM 6000UF 500V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 6000 µF | -10%, +50% | 500 V | 18mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.7 A @ 120 Hz | 28.05 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 8.625" (219.08mm) | - | Chassis Mount | |
|
|
CGH692T500X8LCAP ALUM 6900UF 500V SCREW CHAS |
0 |
|
Datasheet |
CGH | Bulk | Active | 6900 µF | -10%, +50% | 500 V | 41mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.9 A @ 120 Hz | - | - | - | 3.000" Dia (76.20mm) | 8.625" (219.08mm) | - | Chassis Mount | |
|
ELBK350ELL472ALN3SCAP ALUM 4700UF 35V RADIAL TH |
23 |
|
Datasheet |
LBK | Bulk | Obsolete | 4700 µF | 0%, +30% | 35 V | 21mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.72 A @ 120 Hz | 3.2 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
ECE-A0JKG470CAP ALUM 47UF 20% 6.3V RADIAL TH |
0 |
|
Datasheet |
KG | Bulk | Obsolete | 47 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 70 mA @ 100 kHz | 5 Ohms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.276" (7.00mm) | - | Through Hole | |
|
|
ECE-B1JV331SCAP ALUM 330UF 20% 63V AXIAL TH |
0 |
|
- |
SU | Bulk | Obsolete | 330 µF | ±20% | 63 V | - | - | -40°C ~ 85°C | Polar | - | General Purpose | 450 mA @ 120 Hz | - | - | - | - | - | - | Through Hole | |
|
ECE-A1EV332SCAP ALUM 3300UF 20% 25V RADIAL |
0 |
|
- |
- | Bulk | Obsolete | 3300 µF | ±20% | 25 V | - | - | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
ECE-A1HKA0R1CAP ALUM 0.1UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
KA | Bulk | Obsolete | 0.1 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 1.7 mA @ 10 kHz | - | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.276" (7.00mm) | - | Through Hole | |
|
ECE-A1HKAR22CAP ALUM 0.22UF 20% 50V RADIAL |
0 |
|
Datasheet |
KA | Bulk | Obsolete | 0.22 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 3.4 mA @ 10 kHz | - | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.276" (7.00mm) | - | Through Hole | |
|
ECE-A1HKAR33CAP ALUM 0.33UF 20% 50V RADIAL |
0 |
|
Datasheet |
KA | Bulk | Obsolete | 0.33 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 5.1 mA @ 10 kHz | - | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.276" (7.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
